点击放大查看

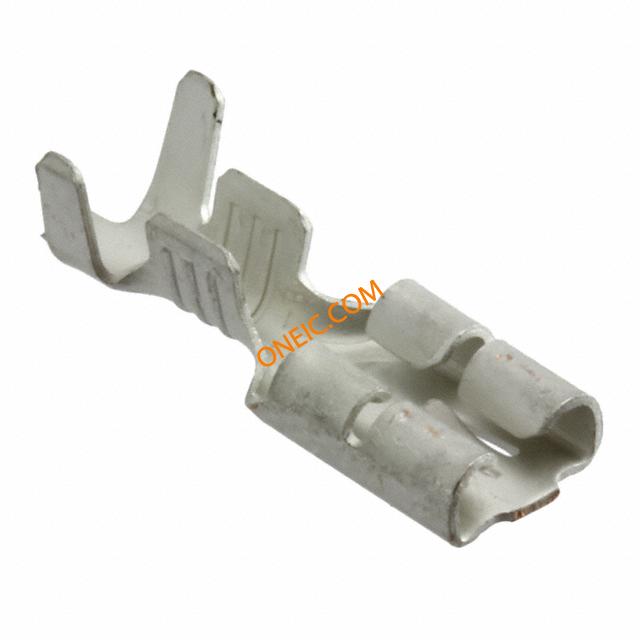

63606-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 14-18AWG F Tin Strip Terminals RCPT 187 F-F 18-14 FASTON Uninsulated Receptacles & Housings CONN RCPT 18-14AWG .187 TIN RCPT, 187 F-F 18-14 TPPHBZ RCPT, 187 F-F 18-14 TPPHBZ Search Keywords:Quick Connect/Disconnect Tabs and Receptacles, relay connectors, fast-on, AMPIP, Blade Receptacle, Blade Tab, Packard Style Tab, E-SPRING CONN QC RCPT 14-18AWG 0.187 FASTON 187 SERIES REC 18-14AWG TPPB |
| 分类 |
商业参数
| 产品 | Faston Terminals | 其他名称 | A111511CT |
| 标准包装规格 | 12,000 | 标准包装数量 | 24,000 |
| 工厂包装数量 | 12000 | ||
合规参数
| RoHS | RoHS Compliant | UL等级 | 已获认证 |
| UL列名 | Listed | 无铅定义 | Not relevant for lead free process |
| 认可国家 | 是 | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | Yes | ||
电气参数
| 核心类型 | Open | 最大频率 | Single |
| 开关功能 | 快速连接 | 连接器类型 - 电压输入 | Without |
机械参数
| 表面处理 | Tin | 材料（通用） | Brass |
| 包装方式 | Reel | 插片宽度 | 4.75 x 0.81 [.187 x .032], 6.35 x 0.81 [.250 x .032] |
| 电缆类型 | Stranded | 绝缘类型 | Non-Insulated |
| 插片长度 | 0.250" (6.35mm) | 导线线规 | 14-18 AWG |
| 端接方式 | Crimp | 安装类型 | Free Hanging (In-Line) |
| 插片厚度 | 0.032" (0.81mm) | 端子类型 | Standard |
| 电缆材料 | Stranded | 连接器类型 | Yes |
| 接触镀层 | Tin | 宽度（英寸） | .187 |
| 连接器样式 | Straight | 连接器用途 | Wire & Cable |
| 箔压接区域 | F-Crimp | 插入件材料 | 磷青铜 |
| 插入力 | Normal | 触头材料 | Phosphor Bronze |
| 总长度 | FASTON .187 | 包装数量 | Strip |
| 导线端接方式 | No | 绝缘高度 | Insulation Support |
| 端接样式 | 母端 | 适用端子尺寸 | 4.09 – 4.98 mm [ .161 – .196 in ] |
| 绝缘直径 | 4.09-4.98 [.161-.196] | 绝缘材料 - 类型 | No |
| 总厚度 | .3 mm [ .012 in ] | 法兰上方插针尺寸 | 4.75, 6.35 |
| 法兰下方引脚尺寸 | .81 mm [ .032 in ] | 线规或范围 - mm² | 0.80-2.00² [18-14] |
| 第二连接器安装特性 | No | 外径-未扩张 | 4.98 mm [ .196 in ] |
产品信息
| 备注 | With locking lance. | 连接器性别 | Female |
| 系列 | 187 | 制造商全称 | AMP |
| 产品子类型 | Receptacle | ||
