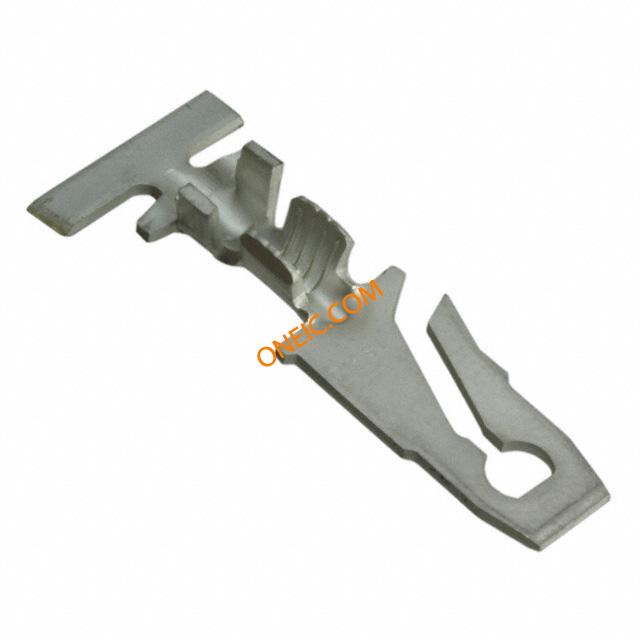

60794-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Hook Tongue Terminal 14-16AWG M 25.78mm 8.2mm Tin Reel Terminals TAB IS 16-14 Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON CONN TAB FASTON 14-16 AWG .250 Hook Tongue Terminal 14-16AWG M 25.78mm 8.2mm Tin Reel Product Highlights:TabTab Fit = 6.35 x 0.81 mmWire Range = 1.25-2.00² [16-14] mm [AWG]Wire/Cable Type = Regular WirePackaging Method = ReelSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, terminals and splices, Lighting Interconnection Products, wire to wire, fast-on FASTIN FASTON .250 TAB 16-14 AWG TPBR |
| 分类 |
商业参数
| 产品 | Faston Terminals | 其他名称 | A100695CT |
| 产品类别 | Terminals | 标准包装数量 | 3,000 |
| 工厂包装数量 | 3000 | ||
合规参数
| RoHS | RoHS Compliant | UL等级 | 已获认证 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
电气参数
| 核心类型 | Open | ||
机械参数
| 表面处理 | Tin | 长度 | 1.078 in |
| 材料（通用） | Brass | 包装方式 | Reel |
| 插片宽度 | 6.35 x 0.81 [.250 x .032] | 电缆类型 | Regular Wire |
| 绝缘类型 | Not Insulated | 导线线规 | 16-14 |
| 端接方式 | Crimp | 安装类型 | Wire |
| 螺柱/焊片尺寸 | 0.308 in x 0.248 in | 插片厚度 | 0.032" (0.81mm) |
| 端子类型 | Fishhook | 电缆材料 | Stranded |
| 连接器类型 | Yes | 接触镀层 | Tin |
| 线束直径 | 2 mm | 连接器用途 | Wire & Cable |
| 箔压接区域 | F-Crimp | 插入件材料 | 黄铜 |
| 插入力 | Normal | 触头材料 | Brass |
| 总长度 | FASTIN-FASTON .250 | 包装数量 | Reel |
| 导线端接方式 | No | 绝缘高度 | Without |
| 端接样式 | Crimp | 适用端子尺寸 | 2.29 – 3.3 mm [ .09 – .13 in ] |
| 绝缘直径 | 0.090" ~ 0.130" (2.29mm ~ 3.30mm) | 绝缘材料 - 类型 | No |
| 总厚度 | .32 mm [ .0126 in ] | 法兰上方插针尺寸 | 6.35 mm [ .25 in ] |
| 法兰下方引脚尺寸 | .81 mm [ .032 in ] | 接触镀层厚度 | 40 |
| 线规或范围 - mm² | 1.25-2.00² [16-14] | 外径-未扩张 | 3.3 mm [ .13 in ] |
产品信息
| 备注 | Multiple connection type with 2 pairs. | 连接器性别 | Male |
| 系列 | 250 | 产品子类型 | Tab |
