点击放大查看

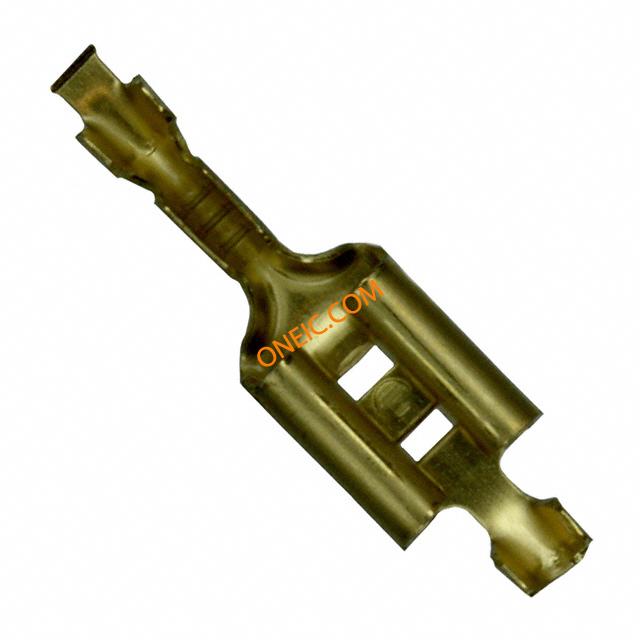

60573-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 20-24AWG RCP 14.99mm 5.59mm Strip Terminals 24-20 AWG .187 RCPT FASTON Uninsulated Receptacles & Housings CONN RECEPT FAST 20-24AWG .187 Quick Disconnect Terminal 20-24AWG RCP 14.99mm 5.59mm Strip Product Highlights:ReceptacleTab Fit = 4.75 x 0.51 mmBoard Mount = NoReceptacle Style = StraightInsulation SupportSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, relay connectors, fast-on, AMPIP, Blade Receptacle, Blade Tab, Packard Style Tab, E-SPRING FASTON .187 RECEPTACLE 24-20 AWG BR |
| 分类 |
商业参数
| 产品 | Faston Terminals | 产品类别 | Terminals |
| 标准包装数量 | 20,000 | 工厂包装数量 | 20000 |
合规参数
| RoHS | RoHS Compliant | UL等级 | 已获认证 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
电气参数
| 核心类型 | Open | 最大频率 | Single |
| 开关功能 | 快速连接 | 连接器类型 - 电压输入 | Without |
机械参数
| 表面处理 | None | 长度 | 0.59 in |
| 材料（通用） | Brass | 包装方式 | Reel |
| 插片宽度 | 4.75 x 0.51 [.187 x .020] | 电缆类型 | Stranded |
| 绝缘类型 | Not Insulated | 插片长度 | 0.250" (6.35mm) |
| 导线线规 | 24-20 | 端接方式 | Crimp |
| 安装类型 | Wire | 螺柱/焊片尺寸 | 0.221 in x 0.25 in |
| 插片厚度 | 0.020" (0.51mm) | 端子类型 | Standard |
| 电缆材料 | Stranded | 连接器类型 | Yes |
| 接触镀层 | Tin | 线束直径 | 0.6 mm |
| 连接器样式 | Straight | 连接器用途 | Wire & Cable |
| 箔压接区域 | F-Crimp | 插入件材料 | 黄铜 |
| 插入力 | Normal | 厚度（最大） | 0.30 [0.012] |
| 触头材料 | Brass | 总长度 | Premier |
| 包装数量 | Strip | 导线端接方式 | No |
| 绝缘高度 | Insulation Support | 端接样式 | Crimp |
| 适用端子尺寸 | 1.02 – 1.78 mm [ .04 – .07 in ] | 绝缘直径 | 1.02-1.78 [.040-.070] |
| 绝缘材料 - 类型 | No | 总厚度 | .3 mm [ .012 in ] |
| 法兰上方插针尺寸 | 4.75 mm [ .187 in ] | 法兰下方引脚尺寸 | .51 mm [ .02 in ] |
| 线规或范围 - mm² | 0.20-0.60² [24-20] | 第二连接器安装特性 | No |
| 外径-未扩张 | 1.78 mm [ .07 in ] | ||
产品信息
| 备注 | UL listed and CSA Certified for 22-20 AWG. | 连接器性别 | Female |
| 系列 | 187 | 制造商全称 | AMP |
| 产品子类型 | Receptacle | ||
