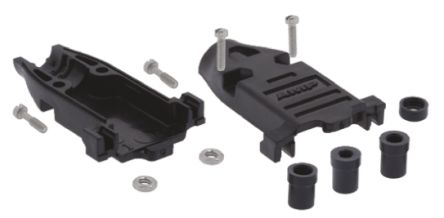

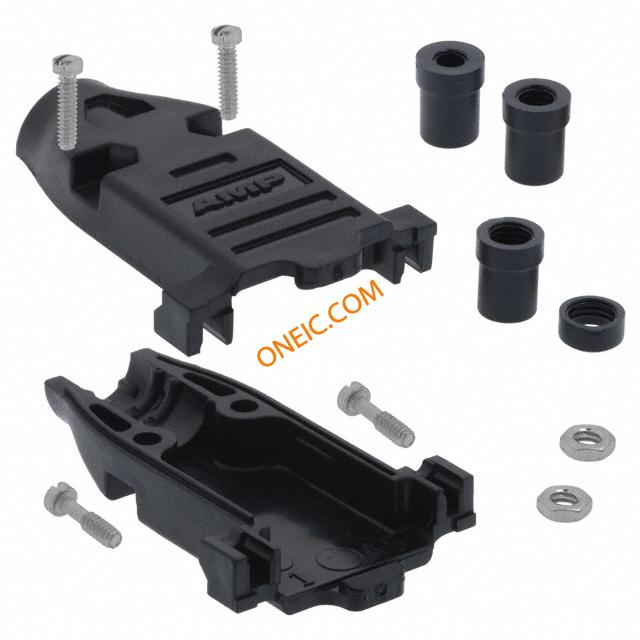

5748678-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories D-Sub Backshell/Cable Clamp Acrylonitrile Butadiene-Styrene Black Individual Kit D-Sub Backshells DSUB ACC: E CABLE CLAMP Cable Clamps CONN BACKSHELL DB9 PLASTIC BLACK AMPLIMITE HD-20 backshell kit, size 1 Backshell/Cable Clamp 180� 1 Shell Size Acrylonitrile Butadiene Styrene Individual Backshell/Cable Clamp 180° 1 Shell Size Acrylonitrile Butadiene Styrene Individual Backshell/Cable Clamp 180° 1 Shell Size Acrylonitrile Butadiene Styrene Individual Product Highlights:Backshell/Cable ClampCable Clamp Type = Two-Piece RFI/EMI Shield180° Cable Exit AngleCable Insulation Diameter = 4.70 - 8.13 mmShell Size = 1Search Keywords:AMPLIMITE, Subminiature D, input/output, box to box, d-sub, d sub, dsub BACKSHELL, D, PLASTIC, 9WAY Hood;D-SUB;9Pos;Straight;AMP;ABS;0.185-0.320In.CblDia;EMI/RFIShield TE Connectivity 9 路 直 ABS D-sub 连接器底壳 2 PC PLST CBL CLMP KIT |
| 分类 |
商业参数
| 交货时间 | 56 Days | 子类别 | Backshells |
| 产品类别 | D-Sub Backshells | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 防护类型 | Clamp,Cable | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
机械参数
| 颜色 | Black | 深度 | 48.51 mm |
| 宽度 | 0.57" | 高度 | 1.91" |
| 长度 | 1.215" | 重量 | 0.01 |
| 材料（通用） | ABS | 包装方式 | Bulk |
| 屏蔽 | Unshielded | 出线方向 | 180° |
| 电缆类型 | Round | 外壳尺寸 | 1 |
| 屏蔽类型 | No | 螺纹尺寸 | 4-40 |
| 安装类型 | Straight | 外壳镀层 | None |
| 电缆直径 | 0.185-0.320In. | 电缆材料 | ABS |
| 螺丝材料 | :Steel | 外壳材料（壳体） | Acrylonitrile Butadiene Styrene (ABS) |
| 本体材料 | :ABS (Acrylonitrile Butadiene Styrene) | 壳体材料 | ABS |
| 总长度 | 30.86 mm | 包装数量 | Individual Kit |
| 电缆端接方式 | Two-Piece RFI/EMI Shield | 连接器颜色 | :Black |
| 绝缘直径 | 4.70 â 8.13 [0.185 â 0.320] | 位数 | 9 |
| 外壳尺寸-插件 | :1 | 衬套/护套类型 | With |
| 螺钉材料 - 镀层 | :Zinc | 后壳材料及镀层 | ABS |
产品信息
| 备注 | Jackscrews must be purchased separately. | 类型 | Backshell/Cable Clamp |
| 系列 | :AMPLIMITE | 产品特性 | Assembly Kit, Mating Screws 4-40 |
| 硬件配件 | Assembly Hardware, Grommets | 制造商全称 | AMP |
| 产品子类型 | Backshell/Cable Clamp | 附件类型 | Two Piece Backshell |
| 端口数 | 4 | 射频系列/标准 | 5748678 |
| 适用产品/相关产品 | 748678-1 | ||
