点击放大查看

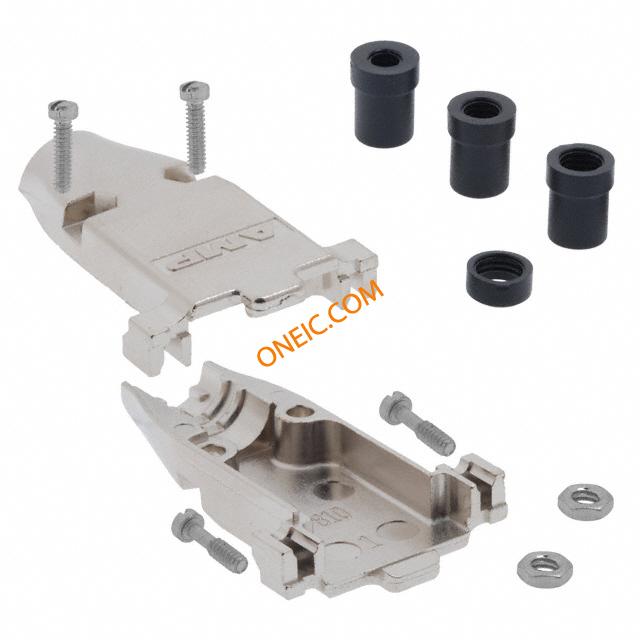

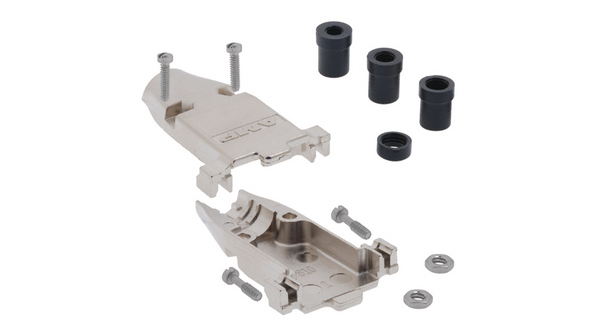

5748676-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories 9 Pos Backshell/Cable Clamp Zinc Alloy Nickel Over Copper Shell Size 1 Individual CONN ACC CLAMP DIE-CAST D-Sub Backshells KIT W/GROMMETS 9P .32 Cable Clamps CONN BACKSHELL DB9 DIE CAST 9 Way Shielded Str D Hood, 4-40U Screws 5748676-1 Backshell/Cable Clamp 180° 1 Shell Size Bright Nickel Over Copper Zinc Alloy Individual Kit Backshell/Cable Clamp 180° 1 Shell Size Bright Nickel Over Copper Zinc Alloy Individual Kit Product Highlights:Backshell/Cable ClampCable Clamp Type = Two-Piece RFI/EMI Shield180° Cable Exit AngleCable Insulation Diameter = 4.70 - 8.13 mmNumber of Positions = 9Search Keywords:AMPLIMITE, Subminiature D, input/output, box to box, d-sub, d sub, dsub D-SUB BACKSHELL, DE, DIECAST, 9WAY Hood;D-SUB;9Pos;Straight;AMP;Die-CastMetal;0.185-0.320In.CblDia;EMI/RFIShield Enclosure: for D-Sub connectors; D-Sub HD 15pin, D-sub 9pin DSub 9 Position Die Cast Hood With Hrdwr & Grommets Cable Opening .185 to .320 RoHS D-Sub metal hood 9P, 5748676-1, TE Connectivity TE Connectivity D-sub 连接器底壳 DIE CAST CBL CLMP KIT,SZ 1 |
| 分类 |
商业参数
| 交货时间 | 28 Days | 子类别 | Backshells |
| 产品类别 | D-Sub Backshells | 标准包装数量 | 1 |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 连接器类型 - 电压输入 | D-Sub HD 15pin, D-sub 9pin | ||
机械参数
| 颜色 | Silver | 重量 | 0.02 |
| 镀层 | Nickel over Copper | 材料（通用） | Metal, Zinc Alloy |
| 包装方式 | Bulk | 屏蔽 | Shielded |
| 出线方向 | 180° | 电缆类型 | Round |
| 外壳尺寸 | 1 | 方向 | straight |
| 闭合力 | screwed | 外壳镀层 | Bright Nickel over Copper |
| 电缆直径 | 0.185-0.320In. | 电缆端类型 | Straight |
| 螺丝材料 | :Steel | 外壳材料（壳体） | Zinc Die Cast |
| 锁定特性 | knurled screws | 本体材料 | :Zinc Alloy |
| 包装数量 | 1 | 连接器颜色 | :Nickel |
| 位数 | 9 | 外壳尺寸-插件 | :1 |
| 电缆对数 | 1 | 供应商器件封装 | for D-Sub connectors |
| 螺钉材料 - 镀层 | :Zinc | 后壳材料及镀层 | Die-CastMetal |
| 外径-未扩张 | :8.13mm | ||
产品信息
| SPG | 1 | 类型 | Backshell/Cable Clamp |
| 系列 | :AMPLIMITE | 产品特性 | Assembly Kit, Mating Screws 4-40 |
| 硬件配件 | Assembly Hardware, Grommets | 套件内容 | complete shell |
| 制造商全称 | AMP | 附件类型 | Two Piece Backshell |
| 单元数量 | 1 | 行业别名 | 5-748676-1 |
| 射频系列/标准 | 748676 | 适用产品/相关产品 | 748676-1 |
