5745652-2
| 制造商 | TE Connectivity Ltd. |

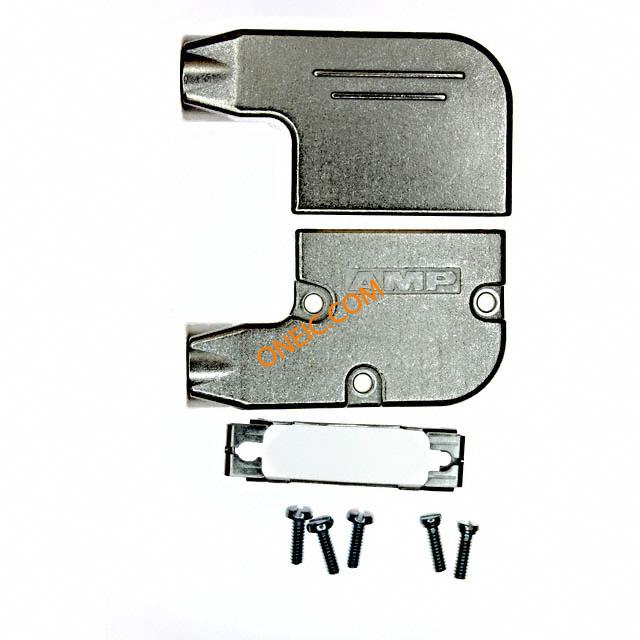

| 描述 | DIECAST STRAIN RELIEF KIT,SZ 2 D-Sub Backshells DSUB ACC: A CABLE CLAMP SHLD Cable Clamps CONN BACKSHELL DB15 90DEG METAL AMPLIMITE shielded backshell kit, size 2 Backshell/Cable Clamp 90� 2 Shell Size Bright Nickel Over Copper Zinc Alloy Individual Backshell/Cable Clamp 90° 2 Shell Size Bright Nickel Over Copper Zinc Alloy Individual Backshell/Cable Clamp 90° 2 Shell Size Bright Nickel Over Copper Zinc Alloy Individual Product Highlights:Backshell/Cable ClampCable Clamp Type = Two-Piece RFI/EMI Shield90° Cable Exit AngleCable Insulation Diameter = 9.53 mmShell Size = 2Search Keywords:AMPLIMITE, Subminiature D, input/output, box to box, d-sub, d sub, dsub BACKSHELL, D, DIECAST, 15WAY Hood;D-Sub;15Pos;90DegExit;AMP;Die-CastMetal;0.375In.CblDia;EMI/RFIShield TE Connectivity 15 路 直角 银色 锌合金 D-sub 连接器底壳 |
| 分类 |
商业参数
| 交货时间 | 28 Days | 子类别 | Backshells |
| 产品类别 | D-Sub Backshells | 标准包装数量 | 1 |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
机械参数
| 颜色 | Silver | 深度 | 32.63 mm |
| 高度 | 32.8 mm | 重量 | 0.084 |
| 镀层 | Nickel over Copper | 材料（通用） | Stainless steel |
| 包装方式 | Bulk | 屏蔽 | Shielded |
| 出线方向 | 90° | 电缆类型 | Round |
| 外壳尺寸 | 2 | 屏蔽类型 | Yes |
| 螺纹尺寸 | 4-40 | 安装类型 | Right Angle |
| 外壳镀层 | Bright Nickel over Copper | 电缆直径 | 9.65 mm |
| 电缆端类型 | 90 deg | 电缆材料 | Die Cast |
| 螺丝材料 | :Steel | 外壳材料（壳体） | Zinc Die Cast |
| 本体材料 | :Zinc Alloy | 板侧间距 | With |
| 壳体材料 | Die Cast Zinc Alloy | 总长度 | 58.7 mm |
| 包装数量 | Individual Kit | 电缆端接方式 | Two-Piece RFI/EMI Shield |
| 连接器颜色 | :Nickel | 绝缘直径 | 9.53 [0.375] |
| 位数 | 15 | 外壳尺寸-插件 | :2 |
| 衬套/护套类型 | Without | 电缆对数 | 1 |
| 螺钉材料 - 镀层 | :Zinc | 后壳材料及镀层 | Die-CastMetal |
| 外径-未扩张 | :6.09mm | ||
产品信息
| 备注 | Each kits is comprised of a two-piece shield with three pan head screws and a s | 类型 | EMI/RFI Shielded Backshell |
| 系列 | :AMPLIMITE | 产品特性 | Assembly Kit, Slide Latch |
| 硬件配件 | Assembly Hardware | CAD图纸 | 3D CAD Model |
| 制造商全称 | AMP | 产品子类型 | Backshell/Cable Clamp |
| 附件类型 | Two Piece Backshell | ||
环境参数
| 工作温度 | -55C to 105C | ||
文档与媒体
相关型号
