点击放大查看

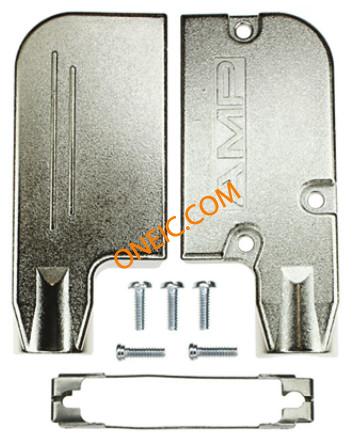

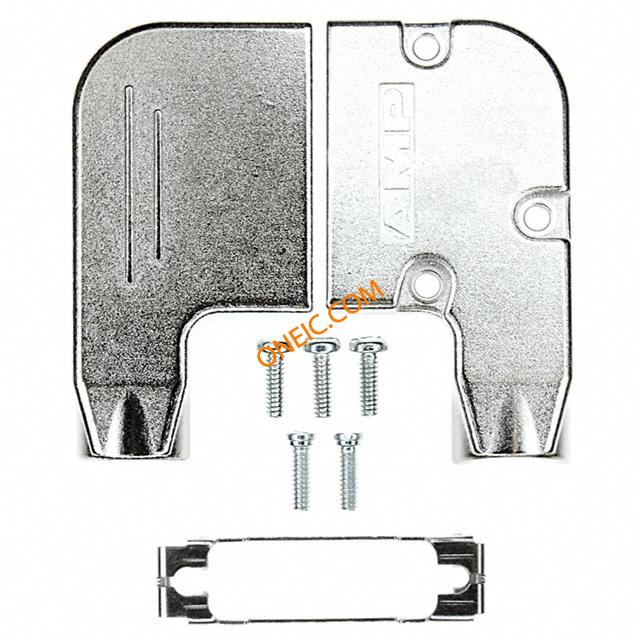

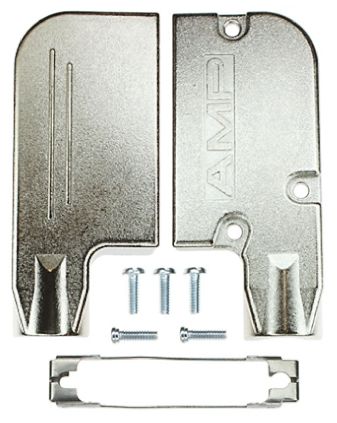

5745652-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | DIECAST STRAIN RELIEF KIT,SZ 2 D-Sub Backshells DSUB ACC: A CABLE CLAMP SHLD Cable Clamps CONN BACKSHELL DB15 90DEG METAL AMPLIMITE shielded backshell kit, size 2 Cable Accessories Cable Clamp Backshell/Cable Clamp 90° 2 Shell Size Bright Nickel Over Copper Zinc Alloy Individual Kit Backshell/Cable Clamp 90° 2 Shell Size Bright Nickel Over Copper Zinc Alloy Individual Kit Product Highlights:Backshell/Cable ClampCable Clamp Type = Two-Piece RFI/EMI Shield90° Cable Exit AngleCable Insulation Diameter = 10.92 mmShell Size = 2Search Keywords:AMPLIMITE, Subminiature D, input/output, box to box, d-sub, d sub, dsub CABLE CLAMP KIT, SIZE 2, ZINC ALLOY Hood;D-Sub;15Pos;90DegExit;AMP;Die-CastMetal;0.430In.CblDia;EMI/RFIShield TE Connectivity 9 路 直 D-sub 连接器底壳 , 带应力消除 |
| 分类 |
商业参数
| 交货时间 | 28 Days | 子类别 | Backshells |
| 产品类别 | D-Sub Backshells | 标准包装数量 | 1 |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85366910 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
机械参数
| 颜色 | Silver | 重量 | 0.082 |
| 镀层 | Nickel over Copper | 材料（通用） | Stainless steel |
| 包装方式 | Bulk | 屏蔽 | Shielded |
| 出线方向 | 90° | 电缆类型 | Round |
| 外壳尺寸 | 2 | 屏蔽类型 | Yes |
| 螺纹尺寸 | 4-40 | 安装类型 | Straight |
| 外壳镀层 | Bright Nickel over Copper | 电缆直径 | 10.92 mm |
| 电缆端类型 | 90 deg | 电缆材料 | Die Cast |
| 外壳材料（壳体） | Zinc Die Cast | 本体材料 | :Zinc Alloy |
| 板侧间距 | With | 包装数量 | Individual Kit |
| 电缆端接方式 | Two-Piece RFI/EMI Shield | 触点数 | 9 |
| 绝缘直径 | 10.92 [0.430] | 位数 | 15 |
| 外壳尺寸-插件 | :DA | 衬套/护套类型 | Without |
| 电缆对数 | 1 | 外部壳体材料 | :Zinc Alloy |
| 后壳材料及镀层 | Die-CastMetal | ||
产品信息
| 备注 | Each kits is comprised of a two-piece shield with three pan head screws and a s | 类型 | EMI/RFI Shielded Backshell |
| 系列 | :AMPLIMITE | 产品特性 | Assembly Kit, Slide Latch |
| 硬件配件 | Assembly Hardware | 制造商全称 | AMP |
| 产品子类型 | Backshell/Cable Clamp | 附件类型 | Two Piece Backshell |
| 适用产品/相关产品 | 745652-1 | ||
