点击放大查看

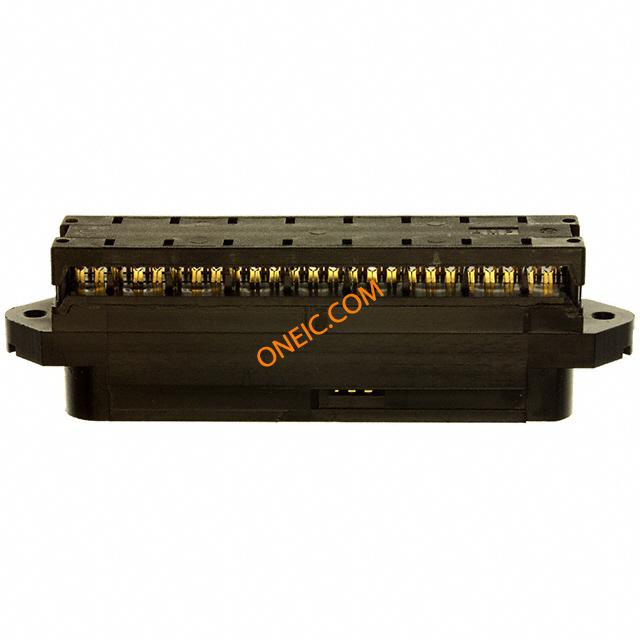

553602-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn SCSI PL 50 POS 1.27mm IDT RA Cable Mount 50 Terminal 1 Port Tray 2.16 [.085] IDC Connectors 50 PIN CHAMP LATCH PLUG-SCREW I/O Connectors PLUG 50P SCREW LOCK low profile plastic Conn SCSI PL 50 POS 1.27mm IDT RA Cable Mount 50 Terminal 1 Port Tray Product Highlights:Connector50 PositionsProduct Category = ConnectorsPlugNot ShieldedSearch Keywords:self-extinguishing housing, integral latching system, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, discrete wire, AMPHENOL, Centronics MINI D RIBBON CONN, PLUG, 50POS, IDC/IDT Connector,IDC;50-PinPlug;Unshielded;4-40Holes;Low-Profile;RoHS PLUG ASSY,50 POSN,SCR LK,L PF |
| 分类 |
商业参数
| 交货时间 | 154 Days | 子类别 | Connector SCSI |
| 产品类别 | Connectors | 标准包装数量 | Trays |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
机械参数
| 颜色 | Black | 间距 | 1.27 mm |
| 重量 | 0.014 | 包装方式 | Tray |
| 出线方向 | LowProfile | 电缆类型 | Ribbon Cable |
| 屏蔽类型 | No | 端接方式 | IDT |
| 第二连接器 | With | 安装类型 | Cable Mount |
| 行程角度 | Straight | 连接器类型 | Plug |
| 接触镀层 | Gold Flash over Palladium Nickel over Nickel, Gold over Nickel | 法兰特征 | Insert, Threaded (4-40) |
| 安装样式 | Cable | 排数 | 2 |
| 连接器样式 | Center Strip Contacts | 锁定特性 | Screwlocks |
| 外形（宽 x 高） | Low | 触头材料 | Copper Alloy |

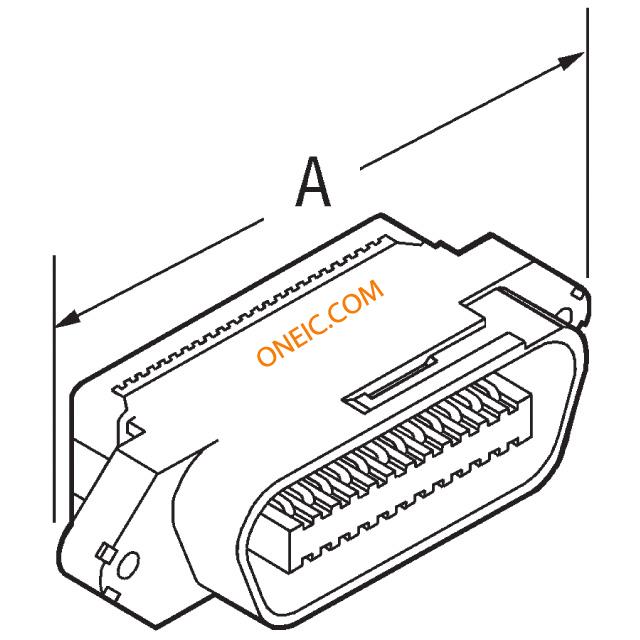

| 壳体材料 | Thermoplastic | 总长度 | 3.28" |
| 包装数量 | Tray | 面板安装类型 | With |
| 主要材料 | Industrial | 插针孔直径 | 0.85" |
| 端接样式 | IDC | 触点数 | 50 |
| 接触件端接 | :IDC / IDT | 位数 | 50 |
| 排距 - 配合 | 1.27 [0.050] | 接触镀层厚度 | 30µin (0.76µm) |
| 第一连接器安装类型 | :Cable | ||
产品信息
| 类型 | SCSI | 连接器性别 | PL |
| 系列 | :Champ | 产品特性 | IDC Connectors |
| 制造商全称 | CHAMP-LATCH | 产品子类型 | Connector |
