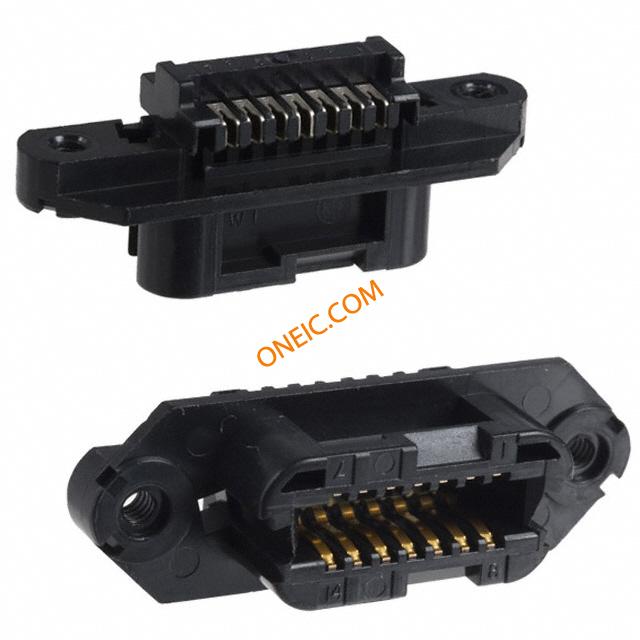

552312-1

点击放大查看

552312-1

制造商
TE Connectivity Ltd.
描述Conn IEEE 488 RCP 14 POS 2.16mm IDT RA Cable Mount 14Terminal 1Port Tray 2.16 [.085] IDC Connectors ASSY, RCPT, 14 POS, B SLOT CHAMP-LOK IDC Receptacle B Slot 14P I/O Connectors RECPT 14P 24-26 AWG Conn IEEE 488 RCP 14 POS 2.16mm IDT RA Cable Mount 14 Terminal 1 Port Tray Conn IEEE 488 RCP 14 POS 2.16mm IDT RA Cable Mount 14 Terminal 1 Port Tray Product Highlights:ConnectorNumber of Positions = 14Standard ProfileReceptacleNot ShieldedSearch Keywords:self-extinguishing housing, integral latching system, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, discrete wire, AMPHENOL, Centronics CHAMPIDCConnector;ScrewLockReceptacle;14Position
分类
连接器解决方案圆形连接器工业圆形连接器

商业参数

交货时间98 Days子类别Connector Interface
产品类别Connectors标准包装数量Trays
工厂包装数量100

合规参数

RoHSLead free / RoHS Compliant无铅定义Not relevant for lead free process
RoHS/ELV合规状态RoHS compliant, ELV compliant

电气参数

连接器阻抗螺钉锁, 螺钉锁, 释放锁

机械参数

颜色Black间距2.16 mm
长度1.75in包装方式Tray
屏蔽否厚度Thick
壳体颜色黑色电缆类型7 Strand, Solid
导线线规26-24AWG(Solid),24AWG(Stranded)铜缆类型B
屏蔽类型No端接方式IDC
螺纹尺寸4-40 UNC 2B第二连接器With
外壳颜色Blue安装类型Cable Mount
行程角度Straight连接器类型Receptacle
接触镀层Gold (30) over Nickel (50), Gold Flash over Palladium Nickel over Nickel法兰特征Insert, Threaded (4-40)
安装样式Cable排数2
连接器样式RS插入件材料铜合金
锁定特性Bail Lock, Screwlocks外形（宽 x 高）Standard
触头材料Copper Alloy壳体材料Thermoplastic
总长度1.75"包装数量Tray
面板安装类型Without主要材料Industrial
插针孔直径0.85"端接样式IDC
线规 - 端部24触点数14
绝缘直径1.14 [.045] Max.位数14
外壳材料及表面处理蓝色接触镀层厚度30µin (0.76µm)
线规或范围 - AWG26 – 24线规或范围 - mm²0.20² [24]

产品信息

类型IEEE 488连接器性别RCP
系列CHAMP-LOK产品特性IDC Connectors
制造商全称CHAMP-LOK产品子类型Connector

文档与媒体

552312-1?RQPN=552312-1
TE.Connect?C=1&PN=552312-1&M=BYPN&LG=1&I=13

相关型号

230238-1

230238-1

te connectivity / amp

Assembly Tools, Extractor Tool Hand Tools EXTRACTOR CONTACT EXTRACTION TOOL EXTRACTOR Extraction Tool Body Ma

¥81.0000
详情
552282-1

552282-1

te connectivity / amp

Conn IEEE 488 PL 14 POS 2.16mm IDT RA Cable Mount 14Terminal 1Port Tray 2.16 [.085] IDC Connectors ASSY, PLUG, 14 POS, B SLOT I/O Connectors PLUG 14P SCREW LOCK Conn IEEE 488 PL 14 POS 2.16mm IDT RA Cable Mount 14 Terminal 1 Port Tray Conn IEEE 488 PL 14 POS 2.16mm IDT RA Cable Mount 14 Terminal 1 Port Tray Product Highlights:ConnectorNumber of Positions = 14PlugNot ShieldedWithout Panel AttachmentSearch Keywords:self-extinguishing housing, integral latching system, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, discrete wire, AMPHENOL, Centronics MINI D RIBBON CONN, PLUG, 14POS, IDC/IDT CHAMPIDCConnector;Plug,14Position;ScrewLock TE Connectivity CHAMP-LOK 系列 14路 2.16mm节距 公 IDC 连接器 , 电缆安装

¥19.5120
详情
229378-1

229378-1

te connectivity / amp

Hand Tool Assembly And Die Assembly Hand Tools ASSY MI-1TOOL 14-50P ASSY, MI-1 TOOL,STD 14-50 POSN Assy, MI-1 Tool,Std 14-50 Posn Standard 14-50 Position MI-1 Assembly Tool

¥15255.4320
详情
229384-1

229384-1

te connectivity / amp

Insertion / Extraction Tool Types, Standard Extraction Tool Hand Tools T-HANDLE INSERTION T-HANDLE WIRE INSERTION TOOL Insertion Tool, T-Grip INSERTION,HAND,T-GRIPFORCHAMPCONNECTORS Insertion tool, 229384-1, TE Connectivity

¥67.9680
详情

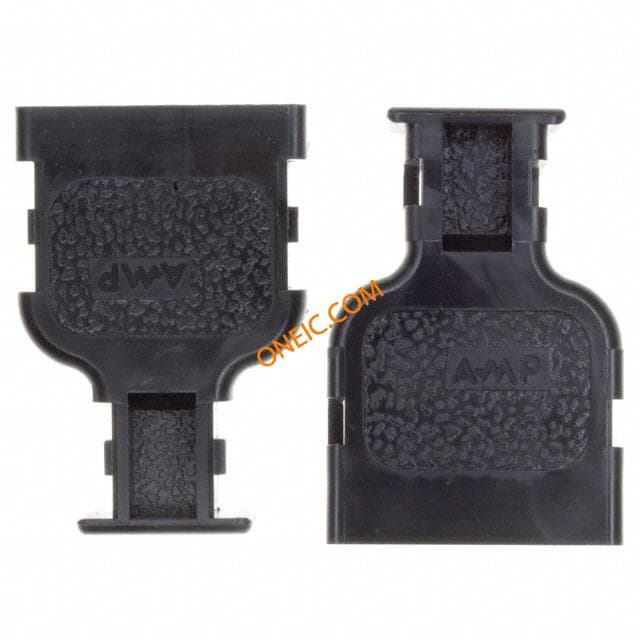

2-552079-1
