点击放大查看

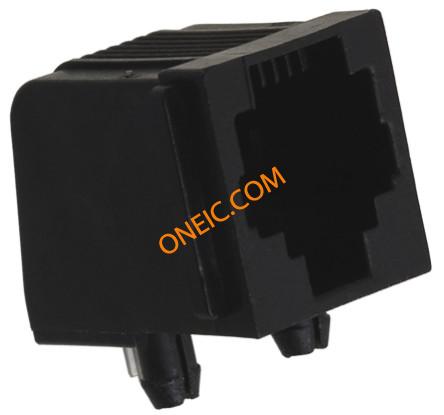

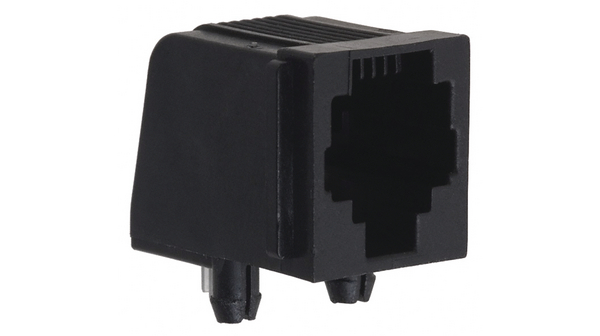

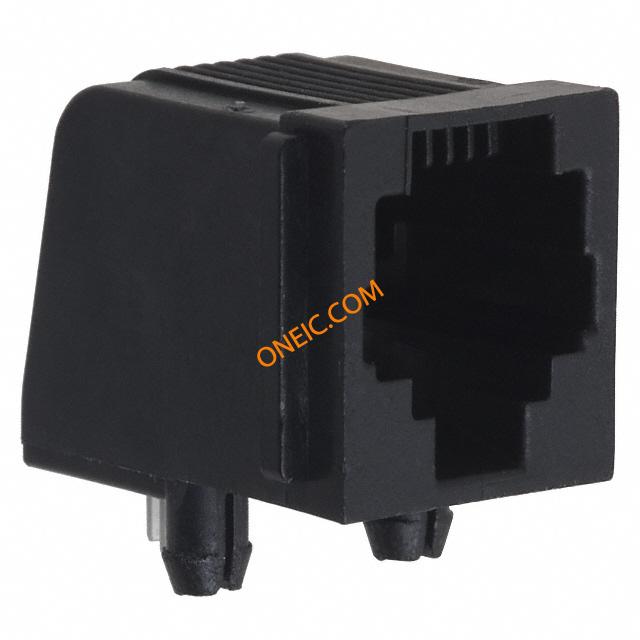

5520250-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn RJ-14 F 6 POS 2.54mm Solder RA Thru-Hole 4 Terminal 1 Port Tray Cat 3 Ethernet & Telecom Connectors 6/4 SIDE ENTRY PCB Mounted Jacks - Single Port, Multi-port and Stacked CONN MOD JACK R/A 6P4C Cat 3 RJ14 PCB right angle modular jack Modular Connectors / Ethernet Connectors 6/4 SIDE ENTRY Conn RJ-14 F 6 POS 2.54mm Solder RA Thru-Hole 4 Terminal 1 Port Tray Cat 3 Product Highlights:JackSingle Port Configuration1 x 1 Jack ConfigurationJack Type = RJ14Number of Positions = 6Search Keywords:FCC Part 68, REA PE-76, UL 1863, Communication Circuit Accessories, near end crosstalk (NEXT), EIA/TIA 568A, modular jacks, phone jacks, input/output, box to box, pcb mounted jacks, VAO JACK, MODULAR, WITH PANEL STOP, 6/4 Jack;PCBMountedJack;4;Polyester(PBT);PhosphorBronze;0.638in. Jack, 6/4, PCB installation 90°, 5520250-2, TE Connectivity MJ,R/A,6P/4C,PNL STOPS,TRAY |
| 分类 |
商业参数
| 产品 | Telecom & Ethernet Connectors | 零件号别名 | AMP-0-5520250-2 CJ8415-000 |
| 产品类别 | Ethernet & Telecom Connectors | 标准包装数量 | Trays |
| 工厂包装数量 | 152 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | 认证机构 | UL,CSA |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94 V-0 |
电气参数
| LED | Without | 额定电压 | 150 V |
| 接触电阻 | 30 mohm | 最大额定电流 | 1.5 A |
| 最小供电电压 | 150VAC | 连接器类型 - 电压输入 | Cat3 |
机械参数
| 颜色 | Black | 深度 | 20.96mm |
| 间距 | 2.54 mm | 宽度 | 15.88mm |
| 高度 | 16.13 mm | 长度 | 16.13mm |
| 重量 | 0.002 | LED颜色 | Does Not Contain LED |
| 锁定类型 | Standard | 包装方式 | Tray |
| 屏蔽 | Unshielded | 方向 | 90° Angle (Right) |
| 屏蔽类型 | No | 端接方式 | Solder |
| 外壳颜色 | Black | 反向插孔 | No |
| 安装类型 | Through Hole | 卡扣方向（或“接线片方向”） | Down |
| 行程角度 | Right | 连接器类型 | RJ14 |
| 接触镀层 | Gold | 法兰特征 | No |
| 接地类型 | Without | 安装样式 | Through Hole |
| 排数 | 1 | 电路板厚度 | 1.57 [0.062] |
| 高度（英寸） | 16.13 [0.635] | 外形（宽 x 高） | Standard |
| 触头材料 | Phosphor Bronze | 壳体材料 | Polybutylene Terephthalate (PBT) |
| 总长度 | 15.88 mm | 包装数量 | Tray |
| 面板安装类型 | With | 主要材料 | Modular |
| 端接样式 | Solder | 触点数 | 6 |
| 接触件端接 | :Through Hole Right Angle | 位数 | 6 |
| 电缆未暴露长度 | 3.80 [0.150] | 接触镀层厚度 | 50µin (1.27µm) |
| 每排/每行位置数 | 6P/6C | ||
产品信息
| 工作模式 | Single | 类型 | RJ-14 |
| 连接器性别 | F | 系列 | Single Port Modular Jack |
| 产品特性 | Board Lock, Panel Stops | 端口样式 | Single |
| USOC 编码 | RJ14 | 性能 | Cat3 |
| 编码、键控 | No | 产品子类型 | Jack |
| 规格说明 | RJ14 | 类别编号 | Cat 3 |
| 端口数 | 1 | 插孔配置 | 1 x 1 |
| 射频系列/标准 | 5520250 | 性能类别 | Cat 3 |
| 加载位置数 | 4 | 位置/触点数量 | 6p4c (RJ11, RJ14) |
环境参数
| 额定等级 | Cat3 | 工作温度 | -40°C ~ 85°C |
