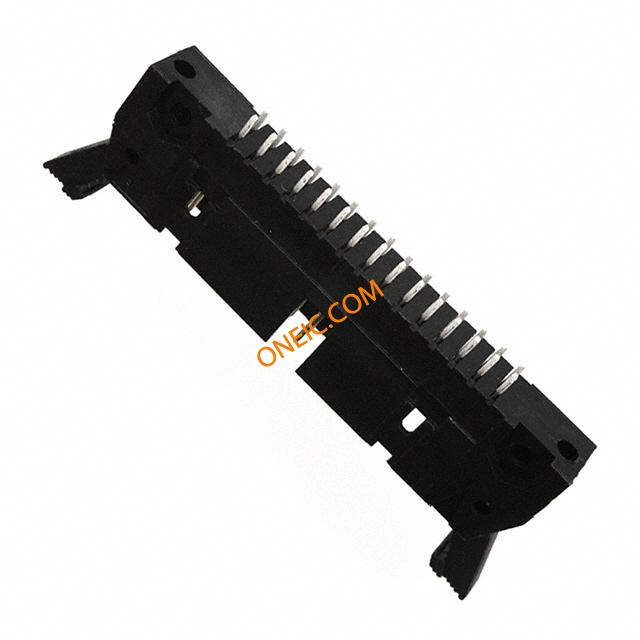

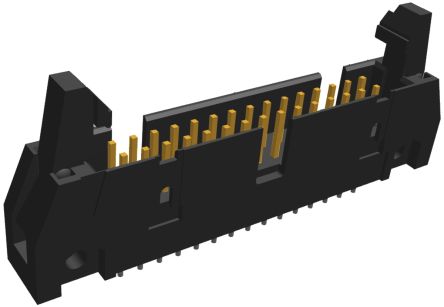

5499910-7
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Ejector Header HDR 30 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 30POS .100 GOLD Headers & Wire Housings 30P UNIV HDR VERT SHT LAT Conn Ejector Header HDR 30 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Header - PinHeader Type = Universal Ejection Pin HeadersAMP-LATCH Product LineStandard Profile30 PositionsSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 30POS, 2.54MM TE Connectivity AMP-LATCH 系列 2.54mm节距 30路 (2排) 直 PCB 针座, 焊接端接, 1A , 通孔 A/L UNIV HDR 30P VERT SHT LAT |
| 分类 |
商业参数
| 商标名 | AMP-LATCH | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 360 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 量程（°/s） | :TE - AMP-LATCH Series | 开关功能 | Ejection |
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 重量 | 0 | 包装方式 | Bulk |
| 遮蔽类型 | Yes | 排间距 | 0.100" (2.54mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 柱间距 | 2.54 x 2.54 [.100 x .100] | 极化 | Center, Dual Polarizing Bar, Military |
| 第二连接器 | With | 触点形状 | Square |
| 外壳颜色 | Black | 安装类型 | Vertical |
| 连接器类型 | Universal Ejection Pin Headers | 接触镀层 | Gold Over Palladium Nickel Over Nickel|Gold Over Nickel |
| 紧固类型 | Latch, Short/Eject Hooks | 排数 | 2 |
| 封装形式 | 4-Sided | 电路板厚度 | 1.57 [0.062] |
| 锁定特性 | Latch | 外形（宽 x 高） | Standard |
| 壳体材料 | Thermoplastic | 尺寸/外形 | 0.64 [.025] |
| 端接样式 | Through Hole | 第一触头极性 | Pin (Male) |
| 配接方向 | With | 触点数 | 30 |
| 接触件端接 | :Through Hole Vertical | 位数 | 30 |
| 接触长度 - 配合 | 0.240" (6.10mm) | 端子柱长度 | 2.79 [0.110] |
| 接触镀层厚度 | 15µin (0.38µm) | ||
产品信息
| 类型 | Ejector Header | 连接器性别 | HDR |
| 系列 | AMP-LATCH | 产品子类型 | Headers |
| 其他规格 | With | 加载位置数 | All |
环境参数
| 温度额定值 | Standard | ||
