点击放大查看

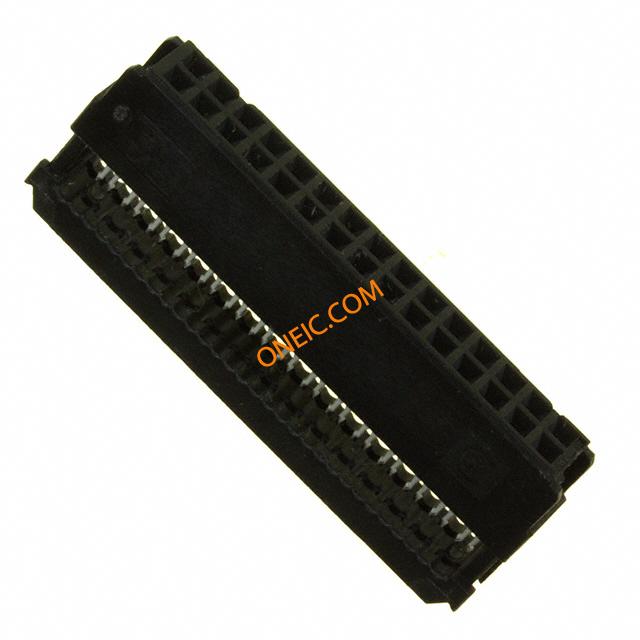

1658623-7
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn IDC Connector RCP 30 POS 2.54mm IDT RA Cable Mount Tube Ribbon Cable Connectors (AMP-LATCH) CONN IDC SOCKET 30POS GOLD Headers & Wire Housings .1CL IDC REC 2X15P MIL 30AU Conn IDC Connector RCP 30 POS 2.54mm IDT RA Cable Mount Tube Product Highlights:Connector Type = NOVONumber of Positions = 30ReceptacleMating Polarization Method = MilitaryWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board WIRE-BOARD CONNECTOR RECEPTACLE 30POS, 2.54MM 30 NOVO MIL 30DP, LEAD FREE |
| 分类 |
商业参数
| 商标名 | AMP-LATCH | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 量程（°/s） | :TE - AMP-LATCH Novo Series | ||
机械参数
| 尺寸 | :1.680 " W | 颜色 | Black |
| 间距 | 2.54 mm | 重量 | 0.004 |
| 包装方式 | Bulk | 导线类型 | Ribbon Cable |
| 出线方向 | Without | 导线线规 | 26-28 AWG |
| 排间距 | 0.100" (2.54mm) | 端接方式 | IDT |
| 触头类型 | Female Socket | 极化 | Military |
| 第二连接器 | Without | 外壳颜色 | Black |
| 安装类型 | No | 电缆端类型 | Without |
| 连接器类型 | NOVO | 接触镀层 | Gold Over Palladium Nickel Over Nickel|Gold Over Nickel |
| 安装样式 | Cable | 排数 | 2 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Thermoplastic |
| 安装特性 | Without | 电缆端接方式 | IDC |
| 端接样式 | IDC | 第一触头极性 | Socket (Female) |
| 配接方向 | With | 触点数 | 30 |
| 接触件端接 | :IDC / IDT | 位数 | 30 |
| 中心触点材料 | 2.54 x 2.54 [.100 x .100] | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 备注 | Receptacle can be used in applications requiring non-polarization, as well as m | 类型 | IDC Connector |
| 连接器性别 | RCP | 系列 | AMP-LATCH NOVO |
| 产品特性 | Feed Through | 产品子类型 | Receptacles / Sockets - Housings |
| 连接类型 | Ribbon Cable | 带调制解调器控制 | Yes |
| 应用细节 | Wire-to-Board | ||
