点击放大查看

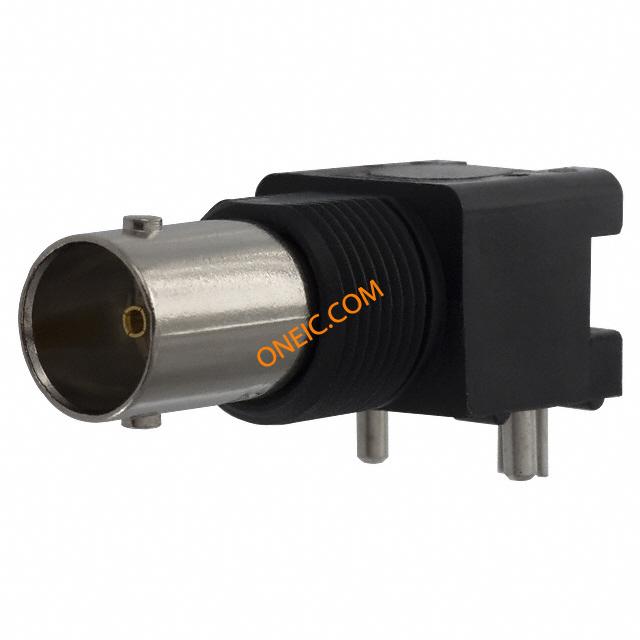

5413194-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn BNC RCP 75Ohm Solder RA Thru-Hole Gold BNC RF Connectors CONN BNC JACK R/A 75 OHM PCB BNC Jack pcb r/a 75ohm RF Connectors / Coaxial Connectors R.A. JACK 75 OHM Conn BNC RCP 75Ohm Solder RA Thru-Hole Gold Product Highlights:ConnectorConnector Type = BNCJackTerminate To Printed Circuit BoardPCB Mount Angle = Right AngleSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 CONNECTOR,RF,BNC,JACK,PCB,RIGHTANGLE BNC appliance socket, angled 75 Ohm, 5413194-2, TE Connectivity TE Connectivity 直角 75Ω 通孔 BNC 连接器, 插口, 焊接 端接, 镀镍本体 BNC, RT ANG, PCB, JACK |
| 分类 |
商业参数
| 产品 | PCB Connectors | 产品类别 | RF Connectors / Coaxial Connectors |
| 标准包装数量 | Trays | 工厂包装数量 | 35 |
合规参数
| RoHS | Lead free / RoHS Compliant | 抗辐射加固 | No |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | No | ||
电气参数
| 频率 | 0 → 4GHz | 阻抗 | 75 Ohm |
| 隔离电源 | No | 额定电压 | 500 V |
| 最大频率 | 2GHz | 连接器阻抗 | Without |
| 阻抗（最大）（Zzt） | 75Ω | 绝缘电阻 | 5000 MOhms |
机械参数
| 尺寸 | Standard | 颜色 | Black |
| 深度 | 14.76 mm | 高度 | 13.18 mm |
| 密封型 | No | 包装方式 | Bulk |
| 壳体颜色 | 黑色 | 本体表面处理 | Nickel |
| 方向 | Right Angle | 端接方式 | Solder |
| 基体材料 | VALOX | 安装类型 | Through Hole |
| 行程角度 | RightAngle | 连接器类型 | BNC |
| 接触镀层 | Gold | 紧固类型 | Bayonet Lock |
| 外壳涂层 | Nickel | 安装样式 | Standard |
| 壳体镀层 | 镍 | 连接器样式 | BNC |
| 高度（英寸） | 13.18 [0.519] | 触头材料 | Beryllium Copper |
| 总长度 | 34.93 mm | 安装特性 | 3.48 mm [ .137 in ] |
| 面板安装类型 | Lockwasher and Nut | 主要材料 | BNC |
| 端接排数 | 焊接 | 端接样式 | Solder |
| 屏蔽层端接方式 | Solder | 接触件端接 | Solder |
| 介电材料 | Polymethylpentene | 绝缘材料 - 类型 | Polymethylpentene |
| 位数 | 1 | 第一连接器极性 | Female |
| 中心触点表面处理 | 金 | 中心触点镀层工艺 | Gold (30) |
| 柱体长度（配合） | 3.48 [0.137] | 中心触点材料 | Beryllium Copper |
| 供应商器件封装 | Right Angle | 表面贴装焊盘尺寸 | No |
| 接触镀层厚度 | 30 | 第一连接器安装类型 | Panel |
| 外管直径（最大） | 14.529 mm [ .572 in ] | 执行器距PCB垂直高度 | 13.18 mm [ .519 in ] |
产品信息
| 类型 | BNC | 等级 | Commercial |
| 连接器性别 | RCP | 系列 | BNC |
| 产品特性 | Board Guide | 硬件配件 | No |
| 极性 | No | 可密封 | 否 |
| 制造商全称 | AMP | 产品子类型 | Connector |
| 连接类型 | PCB | 端口数 | 1 |
| 射频系列/标准 | 5413194 | ||
环境参数
| 工作温度 | - 55 C to + 85 C | ||
文档与媒体
相关型号
330620
TE Connectivity AMP Connectors
Connector Accessories BNC Insulating Bushing Nylon BNC RF Connectors CONN BUSHING INSULATE BNC BLKHD RF Connector Accessories INSULATION BUSHING Connector Accessories BNC Insulating Bushing Nylon Product Highlights:Insulating BushingConnector Type = BNCNot StackedInsulating Bushing Outside Diameter = 17.45 mmSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 INSULATIONBUSHING,BNC,17.45MMOUTSIDEDIAMETER TE Connectivity BNC系列 天然色 尼龙 绝缘衬套, 适用于射频同轴连接器 INSUL BUSHING BNC BLKHD PHEN
1-329631-2
te connectivity / amp
Connector Accessories Jam Nut BNC Connector Type BNC RF Connectors JAM NUT 0.623" BRASS 1/2-28 Jam nut for BNC connectors Screws & Fasteners HEX JAM NUT 1/2-28 Connector Accessories Jam Nut BNC Connector Type Product Highlights:Jam NutConnector Type = BNCNot StackedNot Surface MountableCartonSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 NUT, BNC CONNECTOR LEAD, JAM NUT Connector;JamNut;BNC;RoHS,ELVCompliants Lock nut BNC, 1-329631-2, TE Connectivity TE Connectivity 锁紧螺母, 使用于BNC 连接器 JAM NUT, PLATED
9-227260-0
te connectivity / amp
Lock Washer Terminal 14.55mm Tin Terminals LOCKWASHER TERM LOCKWASHER TERM CONN LOCKWASHER RECEPT BNC LOCKWASHER,TERMINAL,LEADFREE TE Connectivity 227260系列 锁紧垫圈
1-329632-2
te connectivity / amp
Connector Accessories Lock Washer Carton BNC RF Connectors WASHER INT TOOTH PHOSPHOR BRONZE Screws & Fasteners LOCKWASHER Connector Accessories Lock Washer Carton Product Highlights:LockwasherConnector Type = BNCNot Surface MountablePackaging Method = CartonNot PolarizedSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 LOCKWASHER Connector;BNC;AMP Spring washer BNC, 1-329632-2, TE Connectivity LOCKWASHER, PLATED
5-747908-2
te connectivity / amp
Conn D-Subminiature PIN 15 POS 2.77mm Solder Cup ST Panel Mount 15 Terminal 1 Port D-Sub Standard Connectors 15P PLUG TIN Standard Cable Connectors CONN DSUB PLUG 15 POS SLD CUP AMPLIMITE HD-20 d-sub cable plug,15 pin Conn D-Subminiature PIN 15 POS 2.77mm Solder Cup ST Panel Mount 15 Terminal 1 Port Product Highlights:ConnectorProduct Series = HD-20 (Solder Cup)Number of Positions = 15PlugWith ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub PLUG, D, SOLDER, 15WAY Conn;D-Sub;CablePlug;15Pos;STR;HD-20Series;20AWG;FullMetalShell Plug; D-Sub; HD 20; PIN:15; male; soldering; for cable; gold flash D-Sub plug 15P, 5-747908-2, TE Connectivity TE Connectivity Amplimite HD-20 系列 面板安装 DB15 15 路 焊接 D-sub 连接器 插头 , 250 V 交流, 3A 15 Plug Solder Cup, Gold Flash

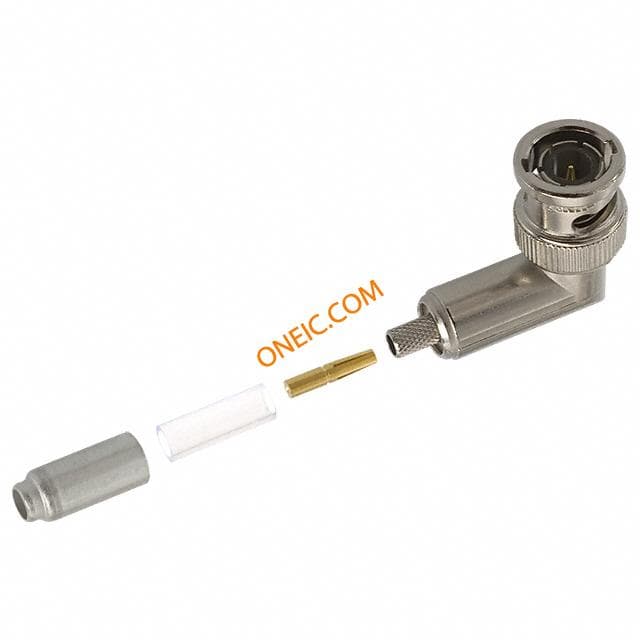

5413959-3
