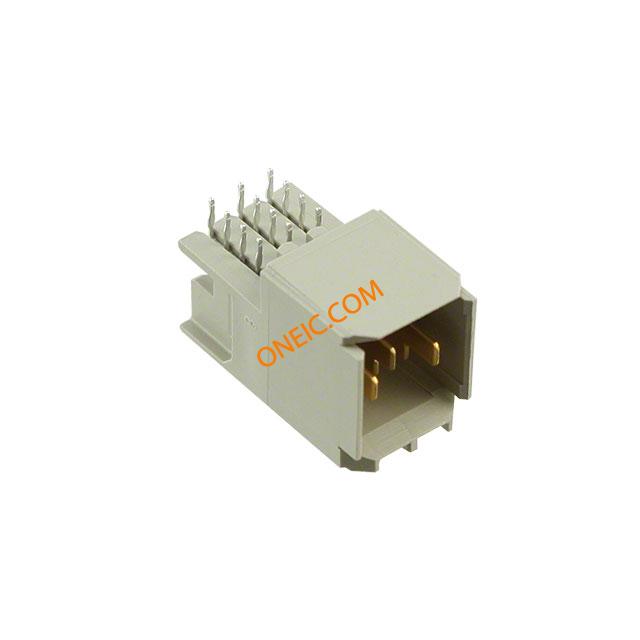

5223962-1

点击放大查看

5223962-1

制造商
TE Connectivity Ltd.
描述Conn Power PL 3 POS 2mm Press Fit RA Thru-Hole 3 Terminal 1 Port Universal Power Module (For use with Z-PACK 2mm HM, Z-PACK HS3, Z-PACK HM-Zd and MULTI GIG RT2J) CONN RCPT UNIV PWR MODULE 3POS Hard Metric Connectors UNV PWR MDL HDR SEQ 3P PLUG R/A UPM TIN Conn Power PL 3 POS 2mm Press Fit RA Thru-Hole 3 Terminal 1 Port Product Highlights:HeaderNumber of Positions = 3Not KeyedMating Post Length (Row A) = 10.90 mmMating Post Length (Row B) = 9.30 mmSearch Keywords:high speed, board to board, open pin field, power, IEC 950, inverse-sex, mezzanine, pcb connectors, wire to board, VRM, voltage regulator module, Itanium II Power POD connector, UNV PWR MDL ASY HDR SEQ
分类
对参数有疑问?问 AI 助手

商业参数

产品类别Hard Metric Connectors标准包装数量Rail / Tube
工厂包装数量48

合规参数

RoHSLead free / RoHS Compliant无铅定义Not relevant for lead free process
RoHS/ELV合规状态RoHS compliant, ELV compliantUL阻燃等级UL 94V-0
材料阻燃等级UL94 V-0

电气参数

接口2mm HM额定电压250V
供电电压250最大额定电流10

机械参数

颜色Gray间距2 mm
密封型不密封包装方式Tube
端接方式Press Fit触头类型Compliant Post
外壳颜色Natural安装类型Through Hole
连接器类型Header, Male Blades接触镀层Tin
安装样式Through Hole引脚数3
排数1连接器样式Blade Power
连接器用途Backplane插入件材料磷青铜
触头材料Phosphor Bronze壳体材料Liquid Crystal Polymer (LCP)
面板安装类型通孔 - 免焊连接, 通孔 - 免焊连接端接排数3.43 mm [ .135 in ]
端接样式刀片触点数3
位数3外壳尺寸-插件插头
柱体长度(配合)9.30 [0.366]接触件表面处理 - 配合
典型触点布局3 Power接触镀层厚度3µin (0.08µm)

产品信息

备注Contact area lubricated with Bellcore approved lubricant.类型Power
连接器性别PL系列Z-Pack
产品特性Board Guide编码、键控No
产品子类型Plug应用细节Power
加载位置数All

环境参数

测试温度标准件 - 非灼热丝工作温度-55°C ~ 125°C
封装热阻1.6 mm [ .063 in ]
