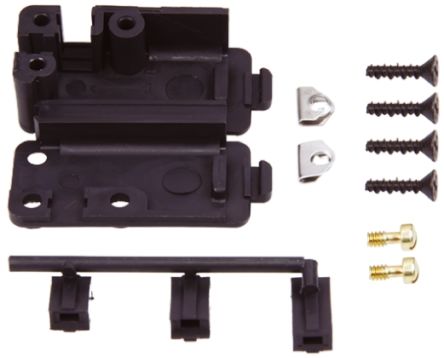

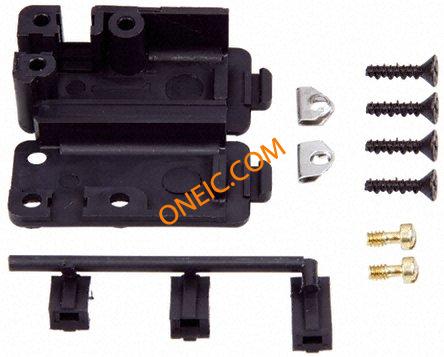

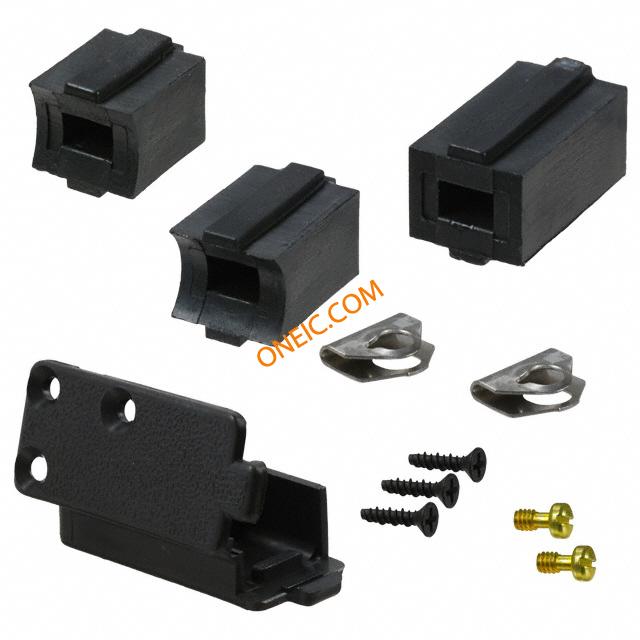

5207908-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories Backshell/Cable Clamp Thermoplastic Individual Shell Size 1 D-Sub Backshells CABLE CLAMP KT SZ1 Cable Clamps CONN BACKSHELL DB9 PLASTIC AMPLIMITE HD-20 backshell kit, size 1 Backshell/Cable Clamp 90�/180� 1 Shell Size Thermoplastic Individual Backshell/Cable Clamp 90°/180° 1 Shell Size Thermoplastic Individual Backshell/Cable Clamp 90°/180° 1 Shell Size Thermoplastic Individual Product Highlights:Backshell/Cable ClampCable Clamp Type = Box and LidStraight(180°)/90° Cable Exit AngleCable Insulation Diameter = 4.06 mmShell Size = 1Search Keywords:AMPLIMITE, Subminiature D, input/output, box to box, d-sub, d sub, dsub Hood;D-Sub;9Pos;Str./90DegExit;HD-20Series;Thermoplastic;0.160In.CblDia TE Connectivity 9 路 D-sub 连接器底壳 STRAIN RELIEF W/SCREW RET KIT |
| 分类 |
商业参数
| 交货时间 | 28 Days | 子类别 | Backshells |
| 产品类别 | D-Sub Backshells | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| 连接器阻抗 | 90, 180 | ||
机械参数
| 颜色 | Black | 外形尺寸(长x宽) | 1 |
| 材料（通用） | Stainless Steel | 包装方式 | Bulk |
| 屏蔽 | Unshielded | 出线方向 | Straight(180°)/90° |
| 电缆类型 | Round | 外壳尺寸 | 1 |
| 导线线规 | 聚丙烯 | 屏蔽类型 | No |
| 螺纹尺寸 | 4-40 | 电缆开口 | 90°, 180° |
| 外壳镀层 | Plastic | 线径 | 4.06 mm [ .16 in ] |
| 电缆直径 | 0.160In. | 电缆端类型 | Variable Entries |
| 电缆材料 | Thermoplastic | 外壳材料（壳体） | Thermoplastic |
| 屏蔽材料 | 无 | 包装数量 | Individual Kit |
| 电缆端接方式 | Box and Lid | 端接样式 | 盒与盖 |
| 触点数 | 9 | 绝缘直径 | 4.06 [0.160] |
| 位数 | 9 | 衬套/护套类型 | Without |
| 兼容外壳尺寸（如TM-700等） | 插头/母端 | 电缆对数 | 2 |
| 供应商器件封装 | Assembly Hardware, Strain Relief | 后壳材料及镀层 | Thermoplastic |
| 控制侧电缆固定器 | With | ||
产品信息
| 备注 | Each kit is comprised of a cable clamp and male screw retainer hardware (2 each | 类型 | Backshell/Cable Clamp |
| 系列 | HD-20 (Solder Cup) | 产品特性 | Assembly Kit, Mating Screws 4-40 |
| 硬件配件 | Assembly Hardware, Strain Relief | 主要用途 | Assembly Kit, Mating Screws 4-40 |
| 制造商全称 | HD-20Series | 产品子类型 | Backshell/Cable Clamp |
| 附件类型 | Hinged Backshell | 射频系列/标准 | 5207908 |
| 适用产品/相关产品 | 207908-1 | ||
