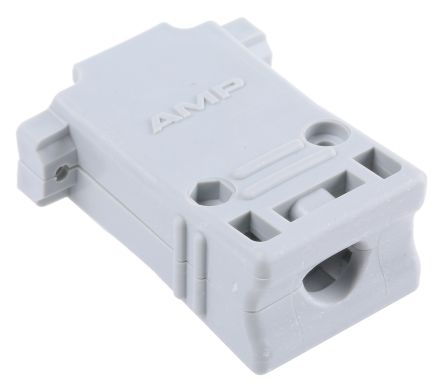

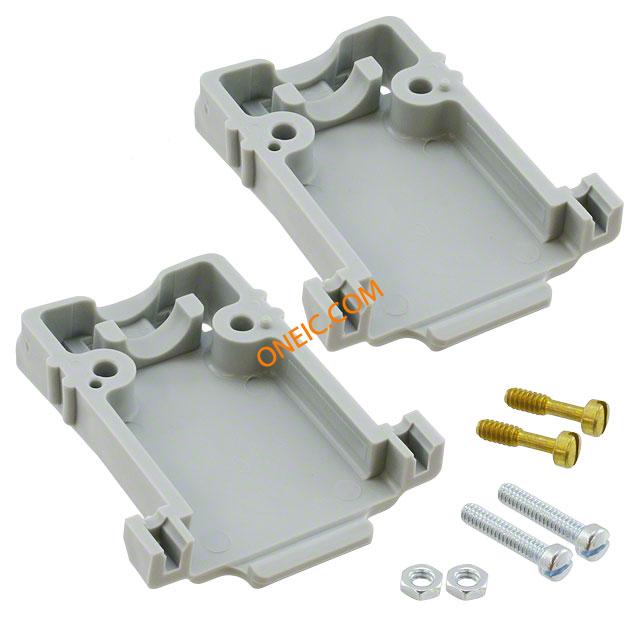

5206471-1

点击放大查看

5206471-1

制造商
TE Connectivity Ltd.
描述Connector Accessories Backshell and Cable Clamp Thermoplastic Gray Individual D-Sub Backshells 15P 2PC CABLE CLAMP Cable Clamps CONN BACKSHELL DB15 GRAY PLASTIC AMPLIMITE HDE/HDP backshell kit, size 2 Backshell/Cable Clamp 90°/180° 2 Shell Size Thermoplastic Individual Backshell/Cable Clamp 90°/180° 2 Shell Size Thermoplastic Individual Product Highlights:Backshell/Cable ClampCable Clamp Type = Clam ShellStraight(180°)/90° Cable Exit AngleCable Insulation Diameter = 8.89 mmShell Size = 2Search Keywords:AMPLIMITE, Subminiature D, input/output, box to box, d-sub, d sub, dsub Hood;D-Sub;15Pos;Straight/90Deg;AMP;Thermoplastic;0.350In.CblDia TE Connectivity 15 路 直 热塑性 D-sub 连接器底壳 CABLE CLAMP KIT,SZ 2
分类
连接器解决方案D-Sub连接器D-Sub连接器
对参数有疑问？问 AI 助手

商业参数

交货时间28 Days子类别Backshells
产品类别D-Sub Backshells标准包装数量Bulk
工厂包装数量1

合规参数

RoHSRoHS Compliant无铅定义Not relevant for lead free process
RoHS/ELV合规状态RoHS compliant, ELV compliant

电气参数

连接器阻抗90, 180

机械参数

颜色Gray外形尺寸(长x宽)2
材料（通用）Thermoplastic包装方式Bulk
屏蔽Unshielded出线方向Straight(180°)/90°
电缆类型Round外壳尺寸2
导线线规热塑性方向直
屏蔽类型No螺纹尺寸4-40
电缆开口90°, 180°安装类型Straight
外壳镀层Plastic线径8.89 mm [ .35 in ]
电缆直径8.89 mm电缆端类型Variable Entries
电缆材料Thermoplastic连接器类型电线和电缆
外壳材料（壳体）Thermoplastic屏蔽材料无
壳体材料Thermoplastic包装数量Individual Kit
电缆端接方式Clam Shell端接样式夹具外壳
触点数15绝缘直径8.89 [0.350]
位数15衬套/护套类型Without
电缆对数2供应商器件封装Assembly Hardware
后壳材料及镀层Thermoplastic

产品信息

备注Straight or 90° cable exit is achieved by inserting AMP-TY Cable Ties through类型Backshell and Cable Clamp
系列AMPLIMITE HD-20, AMP产品特性Assembly Kit, Mating Screws 4-40
硬件配件Assembly Hardware主要用途Assembly Kit, Mating Screws 4-40
制造商全称AMP产品子类型Backshell/Cable Clamp
附件类型Hinged Backshell射频系列/标准5206471
适用产品/相关产品206471-1
