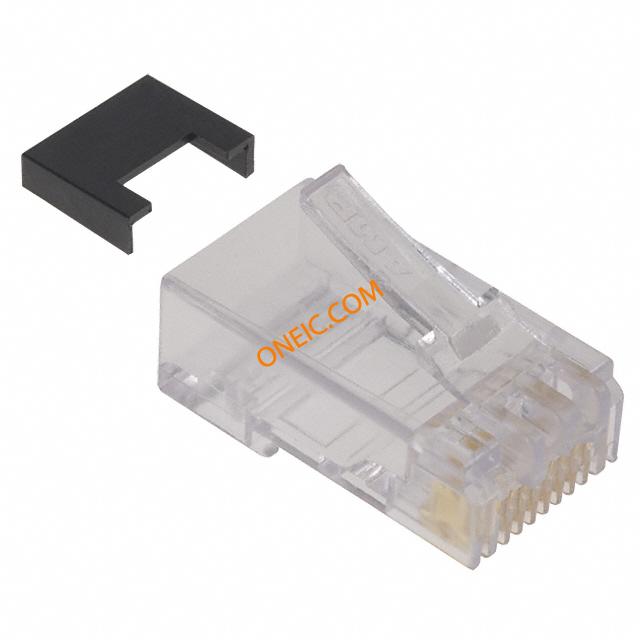

5-558530-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Modular Plug PL 8 POS 1.02mm Crimp ST Cable Mount 8 Terminal 1 Port Box Cat 5e Modular Plugs and Accessories CONN MOD PLUG 8P8C UNSHIELDED Cat 5e modular plug, 8/8, stranded wire Modular Connectors / Ethernet Connectors 8/8 ROUND CABLE CAT5 Conn Modular Plug PL 8 POS 1.02mm Crimp ST Cable Mount 8 Terminal 1 Port Box Cat 5e Product Highlights:PlugNumber of Positions = 8Not Shielded8 Contacts LoadedCable Style = Round StrandedSearch Keywords:FCC Part 68, EIA/TIA 568A, mass termination, NIC, Network Interface Cards, PC Cards, input/output, box to box, Plug;8;8;Polycarbonate;UL94V-2;PhosphorBronze;RoundStranded Plug; RJ45; PIN:8; Cat:5e; with conductor guide; Pin layout:8p8c Modular UTP Plug RJ45 |
| 分类 |
商业参数
| 产品 | Modular Plugs | 产品类别 | Modular Connectors / Ethernet Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 认证机构 | UL,CSA |
| 材料阻燃等级 | UL 94 V-2 | ||
电气参数
| 以太网 | Cat 5e | 额定电压 | 150 V |
| 最大额定电流 | 1.5 A | 绝缘电阻 | 500 MOhms |
| 连接器类型 - 电压输入 | Cat5 | ||
机械参数
| 颜色 | Translucent - Clear | 间距 | 1.02 mm |
| 长度 | 0.895" (22.74mm) | 重量 | 1.71 g |
| 包装方式 | Bulk | 屏蔽 | Unshielded |
| 电缆类型 | Round Cable, Stranded Wires | 导线线规 | 24 AWG |
| 方向 | Straight | 屏蔽类型 | UTP |
| 端接方式 | Crimp | 电缆开口 | 0.190 - 0.220 in |
| 安装类型 | Cable Mount | 行程角度 | Straight |
| 电缆直径 | 24 Str | 导体类型 | 8 |
| 连接器类型 | Modular Plug | 接触镀层 | Gold |
| 安装样式 | Cable | 封装形式 | 100 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Polycarbonate (PC) |
| 包装数量 | 100 | 主要材料 | Modular |
| 连接器 - 电缆 | plug | 触点数 | 8 |
| 位数 | 8 | 供应商器件封装 | Non Keyed |
| 接触镀层厚度 | 50µin (1.27µm) | 中心导体直径 | 0.035to0.039in. |
| 每排/每行位置数 | 8C | 第一连接器安装特征 | 8p8c |
产品信息
| SPG | 100 | 类型 | Modular Plug |
| 等级 | Cat5e | 连接器性别 | PL |
| 系列 | AMP | 插头类型 | Modular UTP |
| USOC 编码 | RJ45 | 性能 | Cat5 |
| 适配器系列 | AMP | 规格说明 | RJ45 |
| 端口数 | 1 | 单元数量 | 1 |
| 工作高度 | 8 | 性能类别 | Cat 5e |
| 位置/触点数量 | 8p8c (RJ45, Ethernet) | ||
环境参数
| 额定等级 | Cat5e | 工作温度 | - 40 C to + 70 C |
相关型号
558211-5
te connectivity / amp
Connector Accessories Telephone/Telecom Plug Boot Blue Modular Plugs and Accessories CONN ACCY BOOT BLUE Cable Boots 8P MOD CABLE BOOT BLUE Connector Accessories Telephone/Telecom Plug Boot Blue Product Highlights:BootBoot Type = StandardBoot Color = BlueSearch Keywords:FCC Part 68, EIA/TIA 568A, mass termination, NIC, Network Interface Cards, PC Cards, input/output, box to box,
5-558530-3
te connectivity / amp
Conn Modular Plug PL 8 POS 1.02mm Crimp ST Cable Mount 8 Terminal 1 Port Box Cat 5e Modular Plugs and Accessories CONN MOD PLUG 8P8C UNSHIELDED Cat 5e modular plug, 8/8, stranded wire Modular Connectors / Ethernet Connectors 8/8 ROUND CABLE CAT5 Conn Modular Plug PL 8 POS 1.02mm Crimp ST Cable Mount 8 Terminal 1 Port Box Cat 5e Product Highlights:PlugNumber of Positions = 8Not Shielded8 Contacts LoadedCable Style = Round StrandedSearch Keywords:FCC Part 68, EIA/TIA 568A, mass termination, NIC, Network Interface Cards, PC Cards, input/output, box to box, Plug;8;8;Polycarbonate;UL94V-2;PhosphorBronze;RoundStranded Plug; RJ45; PIN:8; Cat:5e; with conductor guide; Pin layout:8p8c Modular UTP Plug RJ45
558211-4
te connectivity / amp
Connector Accessories Telephone/Telecom Plug Boot Green Modular Plugs and Accessories Cable Boots 8P MOD CABLE BOOT GREEN Modular Plugs and Accessories Product Highlights:BootBoot Type = StandardBoot Color = GreenSearch Keywords:FCC Part 68, EIA/TIA 568A, mass termination, NIC, Network Interface Cards, PC Cards, input/output, box to box,
558211-7
te connectivity / amp
Connector Accessories Modular Plug Boot Elastomer Polyolefin Orange Modular Plugs and Accessories Cable Boots 8P MOD CABLE BOOT ORANGE Modular Plugs and Accessories Product Highlights:BootBoot Type = StandardBoot Color = OrangeSearch Keywords:FCC Part 68, EIA/TIA 568A, mass termination, NIC, Network Interface Cards, PC Cards, input/output, box to box,
1-569875-0
te connectivity / amp
Connector Accessories Modular Plugs Snagless Boot Gray Modular Plugs and Accessories CONN ACCY BOOT HOODED GRAY Modular Connectors / Ethernet Connectors MOD PLUG BOOT GRAY Connector Accessories Modular Plugs Snagless Boot Gray Product Highlights:BootBoot Type = SnaglessBoot Color = GraySearch Keywords:FCC Part 68, EIA/TIA 568A, mass termination, NIC, Network Interface Cards, PC Cards, input/output, box to box, SNAGLESS BOOT, ELASTOMER POLYOLEFIN

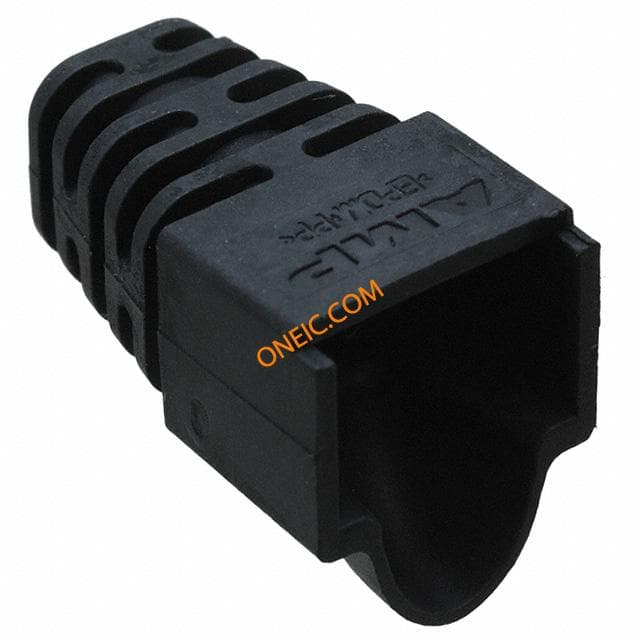

569875-1
te connectivity / amp
Connector Accessories Modular Plugs Snagless Boot Black Modular Plugs and Accessories CONN ACCY BOOT HOODED BLACK Cable boot, cat3/5/5e modular plug,black Cable Boots MOD PLUG BOOT Connector Accessories Modular Plugs Snagless Boot Black Product Highlights:BootBoot Type = SnaglessBoot Color = BlackSearch Keywords:FCC Part 68, EIA/TIA 568A, mass termination, NIC, Network Interface Cards, PC Cards, input/output, box to box, SNAGLESS BOOT, 8WAY CableBoot;Snagless;Black;0.21in.;RoHSCompliant,ELVCompliant Modular Plug UTP Boot

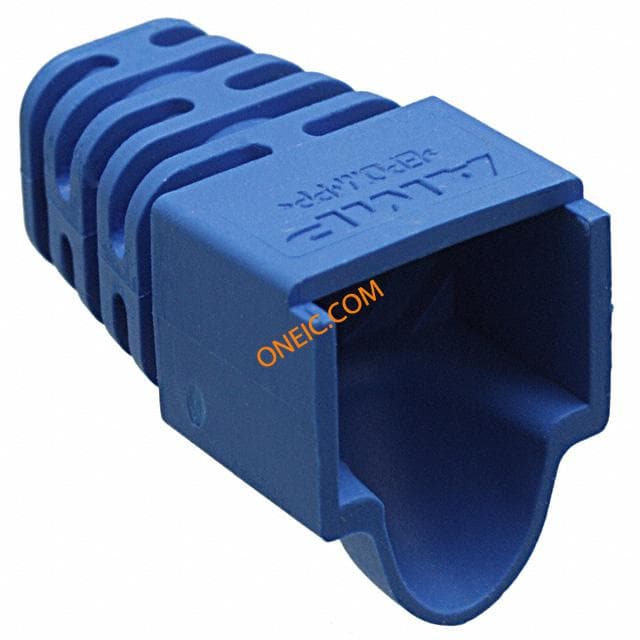

569875-5
te connectivity / amp
Connector Accessories Modular Plugs Snagless Boot Blue Modular Plugs and Accessories CONN ACCY BOOT HOODED BLUE Cable boot, cat3/5/5e modular plug, blue Cable Boots BLUE BOOT Connector Accessories Modular Plugs Snagless Boot Blue Product Highlights:BootBoot Type = SnaglessBoot Color = BlueSearch Keywords:FCC Part 68, EIA/TIA 568A, mass termination, NIC, Network Interface Cards, PC Cards, input/output, box to box, SNAGLESS BOOT, ELASTOMER POLYOLEFIN CableBoot;Snagless;Blue;0.21in.;RoHSCompliant,ELVCompliant 5.33 mm Cable Diameter Blue Snagless Boot
558211-3
te connectivity / amp
Connector Accessories Telephone/Telecom Plug Boot Red Modular Plugs and Accessories Cable Boots 8P MOD CABLE BOOT RED Modular Plugs and Accessories Product Highlights:BootBoot Type = StandardBoot Color = RedSearch Keywords:FCC Part 68, EIA/TIA 568A, mass termination, NIC, Network Interface Cards, PC Cards, input/output, box to box,

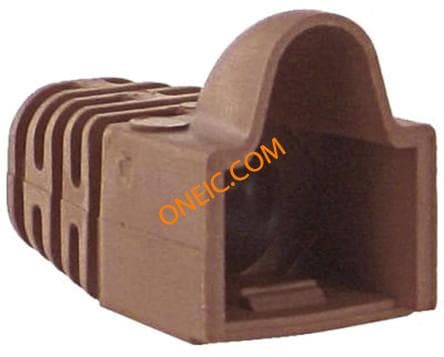

569875-3
te connectivity / amp
Connector Accessories Modular Plugs Snagless Boot Red Modular Plugs and Accessories CONN ACCY BOOT HOODED RED Cable boot, cat3/5/5e modular plug, red Cable Boots RED BOOT Connector Accessories Modular Plugs Snagless Boot Red Product Highlights:BootBoot Type = SnaglessBoot Color = RedSearch Keywords:FCC Part 68, EIA/TIA 568A, mass termination, NIC, Network Interface Cards, PC Cards, input/output, box to box, SNAGLESS BOOT, ELASTOMER POLYOLEFIN CableBoot;Snagless;Red;0.21in.;RoHSCompliant,ELVCompliant

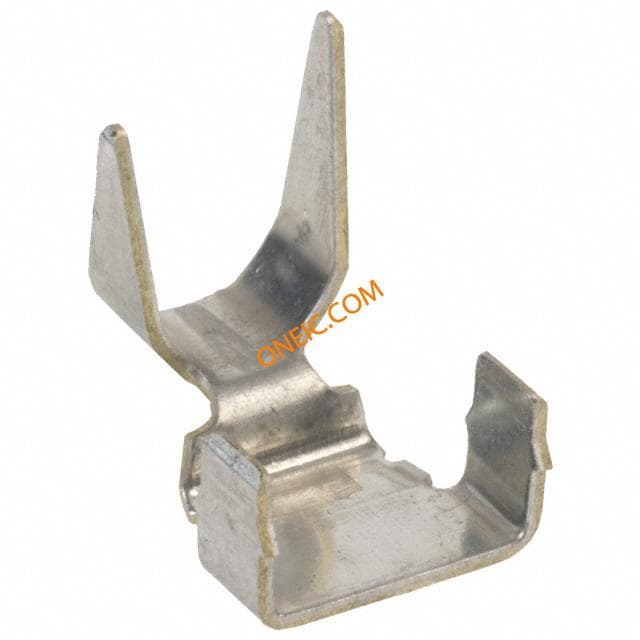

558527-1
te connectivity / amp
Connector Accessories Modular Plug Strain Relief Without Retention Hole Brass Tin Finish Modular Plugs and Accessories CONN ACCY STRAIN RELIEF Modular Connectors / Ethernet Connectors STRAIN RELIEF Connector Accessories Modular Plug Strain Relief Without Retention Hole Brass Tin Finish Product Highlights:Strain ReliefSearch Keywords:FCC Part 68, EIA/TIA 568A, mass termination, NIC, Network Interface Cards, PC Cards, input/output, box to box, STRAIN RELIEF, BRASS

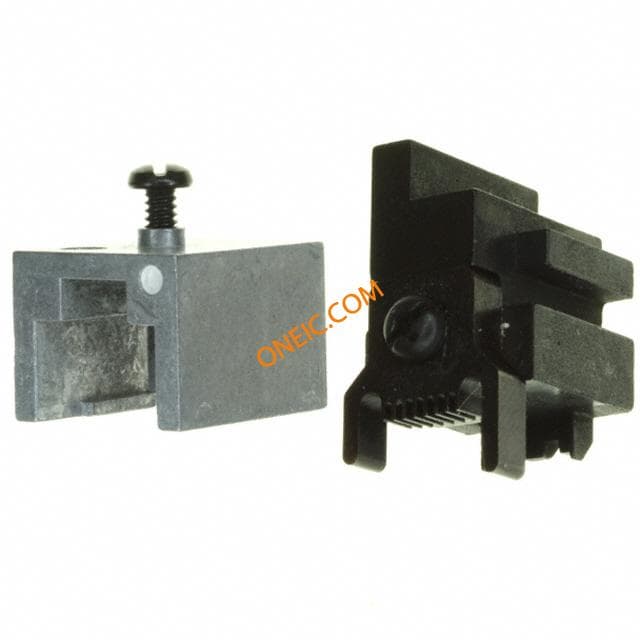

1-853400-0
