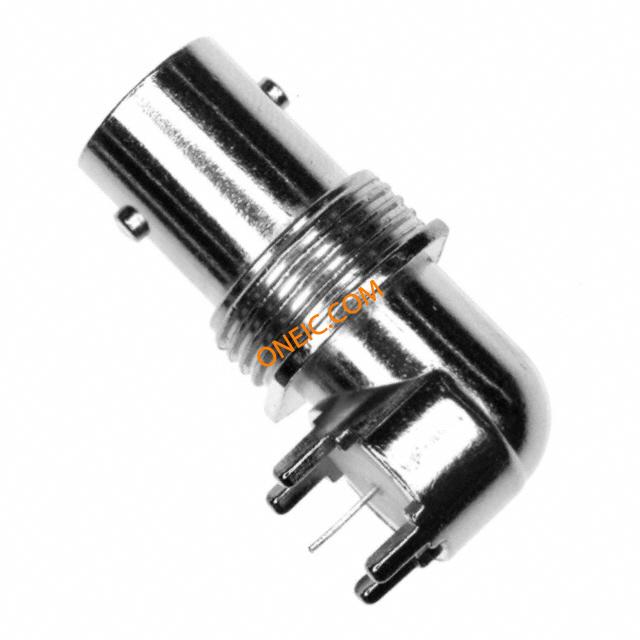

5-1634556-0
| 制造商 | TE Connectivity Ltd. |

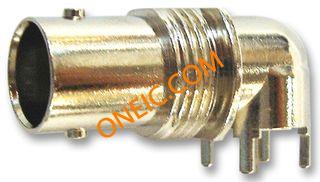

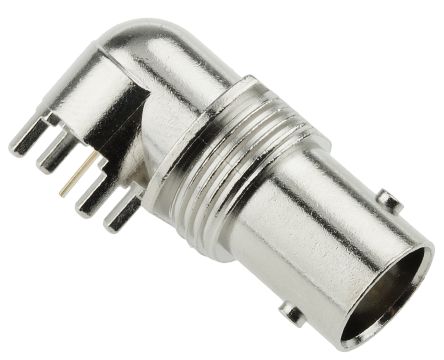

| 描述 | Conn BNC RCP 0Hz to 4GHz 50Ohm Solder RA Thru-Hole Gold Individual BNC RF Connectors CONN BNC JACK R/A 50 OHM PCB BNC bulkhead PCB socket 50ohm 28.0 RF Connectors / Coaxial Connectors BH PCB Skt 50 Ohm 28.0 Conn BNC RCP 0Hz to 4GHz 50Ohm Solder RA Thru-Hole Gold Individual Search Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 SOCKET, BNC, BULKHEAD, 50R BNCLPBULKHEADPCBSKT50OHM28.0 Socket; BNC; female; angled 90°; 50Ω; THT; on PCBs; teflon TE Connectivity Greenpar 直角 50Ω 通孔 隔板安装 BNC 连接器, 插口, 焊接 端接, 镀镍本体 BNC LP ELBOW B/HEAD PCB SKT 50 OHMS 6.15 |
| 分类 |
商业参数
| 产品 | PCB Receptacles | 产品类别 | RF Connectors / Coaxial Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 50 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 抗辐射加固 | No | ||
电气参数
| 频率 | 0 to 4 GHz | 阻抗 | 50 Ohm |
| 最大频率 | 4GHz | 工作电压 | :500V |
| 接触电阻 | :1.5mohm | 击穿电压 | :1500V |
| 绝缘电阻 | :5000Mohm | 阻抗 - 不平衡/平衡 | :50R |
机械参数
| 尺寸 | Standard | 深度 | 14.9 mm |
| 高度 | 11.65 mm | 重量 | 0.01 |
| 包装方式 | Bulk | 电缆类型 | :- |
| 本体表面处理 | Nickel | 方向 | Right Angle |
| 端接方式 | Solder | 基体材料 | Zinc Alloy |
| 安装类型 | Through Hole | 行程角度 | RightAngle |
| 连接器类型 | Jack, Female Socket | 接触镀层 | Gold |
| 紧固类型 | Bayonet Lock | 外壳涂层 | Nickel |
| 安装样式 | Through Hole | 壳体镀层 | Nickel |
| 连接器样式 | BNC | 触头材料 | Phosphor Bronze |
| 总长度 | 28 mm | 包装数量 | 1 |
| 主要材料 | BNC | 连接器 - 电缆 | socket |
| 端接样式 | Solder | 屏蔽层端接方式 | Solder |
| 接触件端接 | Solder | 介电材料 | Polymethylpentene (PMP) |
| 绝缘材料 - 材质 | :Zinc | 中心触点镀层工艺 | Gold |
| 中心触点材料 | Phosphor Bronze | 供应商器件封装 | Bulkhead |
| 触点材料 - 镀层 | gold plated | 第一连接器安装类型 | :Panel |
产品信息
| SPG | 1 | 类型 | BNC |
| 连接器性别 | RCP | 系列 | :- |
| 极性 | Normal | 连接类型 | PCB |
| 单元数量 | 1 | 射频系列/标准 | 1634556 |
环境参数
| 插拔次数 | :50 | 工作温度 | - 55 C to + 85 C |
文档与媒体
相关型号
330620
TE Connectivity AMP Connectors
Connector Accessories BNC Insulating Bushing Nylon BNC RF Connectors CONN BUSHING INSULATE BNC BLKHD RF Connector Accessories INSULATION BUSHING Connector Accessories BNC Insulating Bushing Nylon Product Highlights:Insulating BushingConnector Type = BNCNot StackedInsulating Bushing Outside Diameter = 17.45 mmSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 INSULATIONBUSHING,BNC,17.45MMOUTSIDEDIAMETER TE Connectivity BNC系列 天然色 尼龙 绝缘衬套, 适用于射频同轴连接器 INSUL BUSHING BNC BLKHD PHEN
9-227260-0
te connectivity / amp
Lock Washer Terminal 14.55mm Tin Terminals LOCKWASHER TERM LOCKWASHER TERM CONN LOCKWASHER RECEPT BNC LOCKWASHER,TERMINAL,LEADFREE TE Connectivity 227260系列 锁紧垫圈
5-1634504-2
te connectivity / amp

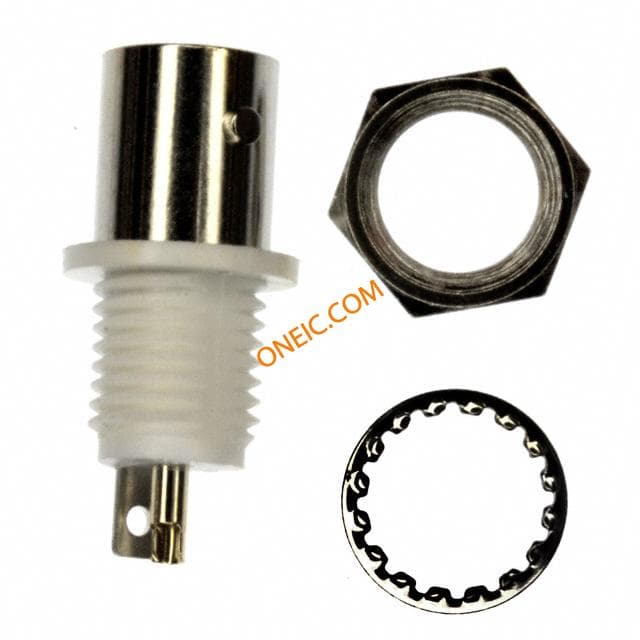

Conn ZDC/BNC RCP 0Hz to 4GHz 75Ohm Solder ST Panel Mount Gold Over Nickel Over Copper Individual BNC RF Connectors CONN BNC JACK STR 75 OHM SOLDER BNC Ni-pl insul bulkhead socket, 75 ohm RF Connectors / Coaxial Connectors BH Skt 75Ohm Nickel Gold Conn ZDC/BNC RCP 0Hz to 4GHz 75Ohm Solder ST Panel Mount Gold Over Nickel Over Copper Individual Product Highlights:ConnectorConnector Type = ZDC/BNCJackTerminate To WireBody Style = StraightSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 RF COAXIAL, BNC, JACK, BULKHEAD, 75OHM BNCINSBHSKT75OHMNICKELGOLDPLTD Socket; BNC; female; insulated; straight; 75Ω; soldering; polyester BNC appliance socket, straight 75 Ohm, 5-1634504-2, TE Connectivity TE Connectivity Greenpar 直 75Ω 面板安装 隔板安装 BNC 连接器, 插口, 焊接 端接, 镀镍本体 BNC Ins BHSkt 75Ohm Nickel Gold Pltd
1-1634508-0
te connectivity / amp

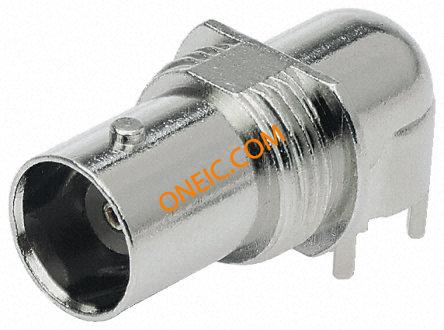

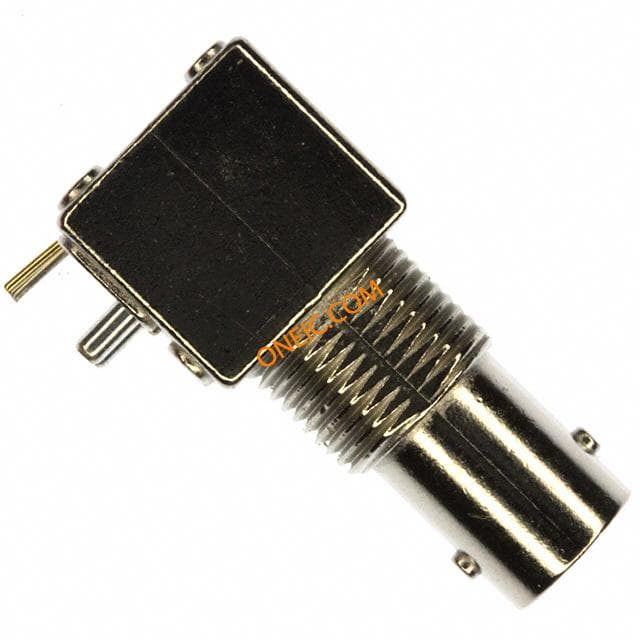

Conn ZDC/BNC RCP 0Hz to 2GHz 75Ohm Solder RA Thru-Hole Gold Over Nickel Over Copper Individual BNC RF Connectors CONN BNC JACK R/A 75 OHM PCB ZDC/BNC R/A shielded PCB socket, 50 ohm RF Connectors / Coaxial Connectors Shld PCB Skt 75 Ohm Nickel MP Conn ZDC/BNC RCP 0Hz to 2GHz 75Ohm Solder RA Thru-Hole Gold Over Nickel Over Copper Individual Product Highlights:ConnectorConnector Type = ZDC/BNCJack ReceptacleTerminate To Printed Circuit BoardBody Style = ElbowSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 SOCKET, BNC, PCB, R/A, 75R, SHIELD BNCSHLDLPPCBSKT75OHMNICKELPLATEDMP Socket; BNC; female; angled 90°; 75Ω; THT; polyetylene; gold plated TE Connectivity Greenpar 直角 75Ω 通孔 隔板安装 BNC 连接器, 插口, 焊接 端接, 镀镍本体 BNC R/A Shld PCB Skt 75Ohm Nickel Plate
5-1634516-5
te connectivity / amp

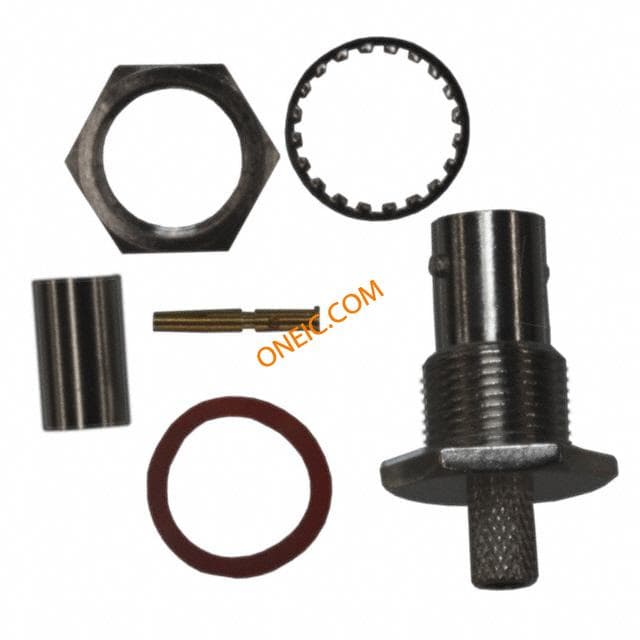

Conn ZDC/BNC RCP 0Hz to 2GHz 75Ohm Crimp ST Cable Mount Gold Over Nickel Over Copper Individual BNC RF Connectors CONN BNC JACK STR 75 OHM CRIMP BNC Ni-pl bulkhead jack, 75 ohm, RG59 RF Connectors / Coaxial Connectors RG58 BH J Hex Nickel 75Ohm Conn ZDC/BNC RCP 0Hz to 2GHz 75Ohm Crimp ST Cable Mount Gold Over Nickel Over Copper Individual Product Highlights:ConnectorConnector Type = ZDC/BNCJackTerminate To Coaxial CableCoaxial Cable Termination Type = CrimpSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 JACK, BULKHEAD, 75R, RG59B/U BNCRMBHJHEX75OHMNICKELPLTDRG59B/U,62A/U,140/U,210/U,URM90,KX6A,KX TE Connectivity 直 75Ω 面板安装 BNC 连接器, 插口, 压接 端接, RG140/U, RG210/U, RG59 B/U, RG62 A/U电缆, 镀镍本体 BNC RM BHJ Hex 75Ohm Nickel Pltd RG59B/U
5-1634514-1
te connectivity / amp

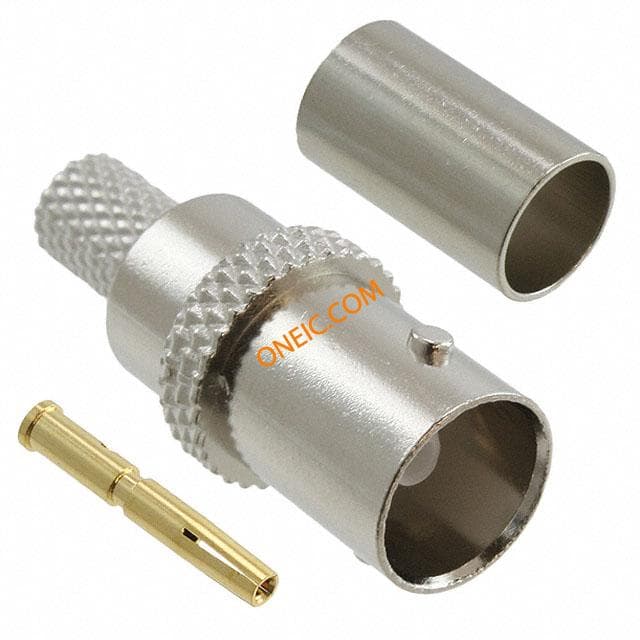

Conn ZDC/BNC F 0Hz to 4GHz 75Ohm Crimp ST Cable Mount Gold Over Nickel Over Copper Individual BNC RF Connectors CONN BNC JACK STR 75 OHM SOLDER BNC Ni-pl straight jack, 75 ohm, RG59 RF Connectors / Coaxial Connectors Str Jk Hex 75Ohm Nickel Conn ZDC/BNC F 0Hz to 4GHz 75Ohm Crimp ST Cable Mount Gold Over Nickel Over Copper Individual Search Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 JACK, 75R, RG59B/U, STRAIGHT BNCSTRJKHEX75OHMNICKELPLTDRG59B/U,62A/U,140/U,210/U,URM90,KX6A,KX Plug; BNC; female; straight; 75Ω; crimped; for cable; gold plated BNC cable connector, straight 75 Ohm, 5-1634514-1, TE Connectivity TE Connectivity 直 75Ω 电缆安装 BNC 连接器, 插口, 压接 端接, RG140/U, RG210/U, RG59 B/U, RG62 A/U电缆, 镀镍本体 BNC Str Jk Hex 75Ohm Nickel Pltd RG59B/U
1-1634816-0
te connectivity / amp
Connector Accessories Jam Nut Brass BNC RF Connectors CONN BNC/TNC NUT HEXAGONAL BNC/TNC hexagonal nut Screws & Fasteners Hexagonal Nut Connector Accessories Jam Nut Brass Product Highlights:Jam NutConnector Type = ZDC/BNCCommercial GradeBrass Body MaterialNickel Body PlatingSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 NUT, BNC / TNC BNC/TNCHEXAGONALNUT BNC / TNC Hexagonal Nut Hex Nut BNC, 1-1634816-0, TE Connectivity TE Connectivity Greenpar系列 螺母, 使用于BNC 和 TNC 连接器
1-1634817-0
te connectivity / amp
Connector Accessories Lockwasher Steel BNC RF Connectors CONN BNC/TNC LOCKWASHER BNC/TNC lockwasher Screws & Fasteners Lockwasher Connector Accessories Lockwasher Steel Search Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 LOCKWASHER, BNC / TNC BNC/TNCLOCKWASHER Lock washer BNC, 1-1634817-0, TE Connectivity TE Connectivity 垫片, 使用于BNC 和 TNC 连接器 BNC / TNC Lockwasher
1-1337488-0
te connectivity / amp

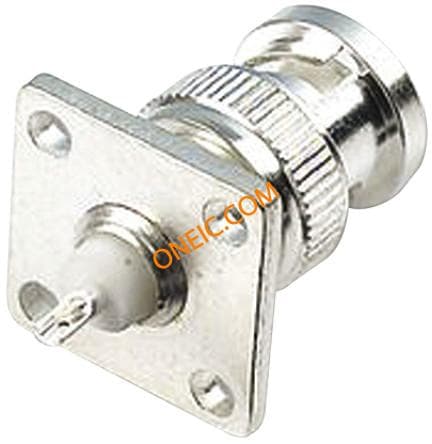

Conn BNC PL 0Hz to 4GHz 50Ohm Solder ST Panel Mount Silver Individual BNC RF Connectors CONN BNC PLUG STR 50 OHM SOLDER AgPt BNC panel mount solder plug,50ohm RF Connectors / Coaxial Connectors BNC PNL PLG 50OHM SILVER PLTD Conn BNC PL 0Hz to 4GHz 50Ohm Solder ST Panel Mount Silver Individual Product Highlights:ConnectorConnector Type = BNCPlugBody Style = StraightNot Surface MountableSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 PLUG, BNC, PANEL, 50R AgPtBNCpanelmountsolderplug,50ohm TE Connectivity Greenpar 直 50Ω 面板安装 BNC 连接器 插头, 焊接 端接, 镀银本体 BNC Pnl Plg 50Ohm Silver Pltd
CP2399-000
TE Connectivity
CONN CAP PLUG BNC STRAIGHT

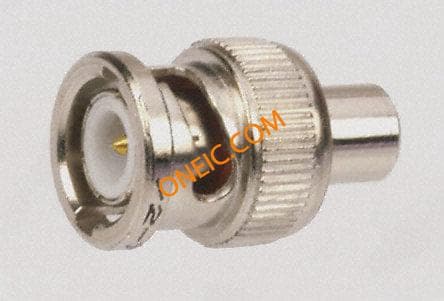

B1004A1-ND3G-50R-0.01-1W
