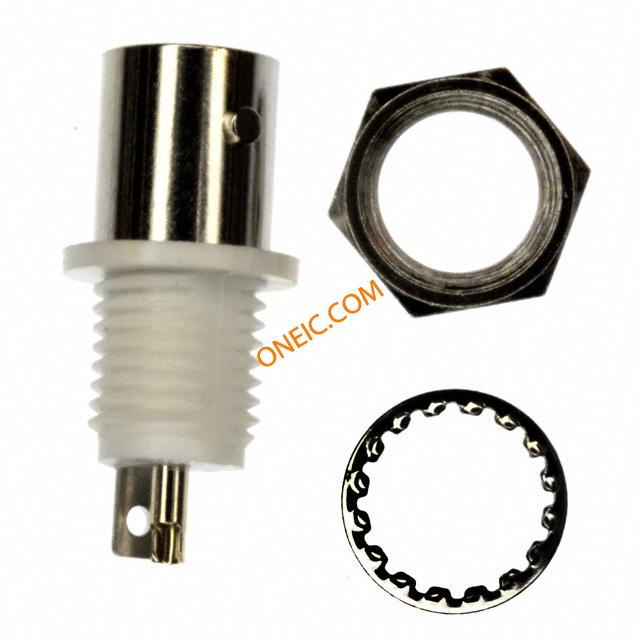

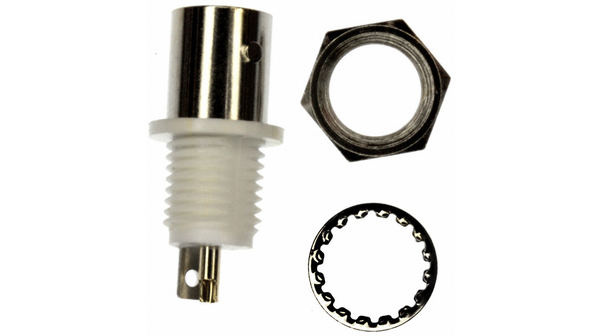

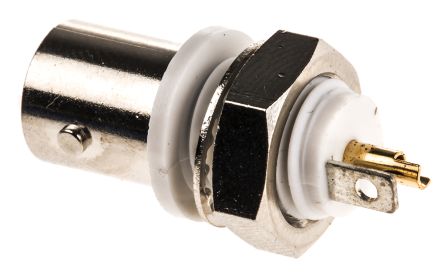

5-1634504-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn ZDC/BNC RCP 0Hz to 4GHz 75Ohm Solder ST Panel Mount Gold Over Nickel Over Copper Individual BNC RF Connectors CONN BNC JACK STR 75 OHM SOLDER BNC Ni-pl insul bulkhead socket, 75 ohm RF Connectors / Coaxial Connectors BH Skt 75Ohm Nickel Gold Conn ZDC/BNC RCP 0Hz to 4GHz 75Ohm Solder ST Panel Mount Gold Over Nickel Over Copper Individual Product Highlights:ConnectorConnector Type = ZDC/BNCJackTerminate To WireBody Style = StraightSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 RF COAXIAL, BNC, JACK, BULKHEAD, 75OHM BNCINSBHSKT75OHMNICKELGOLDPLTD Socket; BNC; female; insulated; straight; 75Ω; soldering; polyester BNC appliance socket, straight 75 Ohm, 5-1634504-2, TE Connectivity TE Connectivity Greenpar 直 75Ω 面板安装 隔板安装 BNC 连接器, 插口, 焊接 端接, 镀镍本体 BNC Ins BHSkt 75Ohm Nickel Gold Pltd |
| 分类 |
商业参数
| 产品 | Connectors | 产品类别 | RF Connectors / Coaxial Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 抗辐射加固 | No | ||
电气参数
| 频率 | 0 to 4 GHz | 阻抗 | 75 Ohm |
| 额定电压 | 500V | 最大频率 | 2GHz |
| 工作电压 | :500V | 接触电阻 | :1.5mohm |
| 击穿电压 | :1500V | 绝缘电阻 | :5000Mohm |
| 连接器类型 - 电压输入 | insulated | ||
机械参数
| 尺寸 | Standard | 深度 | 12.7 mm |
| 重量 | 0.01 | 直径 | 12.7 mm |
| 包装方式 | Bulk | 电缆类型 | :- |
| 本体表面处理 | Nickel | 方向 | Straight |
| 端接方式 | Solder | 基体材料 | Zinc Alloy |
| 外壳颜色 | White | 安装类型 | Panel Mount |
| 行程角度 | Straight | 连接器类型 | Jack, Female Socket |
| 接触镀层 | Gold Over Nickel Over Copper | 紧固类型 | Bayonet Lock |
| 外壳涂层 | Nickel | 安装样式 | Panel |
| 壳体镀层 | Nickel Over Copper | 连接器样式 | BNC |
| 触头材料 | Phosphor Bronze | 总长度 | 26.9 mm |
| 包装数量 | 1 | 主要材料 | BNC |
| 连接器 - 电缆 | socket | 端接样式 | Solder |
| 连接器颜色 | white | 屏蔽层端接方式 | Solder |
| 接触件端接 | Solder Cup | 介电材料 | Polybutylene Terephthalate (PBT), Polyester |
| 绝缘材料 - 材质 | :Zinc | 中心触点镀层工艺 | Gold |
| 中心触点材料 | Phosphor Bronze | 供应商器件封装 | Bulkhead |
| 触点材料 - 镀层 | gold plated | 第一连接器安装类型 | :Panel |
产品信息
| SPG | 1 | 类型 | ZDC/BNC |
| 连接器性别 | RCP | 系列 | :- |
| 产品特性 | Isolated | 极性 | Normal |
| 连接类型 | Wire | 单元数量 | 1 |
| 射频系列/标准 | 1634504 | ||
环境参数
| 插拔次数 | :50 | 工作温度 | -55°C ~ 85°C |
文档与媒体
