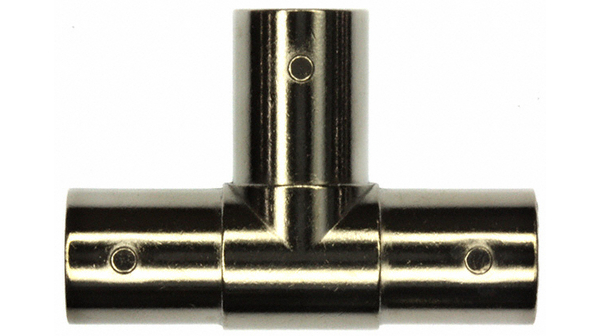

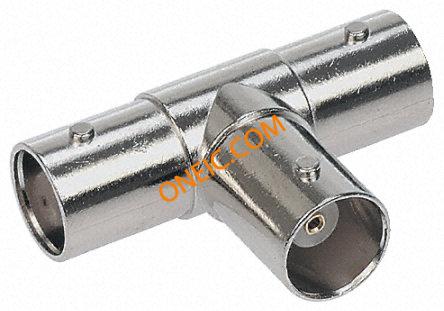

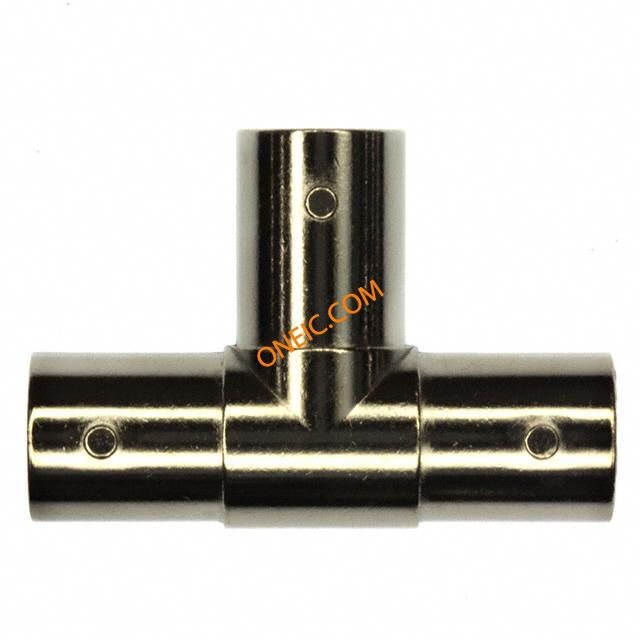

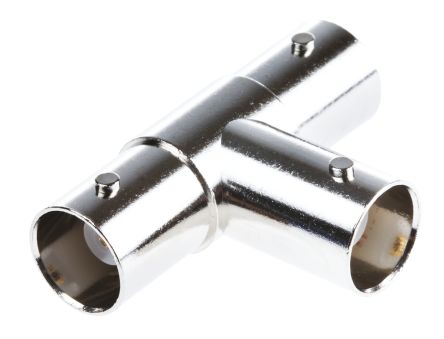

5-1634535-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn BNC RCP/RCP/RCP 0Hz to 4GHz 50Ohm T Style Gold Individual CONN T-ADAPTOR BNC J-J-J 50 OHM BNC T adapter 50ohm Ni plated RF Adapters - Tee T Adp JK-JK-JK Nickel 50Ohm Conn BNC RCP/RCP/RCP 0Hz to 4GHz 50Ohm T Style Gold Individual Search Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 ADAPTOR, BNC, T, 50R BNCTADPJJJ50OHMNICKELPLTD T adapter; BNC socket x3; 50Ω; polymethylpentene (PMP) CONN ADAPT JACK-JACK BNC 50 OHM BNC T-adapter, female/female/female 50 Ohm, 5-1634535-1, TE Connectivity TE Connectivity T 形 50Ω 射频适配器 , 0 → 4GHz, BNC 插座 到 BNC 2 x 插座 BNC TAdp JJJ 50Ohm Nickel Pltd |
| 分类 |
商业参数
| 产品类别 | RF Adapters - Tee | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 抗辐射加固 | No | ||
电气参数
| 频率 | 0 to 4 GHz | 阻抗 | 50 Ohm |
| 转换速率 | Same Series | 最大频率 | :4GHz |
| 频率范围 | DC to 4 GHz | 工作电压 | :500V |
| 接触电阻 | :1.5mohm | 击穿电压 | :1500V |
| 绝缘电阻 | :5000Mohm | 连接器类型 - 电压输入 | BNC sockets |
机械参数
| 深度 | 11 mm | 高度 | 21.5 mm |
| 长度 | 33mm | 重量 | 0.0018 |
| 包装方式 | Bulk | 本体表面处理 | Nickel |
| 基体材料 | Zinc Alloy | 安装类型 | Tee Style |
| 外壳镀层 | Nickel | 行程角度 | Tee |
| 连接器类型 | :BNC Coaxial | 接触镀层 | Gold |
| 外壳涂层 | Nickel | 壳体镀层 | Nickel |
| 触头材料 | Phosphor Bronze | 壳体材料 | Zinc |
| 总长度 | 33 mm | 包装数量 | 1 |
| 主要材料 | Adapter | 介电材料 | Polymethylpentene (PMP) |
| 绝缘材料 - 类型 | Polymethylpentene | 第一连接器极性 | Jack (Female) |
| 第二连接器性别 | Jack (Female) | 绝缘材料 - 材质 | :Zinc |
| 中心触点镀层工艺 | Gold | 中心触点材料 | Phosphor Bronze |
| 供应商器件封装 | Tee Style | 触点材料 - 镀层 | gold plated |
| 第一连接器安装特征 | :Jack | ||
产品信息
| SPG | 1 | 类型 | BNC |
| 样式 | T-Shape | 连接器性别 | RCP/RCP/RCP |
| 射频类型 | BNC | 结构（如双向、串接等） | BNC socket x3 |
| 适配器类型 | Jack to Jack | 中心极性 | Female to Female |
| 适配器系列 | BNC to BNC, Dual | 单元数量 | 1 |
| 射频系列/标准 | 1634535 | 其他规格 | T adapter |
| 转换端（适配器端） | BNC Jack, Female Socket (2) | 转换自（适配器端） | BNC Jack, Female Socket |
环境参数
| 插拔次数 | :50 | 工作温度 | -65C to 85C |
