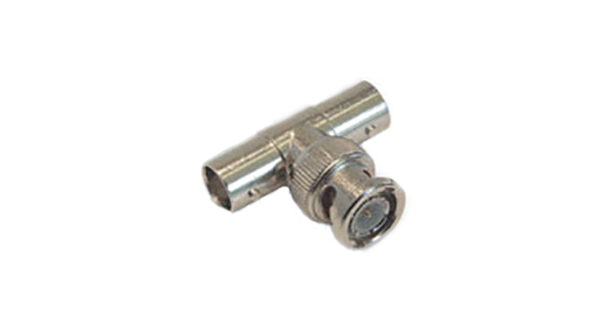

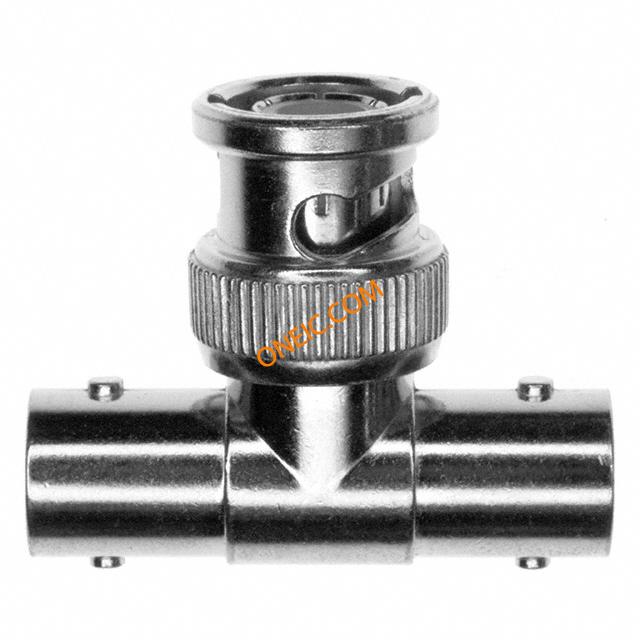

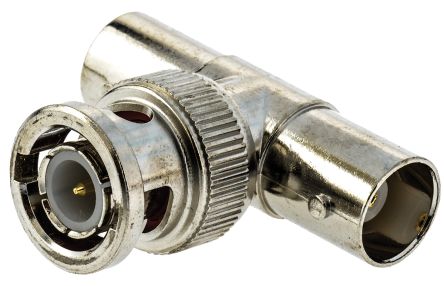

5-1634532-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn ZDC/BNC Adapter RCP/PL/RCP 0Hz to 4GHz 50Ohm T Style Gold Over Nickel Over Copper Individual BNC RF Connectors CONN T-ADAPTOR BNC J-P-J 50 OHM BNC Ni-pl T adaptor RF Adapters - Tee T Adpt JK-PL-JK NKL GLD 50Ohm Conn ZDC/BNC Adapter RCP/PL/RCP 0Hz to 4GHz 50Ohm T Style Gold Over Nickel Over Copper Individual Search Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 ADAPTER, BNC, T, JACK-PLUG-JACK, 50OHM BNCTADPTJPJ50OHMNICKELGOLDPLTD BNC T-adapter, female/male/female 50 Ohm, 5-1634532-1, TE Connectivity TE Connectivity T 形 50Ω 射频适配器 , 0 → 4GHz, BNC 插头 到 BNC 2 x 插座 BNC T Adpt JPJ 50Ohm Nickel Gold Pltd |
| 分类 |
商业参数
| 产品类别 | RF Adapters - Tee | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 抗辐射加固 | No | ||
电气参数
| 频率 | 0 to 4 GHz | 阻抗 | 50 Ohm |
| 转换速率 | Same Series | 最大频率 | :2GHz |
| 频率范围 | DC to 4 GHz | 工作电压 | :500V |
| 接触电阻 | :1.5mohm | 击穿电压 | :1500V |
| 绝缘电阻 | :5000Mohm | ||
机械参数
| 深度 | 32.5 mm | 长度 | 27mm |
| 重量 | 0.01 | 直径 | 13.7 mm |
| 包装方式 | Bulk | 本体表面处理 | Nickel |
| 第二连接器 | BNC | 基体材料 | Zinc Alloy |
| 安装类型 | Tee Style | 外壳镀层 | Nickel |
| 行程角度 | Tee | 连接器类型 | :BNC Coaxial |
| 接触镀层 | Gold Over Nickel Over Copper | 外壳涂层 | Nickel |
| 壳体镀层 | Nickel Over Copper | 触头材料 | Brass |
| 壳体材料 | Zinc | 总长度 | 27 mm |
| 主要材料 | Adapter | 介电材料 | Polyethylene (PE) |
| 绝缘材料 - 类型 | Polyethylene | 第一连接器极性 | Jack (Female) |
| 第二连接器性别 | Jack (Female) | 中心触点镀层工艺 | Gold |
| 中心触点材料 | Brass; Phosphor Bronze | 供应商器件封装 | Tee Style |
| 第一连接器安装特征 | :Plug | ||
产品信息
| 类型 | ZDC/BNC Adapter | 样式 | T-Shape |
| 连接器性别 | RCP/PL/RCP | 射频类型 | BNC |
| 适配器类型 | Plug to Jack | 中心极性 | Female to Male |
| 适配器系列 | BNC to BNC, Dual | 射频系列/标准 | 1634532 |
| 转换端（适配器端） | BNC Jack, Female Socket (2) | 转换自（适配器端） | BNC Plug, Male Pin |
环境参数
| 插拔次数 | :50 | 工作温度 | :+85°C |
