点击放大查看

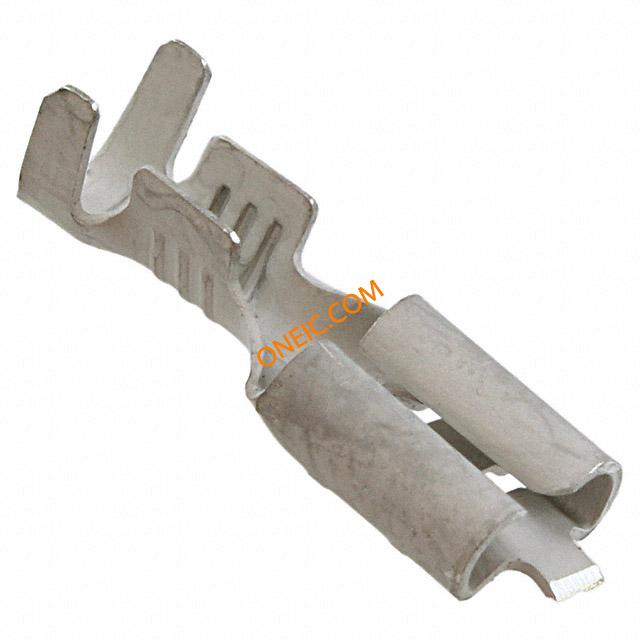

5-160433-6
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 15-20AWG RCP 15mm 5.6mm Tin Strip Terminals RECPT 4.75 x 0.51 mm FASTON Uninsulated Receptacles & Housings CONN RCPT F-CRIMP STRAIGHT Receptacle terminal,FASTON (REEL) Receptacle terminal,FASTON 187,AWG 20-15 Quick Disconnect Terminal 15-20AWG RCP 15mm 5.6mm Tin Strip Product Highlights:ReceptacleTab Fit = 4.75 x 0.51 mmBoard Mount = NoReceptacle Style = StraightInsulation SupportSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, relay connectors, fast-on, AMPIP, Blade Receptacle, Blade Tab, Packard Style Tab, E-SPRING CRIMP TERMINAL, FASTON, 15-20 AWG Receptacleterminal,FASTON(REEL) Faston uninsulated, 0.5...1.5 mm², 20...16 AWG, FASTON-187, 5-160433-6, TE Connectivity TE Connectivity FASTON .187 系列 压接插座 , 4.75 x 0.51mm, 镀锡触芯 FASTON 187 REC 0.5-1.5 MM2 0.32 TPBR |
| 分类 |
商业参数
| 产品 | Faston Terminals | 其他名称 | A107200CT |
| 产品类别 | Terminals | 标准包装数量 | 8,000 |
| 工厂包装数量 | 24000 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| UL列名 | Listed | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 认证机构标志 | Yes |
电气参数
| 量程（°/s） | :TE - FASTON 187 Series | 连接器类型 - 电压输入 | Without |
机械参数
| 表面处理 | Tin | 长度 | 15mm |
| 重量 | 0.01 | 材料（通用） | Brass |
| 包装方式 | Tape & Reel (TR) | 插片宽度 | 4.75 x 0.51 [.187 x .020] |
| 电缆类型 | Regular Wire | 绝缘类型 | Insulated |
| 插片长度 | 0.248" (6.30mm) | 导线线规 | 20-15 |
| 端接方式 | Crimp | 安装类型 | Free Hanging (In-Line) |
| 螺柱/焊片尺寸 | :4.75mm x 0.51mm | 插片厚度 | 0.020" (0.51mm) |
| 端子类型 | Standard | 连接器类型 | Power Connector |
| 接触镀层 | Tin | 连接器样式 | Straight |
| 箔压接区域 | F-Crimp | 插入力 | Normal |
| 触头材料 | Brass | 绝缘颜色 | :Uninsulated |
| 总长度 | Commercial | 刀片材料 | :Brass |
| 包装数量 | Strip | 绝缘高度 | Insulation Support |
| 端接样式 | Crimp | 绝缘直径 | 2.36-3.30 [.093-.130] |
| 绝缘材料 - 材质 | :Uninsulated | 线规或范围 - AWG | :20AWG |
| 线规或范围 - mm² | 0.50-1.50² [20-15.5] | 第二连接器安装特性 | No |
产品信息
| 连接器性别 | Female | 系列 | 187 |
| 制造商全称 | AMP | 产品子类型 | Receptacle |
