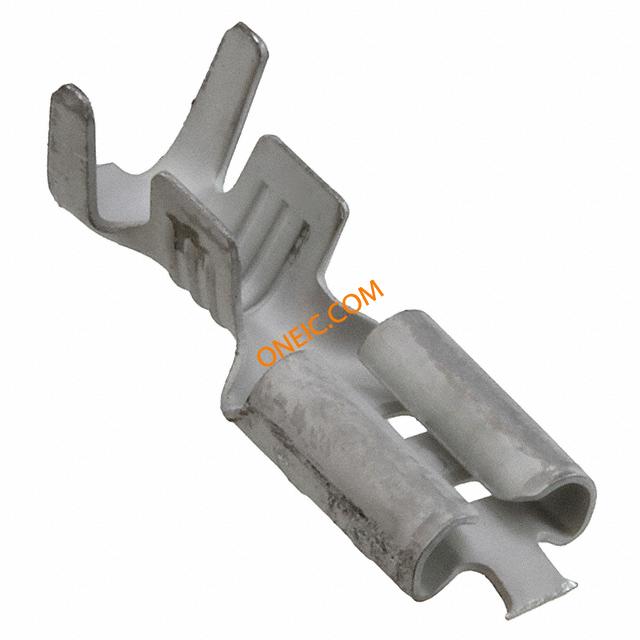

5-160431-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 13-17AWG RCP 15mm 5.6mm Tin Strip Terminals RECPT 4.75 x 0.51 mm FASTON Uninsulated Receptacles & Housings CONN RCPT STR 17-13.5AWG .187 Receptacle terminal FASTON (REEL) Receptacle terminal,FASTON 187,AWG 17-13 Quick Disconnect Terminal 13-17AWG RCP 15mm 5.6mm Tin Strip Product Highlights:ReceptacleTab Fit = 4.75 x 0.51 mmBoard Mount = NoReceptacle Style = StraightInsulation SupportSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, relay connectors, fast-on, AMPIP, Blade Receptacle, Blade Tab, Packard Style Tab, E-SPRING Receptacleterminal,FASTON187,AWG17-13 TE Connectivity FASTON .187 系列 压接插座 , 4.75 x 0.51mm, 镀锡触芯 FASTON 187 REC 1-5 MM2 0.32 PLAIN BR |
| 分类 |
商业参数
| 产品 | Faston Terminals | 其他名称 | A107197CT |
| 产品类别 | Terminals | 标准包装数量 | 12,000 |
| 工厂包装数量 | 24000 | ||
合规参数
| RoHS | RoHS Compliant | UL等级 | 已获认证 |
| UL列名 | Listed | 无铅定义 | Not relevant for lead free process |
| 认可国家 | 是 | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | Yes | ||
电气参数
| 核心类型 | Open | 最大频率 | Multiple |
| 开关功能 | 快速连接 | 连接器类型 - 电压输入 | Without |
机械参数
| 表面处理 | Tin | 长度 | 15mm |
| 材料（通用） | Brass | 包装方式 | Tape & Reel (TR) |
| 插片宽度 | 4.75 x 0.51 [.187 x .020] | 电缆类型 | Regular Wire |
| 绝缘类型 | Non-Insulated | 插片长度 | 0.248" (6.30mm) |
| 导线线规 | 13.5-17 AWG | 端接方式 | Crimp |
| 安装类型 | Free Hanging (In-Line) | 释放力 | 7.1 |
| 插片厚度 | 0.020" (0.51mm) | 端子类型 | Standard |
| 电缆直径 | 2.5mm² | 电缆材料 | Stranded |
| 连接器类型 | Power Connector | 接触镀层 | Tin |
| 连接器样式 | Straight | 连接器用途 | Wire & Cable |
| 箔压接区域 | F-Crimp | 插入件材料 | 黄铜 |
| 插入力 | Normal | 操作力 | 70 |
| 触头材料 | Brass | 总长度 | Commercial |
| 包装数量 | Strip | 导线端接方式 | No |
| 绝缘高度 | Insulation Support | 端接样式 | 母端 |
| 适用端子尺寸 | 3.1 – 4.3 mm [ .12 – .169 in ] | 绝缘直径 | 3.00-4.29 [.118-.169] |
| 绝缘材料 - 类型 | No | 总厚度 | .3 mm [ .012 in ] |
| 焊盘布局尺寸 | 4.75 x 0.51mm | 法兰上方插针尺寸 | 4.75 mm [ .187 in ] |
| 法兰下方引脚尺寸 | .51 mm [ .02 in ] | 线规或范围 - AWG | 13AWG |
| 线规或范围 - mm² | 1.00-2.50² [17-13.5] | 第二连接器安装特性 | No |
| 外径-未扩张 | 4.3 mm [ .169 in ] | ||
产品信息
| 连接器性别 | Female | 系列 | 187 |
| CAD图纸 | 3D CAD Model | 制造商全称 | AMP |
| 产品子类型 | Receptacle | ||
