点击放大查看

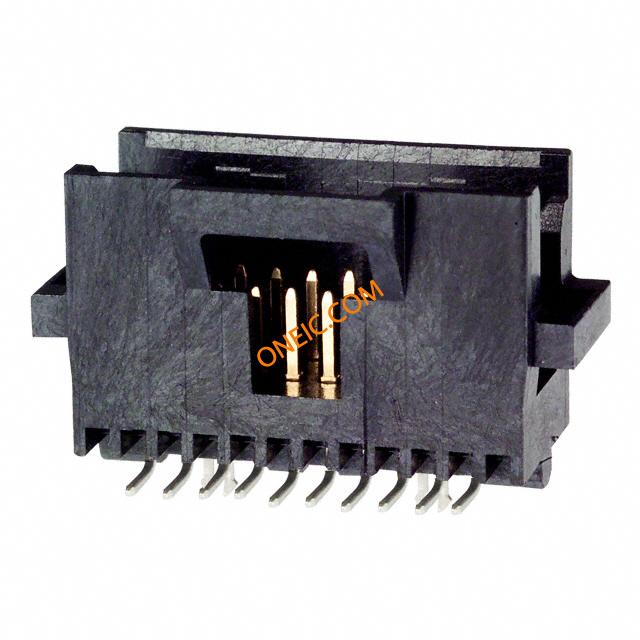

5-104549-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Shrouded Header HDR 20 POS 1.27mm Solder ST SMD Tube .050 X .100 AMPMODU System 50 CONN HEADER 20POS .050" STR GOLD TE Connectivity AMPMODU Series 1.27mm Pitch 20 Way 2 Row Straight PCB Header, Solder Termination Headers & Wire Housings 20 POS SMT HDR VERT DUAL ROW Conn Shrouded Header HDR 20 POS 1.27mm Solder ST SMD Tube Product Highlights:Header AssemblyNumber of Positions = 20Number of Rows = DualShroudedVertical Mount AngleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU HEADER, STR, 20WAY, SM HEADERASSEMBLY,AMPMODU,SYSTEM50,20POSITION,DUALROW,SHROUDED,VERTICAL TE Connectivity AMPMODU System 50 系列 1.27mm节距 20路 (2排) 直 PCB 针座, 焊接端接 , 表面安装 20 SYS50 S/M HDR DRST SHRDSN |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 27 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Reflow solder capable to 245°C, Reflow solder capable to 260°C | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 量程（°/s） | :TE - AMPMODU System 50 Series | 额定电压 | 30 V ac |
| 供电电压 | 30 | 击穿电压 | 500 |
| 绝缘电阻 | 5,000 | 最小供电电压 | 30VAC |
机械参数
| 颜色 | Black | 深度 | 8.73 mm |
| 间距 | 1.27 mm | 高度 | 11.12 mm |
| 重量 | 0.001 | 镀层 | Tin |
| 包装方式 | Tube | 遮蔽类型 | Yes |
| 排间距 | 0.100" (2.54mm) | 端接方式 | Solder |
| 引脚间距 | :1.27mm | 外壳颜色 | Black |
| 安装类型 | Vertical | 连接器类型 | Shrouded |
| 接触镀层 | Gold Over Nickel | 安装样式 | Surface Mount |
| 排数 | 2 | 高度（英寸） | 0.435" (11.05mm) |
| 触头材料 | Phosphor Bronze | 壳体材料 | Thermoplastic Glass Reinforced |
| 总长度 | 18.89 mm | 刀片材料 | Copper Alloy |
| 包装数量 | Tube | 主要材料 | InterconnectSystem |
| 端接样式 | SMD | 触点数 | 20 |
| 接触件端接 | :Solder | 位数 | 20 |
| 接触长度 - 配合 | 0.125" (3.18mm) | 端子柱长度 | 2.54 [0.100] |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 系列 | AMPMODU | 产品特性 | Board Lock |
| 制造商全称 | AMP | 产品子类型 | Header Assembly |
| 加载位置数 | All | ||
环境参数
| 温度范围 | -65 â +105 | 工作温度 | -65C to 105C |
