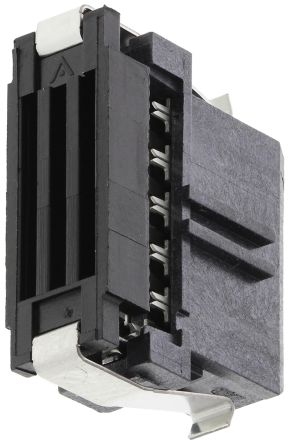

点击放大查看
1-111196-8
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn IDC Connector RCP 20 POS 1.27mm IDT RA Cable Mount .050 X .100 AMPMODU System 50 CONN RECEPT 20POS .050X.100" IDC Ribbon cable conn.rcpt.20 way,1.27mm,blk Headers & Wire Housings 20 POS RECEPT IDC DUAL ROW Conn IDC Connector RCP 20 POS 1.27mm IDT RA Cable Mount Product Highlights:Receptacle AssemblyNumber of Positions = 20Number of Rows = DualWith Mating Connector LockWire/Cable Type = Ribbon CableSearch Keywords:dual beam contact, wire to wire, IDC, latching, signal, pcb connectors, AMPMODU RECEPTACLE, IDC, 20WAY Connectors,ribboncablereceptacle,doublerow,20position TE Connectivity AMP-LATCH System 50 系列 2行 20路 1.27mm节距 母 IDC 连接器 , 电缆安装 20 RCPT SYSTEM 50, LEAD FREE |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Trays |
| 工厂包装数量 | 70 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 材料阻燃等级 | :UL 94V-0 | ||
电气参数
| 量程（°/s） | :TE - AMPMODU System 50 Series | 额定电压 | 30 V ac |
| 开关功能 | Latch | 接触电阻 | 30 mohm |
| 最大额定电流 | 0.5A | 绝缘电阻 | 5000 MOhms |
| 最小供电电压 | 30VAC | 触点额定电流 | :5A |
机械参数
| 颜色 | Black | 深度 | 6.45 mm |
| 间距 | 1.27 mm | 高度 | 14.73 mm |
| 长度 | :14.73mm | 重量 | 0.001 |
| 材料（通用） | :Thermoplastic | 包装方式 | Bulk |
| 导线类型 | Ribbon Cable | 出线方向 | Straight |
| 导线线规 | 30-32 AWG | 排间距 | 0.100" (2.54mm) |
| 端接方式 | IDT | 触头类型 | Female Socket |
| 外壳颜色 | Black | 安装类型 | Free Hanging (In-Line) |
| 外壳镀层 | :Tin | 行程角度 | Right |
| 连接器类型 | Receptacle | 接触镀层 | Gold Over Nickel |
| 紧固类型 | Latch Lock | 安装样式 | Wire |
| 排数 | 2 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Liquid Crystal Polymer | 总长度 | 19.3 mm |
| 主要材料 | InterconnectSystem | 电缆端接方式 | IDC |
| 插针孔直径 | 0.05" | 端接样式 | IDC |
| 第一触头极性 | Socket (Female) | 连接器颜色 | :Black |
| 触点数 | 20 | 接触件端接 | :IDC / IDT |
| 位数 | 20 | 接触镀层厚度 | 30µin (0.76µm) |
| 第一连接器安装类型 | :Cable | ||
产品信息
| 类型 | IDC Connector | 连接器性别 | RCP |
| 系列 | AMP | 产品特性 | Feed Through |
| 硬件配件 | Latch | 制造商全称 | AMPMODU |
| 产品子类型 | Receptacles / Sockets - Housings | 应用细节 | Commercial |
环境参数
| 工作温度 | +105°C | ||
