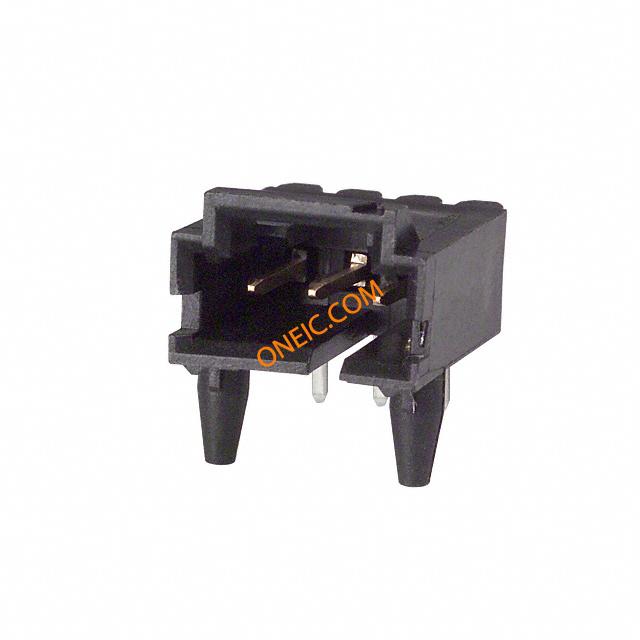

5-104361-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Shrouded Header HDR 3 POS 2.54mm Solder RA Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER RTANG .100 3POS 15AU TE Connectivity MTE Series 2.54mm Pitch 3 Way 1 Row Right Angle PCB Header, Solder Termination, 3A Headers & Wire Housings HDR HI TEMP 3 POS with swage Conn Shrouded Header HDR 3 POS 2.54mm Solder RA Thru-Hole Tube Product Highlights:HeaderWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 3Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE Headerhoriz3waylatch2.54mmAmpModu 03 MTE HDR SRRA LATCH W/HLDWN |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 52 |
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | CSA LR7189, UL E28476 |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 开关功能 | Latched | 接触电阻 | 15 mohm |
| 连接器阻抗 | 刺破式压接 (IDC), 压接 | 最大额定电流 | 3A |
| 绝缘电阻 | 5000 MOhms | 保护额定电压（VPR） | 600 V |
机械参数
| 颜色 | Black | 深度 | 13.59 mm |
| 间距 | 2.54 mm | 高度 | 6.65 mm |
| 长度 | 10.16 mm [ .4 in ] | 包装方式 | Tube |
| 壳体颜色 | 黑色 | 引脚样式 | 直角 |
| 排间距 | 2.54 mm | 端接方式 | Solder |
| 触头类型 | Male Pin | 外壳颜色 | Black |
| 安装类型 | Through Hole, Right Angle | 连接器类型 | Header, Shrouded |
| 接触镀层 | Gold Over Nickel | 触点时序 | Without |
| 安装样式 | Through Hole | 排数 | 1 |
| 壳体镀层 | Tin | 插入件材料 | 黄铜 |
| 触头材料 | Brass | 壳体材料 | Thermoplastic |
| 总长度 | 10.16 mm | 安装特性 | 压具 |
| 包装数量 | 52 | 面板安装类型 | 直角 |
| 端接样式 | Through Hole | 第一触头极性 | Pin (Male) |
| 触点数 | 3 | 端接表面处理 | 带有 |
| 位数 | 3 | 兼容外壳尺寸（如TM-700等） | 母端护套组件 |
| 触头长度-柱 | 3.3 mm [ .13 in ] | 安装孔直径 | 带有 |
| 接触件表面处理 - 配合 | 锡 | 接触长度 - 配合 | 0.230" (5.84mm) |
| 表面贴装焊盘尺寸 | Without | 端子柱长度 | 5.84 mm [ .23 in ] |
| 接触镀层厚度 | 15µin (0.38µm) | 静电放电屏蔽 | 不带 |
产品信息
| 备注 | 使用 91417-1 号键控工具来拆卸用于键控的柱体。 | 类型 | Shrouded Header |
| 连接器性别 | HDR | 系列 | MTE |
| 产品特性 | Board Lock | 产品子类型 | Headers |
| 加载位置数 | All | ||
环境参数
| 工作温度 | - 65 C to + 105 C | 封装热阻 | 1.57 mm [ .062 in ] |
文档与媒体
