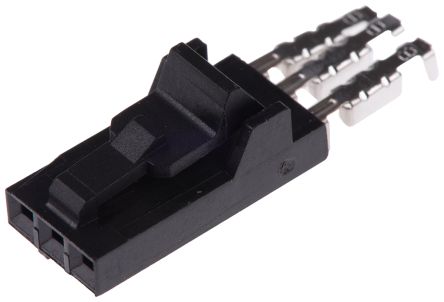

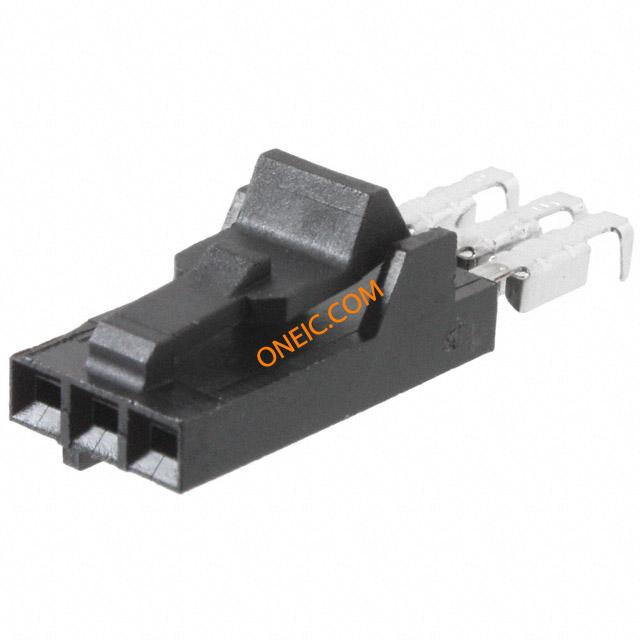

1-103957-3

点击放大查看

1-103957-3

制造商
TE Connectivity Ltd.
描述Conn IDC Connector RCP 3 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RCPT 3POS .100 IDC UNLOAD Housing 3 way receptacle 2.54mm AmpModu Headers & Wire Housings AMPMODU SNG ROW HSG 3 POS POLARIZED Conn IDC Connector RCP 3 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:HousingPreloadedNumber of Positions = 3Housing Type = ReceptacleContact Type = ReceptacleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE Housing3wayreceptacle2.54mmAmpModu TE Connectivity AMPMODU MTE 系列 3路 2.54mm节距 母 IDC 连接器 , 电缆安装 8X3 MTE RCPT SR LATCH .100CL
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

商标名AMPMODU产品类别Headers & Wire Housings
标准包装数量1,512工厂包装数量1

合规参数

RoHSLead free / RoHS Compliant标准编号CSA LR7189, UL E28476
材料阻燃等级UL 94V-0

电气参数

额定电压600 V开关功能Latched
供电电压267 V接触电阻15 mΩ
输入电阻5000连接器阻抗刺破式压接 (IDC), 压接
最大额定电流3 A保护额定电压（VPR）600 VAC

机械参数

颜色Black间距2.54 mm
高度5.08 mm [ .2 in ]长度60.96 mm [ 2.4 in ]
锁定类型锁闩包装方式Tube
导线类型Discrete or Ribbon Cable壳体颜色黑色
导线线规22-26 AWG方向直
排间距2.54 mm端接方式IDT
触头类型Female Socket安装类型Free Hanging (In-Line)
连接器类型Receptacle接触镀层Gold Over Nickel
紧固类型Latch Lock安装样式Wire
排数1压力（PSI）标准
插入件材料磷青铜触头材料Phosphor Bronze
壳体材料Glass Fibre Reinforced Thermoplastic包装数量72
面板安装类型不带端接排数压接
电缆端接方式IDC端接样式Crimp
第一触头极性Socket (Female)触点数3
绝缘直径1.37 mm [ .054 in ]位数3
兼容外壳尺寸（如TM-700等）与接头配合安装孔直径带有
典型触点布局同轴接触镀层厚度15µin (0.38µm)
静电放电屏蔽带有接触件镀层 - 插柱（配合端）亮光

产品信息

备注带状电缆带缺口把手 22-28 AWG, 气动终结器的最大绝缘直径为 1.14 [0.045]。类型IDC Connector
连接器性别RCP系列MTE
产品特性Closed End产品子类型Headers
基础产品编号1-103957适用产品/相关产品PCB Connector

环境参数

测试温度标准部件 - 非辉光导线工作温度- 65 C to + 105 C
