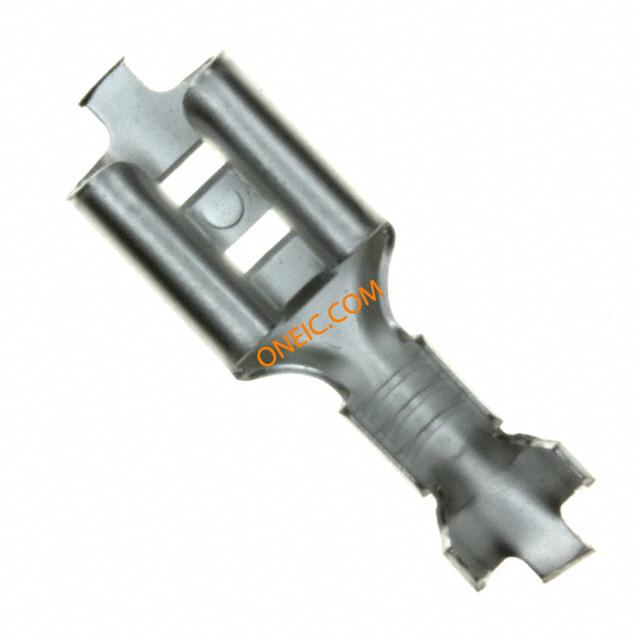

42452-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 16-20AWG F 14.98mm 5.61mm Tin Strip Terminals .187 FAST REC 20-16 FASTON Uninsulated Receptacles & Housings CONN RECEPT FAST 16-20AWG .187 Receptacle terminal,FASTON 187,AWG 20-16 Quick Disconnect Terminal 16-20AWG F 14.98mm 5.61mm Tin Strip Product Highlights:ReceptacleTab Fit = 4.75 x 0.51 mmBoard Mount = NoReceptacle Style = StraightInsulation SupportSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, relay connectors, fast-on, AMPIP, Blade Receptacle, Blade Tab, Packard Style Tab, E-SPRING FASTONPREMIERRECST,.187FASTRECIS20-16TPBR Faston 20-16 AWG Straight Non-Insulated Receptacle Terminal TE Connectivity FASTON .187 系列 压接插座 , 4.75 x 0.51mm, 镀锡触芯 FASTON 187 TERMINAL REC 20-16 TPBR |
| 分类 |
商业参数
| 产品 | Faston Terminals | 零件号别名 | 52930 |
| 产品类别 | Terminals | 标准包装数量 | 20,000 |
| 工厂包装数量 | 20000 | ||
合规参数
| RoHS | RoHS Compliant | UL等级 | 已获认证 |
| UL列名 | Listed | 无铅定义 | Not relevant for lead free process |
| 认可国家 | 是 | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | Yes | ||
电气参数
| 核心类型 | Open | 最大频率 | Single |
| 开关功能 | 快速连接 | 连接器类型 - 电压输入 | Without |
机械参数
| 表面处理 | Tin | 长度 | 0.65in |
| 材料（通用） | Brass | 包装方式 | Reel |
| 插片宽度 | 4.75 x 0.51 [.187 x .020] | 厚度 | 0.30 [0.012] |
| 电缆类型 | Stranded | 绝缘类型 | Not Insulated |
| 插片长度 | 0.250" (6.35mm) | 导线线规 | 20-16 |
| 端接方式 | Crimp | 引脚间距 | 0.250" (6.35mm) |
| 安装类型 | Free Hanging (In-Line) | 螺柱/焊片尺寸 | 0.187 in x 0.02 in |
| 插片厚度 | 0.020" (0.51mm) | 端子类型 | Standard |
| 电缆直径 | 1.3mm² | 电缆材料 | Stranded |
| 连接器类型 | Quick Disconnect Terminal | 接触镀层 | Tin |
| 连接器样式 | Straight | 连接器用途 | Wire & Cable |
| 箔压接区域 | F-Crimp | 插入件材料 | 黄铜 |
| 插入力 | Normal | 触头材料 | Brass |
| 总长度 | Premier | 包装数量 | Strip |
| 导线端接方式 | No | 绝缘高度 | Insulation Support |
| 端接样式 | Crimp | 适用端子尺寸 | 2.29 – 3.3 mm [ .09 – .13 in ] |
| 绝缘直径 | 2.29-3.30 [.090-.130] | 绝缘材料 - 类型 | No |
| 总厚度 | .3 mm [ .012 in ] | 焊盘布局尺寸 | 4.75 x 0.51mm |
| 法兰上方插针尺寸 | 4.75 mm [ .187 in ] | 法兰下方引脚尺寸 | .51 mm [ .02 in ] |
| 接触镀层厚度 | 250, 80 | 线规或范围 - AWG | 16AWG |
| 线规或范围 - mm² | 0.50-1.40² [20-16] | 第二连接器安装特性 | No |
| 外径-未扩张 | 3.3 mm [ .13 in ] | ||
产品信息
| 备注 | Swage outside/front edge of receptacle | 连接器性别 | Female |
| 系列 | 187 | 制造商全称 | AMP |
| 产品子类型 | Receptacle | ||
