点击放大查看

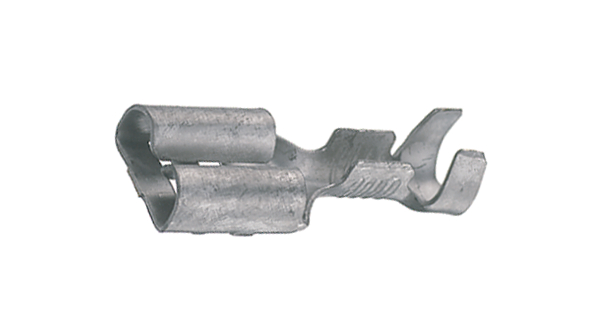

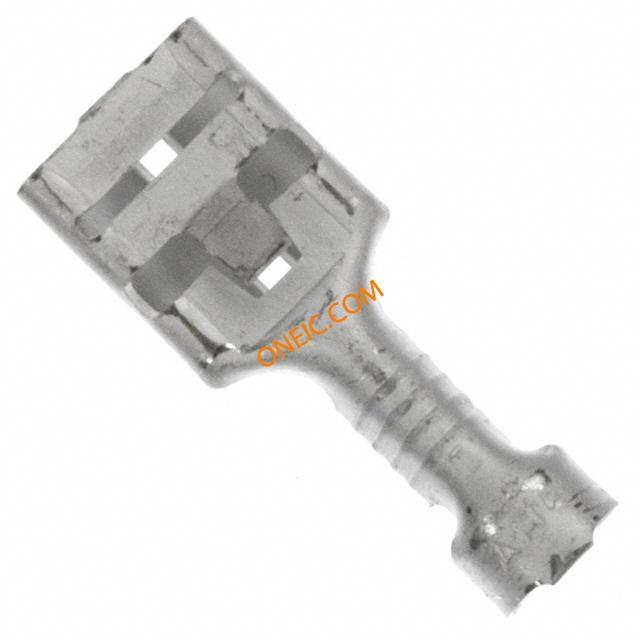

42238-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 14-18AWG RCP 20.32mm Tin Loose Piece Terminals .250x.032 18-14 FAST Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON CONN RECEPT 14-18 AWG FASTON TIN 0.25in crimp receptacle,0.8-2.1sq.mm Quick Disconnect Terminal 14-18AWG RCP 20.32mm Tin Loose Piece Product Highlights:ReceptacleTab Fit = 6.35 x 0.81 mmWire Range = 0.80-2.00² [18-14] mm [AWG]Insulation Diameter = 3.05-4.06 [.120-.160] mm [in]Receptacle Style = StraightSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, terminals and splices, Lighting Interconnection Products, wire to wire, fast-on TERMINAL, FEMALE, 6.35MM, CRIMP RECEPTACLE,.250SERIES,FASTIN-FASTON,18-14AWG,STRAIGHT,F-CRIMP Terminal: flat; 6.3mm; 0.8mm; female; 0.8÷2mm2; crimped; for cable Blade receptacle 6.3×0.8 mm, 42238-2, TE Connectivity TE Connectivity FASTIN-FASTON .250 系列 压接插座 , 6.35 x 0.81mm, 镀锡触芯 FF 250 REC 18-14AWG TPBR PRE CRIMPED |
| 分类 |
商业参数
| 产品 | Faston Terminals | 产品类别 | Terminals |
| 标准包装数量 | 1,000 | 工厂包装数量 | 1000 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 抗辐射加固 | No | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
机械参数
| 颜色 | Green | 宽度 | 6.3mm |
| 表面处理 | Tin | 长度 | 0.8in |
| 重量 | 0.016 | 材料（通用） | Brass |
| 包装方式 | Bulk | 插片宽度 | 6.35 x 0.81 [.250 x .032] |
| 厚度 | 0.30 [0.012] | 电缆类型 | Regular Wire |
| 绝缘类型 | Not Insulated | 导线线规 | 18-14 |
| 端接方式 | Crimp | 基体材料 | Brass |
| 安装类型 | Free Hanging (In-Line) | 螺柱/焊片尺寸 | 0.25 in x 0.032 in |
| 插片厚度 | 0.032" (0.81mm) | 端子类型 | Standard |
| 连接器类型 | Yes | 接触镀层 | Tin |
| 安装样式 | for cable | 封装形式 | Multiple |
| 壳体镀层 | Tin | 连接器样式 | Straight |
| 箔压接区域 | F-Crimp | 插入力 | Normal |
| 材料表面处理 | :- | 触头材料 | Brass |
| 套圈材料 | with a latch | 绝缘颜色 | :- |
| 总长度 | FASTIN-FASTON .250 | 包装数量 | Loose Piece |
| 绝缘高度 | With | 端接样式 | Crimp |
| 绝缘直径 | 3.05-4.06 [.120-.160] | 绝缘材料 - 材质 | :Uninsulated |
| 线规或范围 - AWG | :18AWG | 线规或范围 - mm² | 0.80-2.00² [18-14] |
| 触点材料 - 镀层 | tinned | 外径-未扩张 | :4.06mm |
产品信息
| SPG | 500 | 类型 | Quick Disconnect Ter |
| 连接器性别 | Female | 系列 | 250 |
| 已删除 | Compliant | CAD图纸 | 3D CAD Model |
| 产品子类型 | Receptacle | 单元数量 | 1 |
