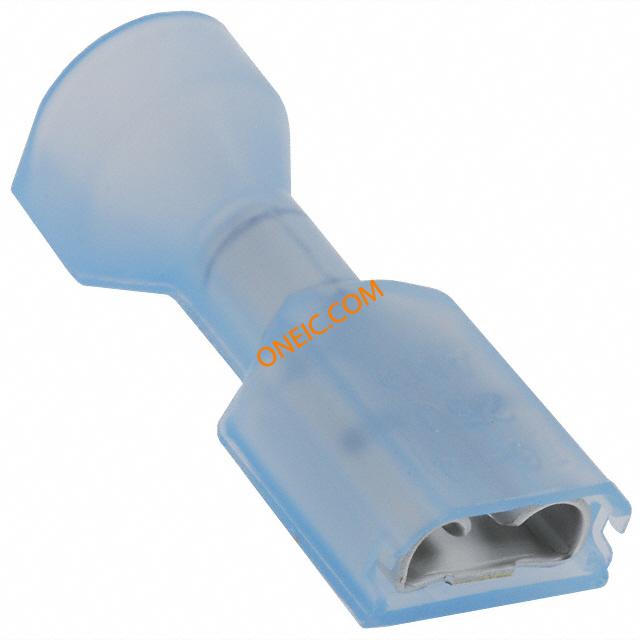

3-520141-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 14-16AWG RCP 23.74mm 10.38mm Tin Loose Piece Terminals ULTRA-FAST 16-14 Ultra-Fast Receptacles & Tabs CONN FAST RECEPT 14-16 AWG .250 Receptacle terminal,Ultra-Fast 250, blue Quick Disconnect Terminal 14-16AWG RCP 23.74mm 10.38mm Tin Loose Piece Product Highlights:ReceptacleProprietary Name = Ultra-FastReceptacle Style = StraightTab Fit = 6.35 x 0.81 mmBrass MaterialSearch Keywords:Ultra-Fast, Ultra-Fast Plus, FASTON, terminal, one piece, fully insulated, receptacle, tab, wire crimp, flag, .187, .250, color coded by wire size, 26-10 AWG CRIMP TERMINAL, FEMALE, 6.3X0.8MM Receptacle;16-14AWG;0.250x0.032;0.260in.(Max.);UL94V-2;Brass;Tin TE Connectivity Ultra-Fast .250 系列 蓝色 绝缘 压接插座 , 6.35 x 0.81mm, 镀锡触芯 ULTRAFAST 250 ASSY REC 16-14 TPBR LP |
| 分类 |
商业参数
| 产品 | Faston Terminals | 产品类别 | Terminals |
| 标准包装数量 | 1,000 | 工厂包装数量 | 1000 |
合规参数
| RoHS | RoHS Compliant | 标准 | RoHSCompliant,ELVCompliant |
| 海关税号 | 85369010 | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-2 |
机械参数
| 颜色 | Blue | 表面处理 | Tin |
| 重量 | 0.105 | 材料（通用） | Brass |
| 包装方式 | Bulk | 插片宽度 | 6.35 x 0.81 [.250 x .032] |
| 绝缘类型 | Insulated | 导线线规 | 16-14 |
| 端接方式 | Crimp | 安装类型 | Free Hanging (In-Line) |
| 螺柱/焊片尺寸 | 0.25 in x 0.032 in | 插片厚度 | 0.032" (0.81mm) |
| 端子类型 | Standard | 连接器类型 | :Crimp Terminal |
| 接触镀层 | Tin | 连接器样式 | Straight |
| 触头材料 | Brass | 壳体材料 | Nylon |
| 绝缘颜色 | :Blue | 总长度 | 0.935" (23.75mm) |
| 包装数量 | Loose Piece | 主要材料 | QuickDisconnect |
| 绝缘高度 | Non-Insulation Support | 连接器颜色 | :Blue |
| 绝缘直径 | 6.60 [.260] Max. | 绝缘材料 - 类型 | Nylon |
| 绝缘材料 - 材质 | Yes | 线规或范围 - AWG | :16AWG |
| 线规或范围 - mm² | 1.25-2.00² [16-14] | 外径-未扩张 | :6.6mm |
产品信息
| 连接器性别 | Female | 系列 | 250 |
| CAD图纸 | 3D CAD Model | 应用 | Standard |
| 产品子类型 | Receptacle | 专有名称 | Ultra-Fast |
环境参数
| 工作温度 | :105°C | ||
