3-1634689-4

点击放大查看

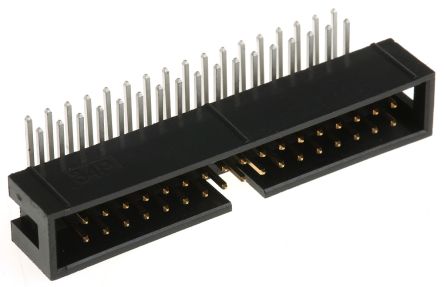

3-1634689-4

制造商
TE Connectivity Ltd.
描述Conn Shrouded Header HDR 34 POS 2.54mm Solder RA Thru-Hole AMP-LATCH Novo Receptacle Connectors TE Connectivity 3-1634689 Series 2.54mm Pitch 34 Way 2 Row Right Angle PCB Header, Solder Termination Headers & Wire Housings BOX HEADER R/A 34P Conn Shrouded Header HDR 34 POS 2.54mm Solder RA Thru-Hole Search Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, BOX, RIGHT ANGLE, 34WAY BOX HEADER RIGHT ANGLE 34 WAY 34wayIDClowprofileboxr/aheader,1A TE Connectivity 2.54mm节距 34路 (2排) 直角 PCB 针座, 焊接端接
分类
连接器解决方案板对板连接器带罩排针连接器
对参数有疑问？问 AI 助手

商业参数

商标名AMP-LATCH其他名称A118459
产品类别Headers & Wire Housings标准包装数量Trays
工厂包装数量600

合规参数

RoHSCompliant海关税号85369010
无铅定义Wave solder capable to 240°C / Wave solder capable to 260°C / Wave solder capabl认证机构:UL
认可国家UL ListedRoHS/ELV合规状态RoHS compliant / ELV compliant
材料阻燃等级UL 94V-0

电气参数

量程（°/s）:TE - AMP-LATCH Series介电强度:500V
最大额定电流1绝缘电阻5000.0

机械参数

颜色Black深度12.49 mm
间距2.54 mm高度9.22 mm
重量0.004材料（通用）:Polyester
包装方式Tray排间距0.100" (2.54mm)
端接方式Solder触头类型Male Pin
引脚间距:2.54mm第二连接器Without
触点形状Square外壳颜色Black
安装类型Right Angle连接器类型Pin Header
接触镀层Gold Over Nickel安装样式Through Hole
排数2封装形式4-Sided
外形（宽 x 高）Low触头材料Phosphor Bronze
壳体材料Thermoplastic - GF总长度50.8 mm
主要材料Brass尺寸/外形0.64 [.025]
端接样式Through Hole第一触头极性Pin (Male)
连接器颜色:Black配接方向Center / Dual Polarizing Bar
触点数34接触件端接:Through Hole Right Angle
位数34配接堆叠高度With
接触长度 - 配合0.228" (5.80mm)端子柱长度3.02
接触镀层厚度10µin (0.25µm)触点材料 - 配合Gold (10)
第一连接器安装类型:Right Angle

产品信息

类型Shrouded Header连接器性别HDR
系列AMP-LATCH产品特性Polarized
制造商全称1634689Series产品子类型Headers
其他规格Without加载位置数All

环境参数

温度额定值Standard工作温度-40.0 - 105.0
