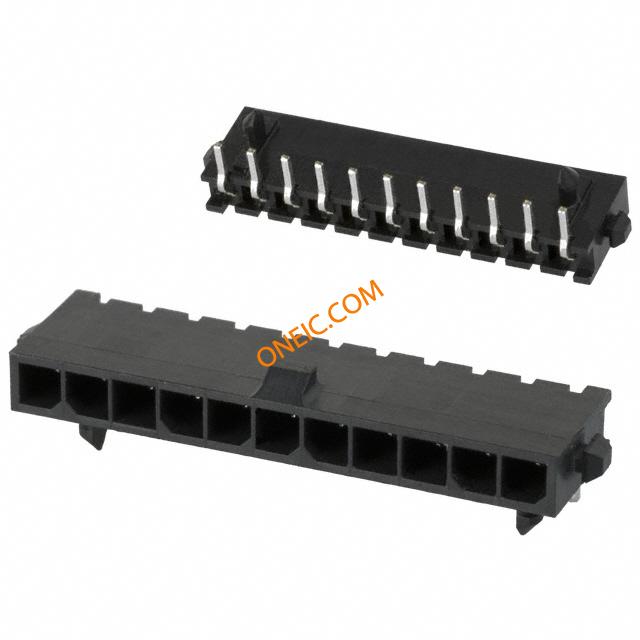

3-1445055-1

制造商	TE Connectivity Ltd.
描述	Pin & Socket Connectors MICRO MNL HDR ASSY S/ROW LF 3mm Centerline, 250V, 5 A max. CONN HEADER 3MM 11POS R/A TIN MICRO MNL HDR ASSY S/ROW LF MICRO MNL HDR ASSY S/ROW LF Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector
分类	连接器解决方案矩形连接器FPC/FFC矩形连接器

对参数有疑问？问 AI 助手

商业参数

标准包装规格

标准包装数量

672

合规参数

RoHS	Lead free / RoHS Compliant	无铅定义	Reflow solder capable to 245Â°C, Reflow solder capable to 260Â°C
RoHS/ELV合规状态	RoHS compliant, ELV compliant	材料阻燃等级	UL 94V-0

机械参数

颜色	Black	间距	0.118" (3.00mm)
包装方式	Tray	端接方式	Solder
触头类型	Male Pin	极化	Without
外壳颜色	Black	安装类型	Right Angle
连接器类型	Header, Shrouded	接触镀层	Matte Tin
紧固类型	Locking Ramp	安装样式	Through-Hole
排数	Single	触头材料	Brass
壳体材料	High Temperature Nylon	位数	11
中心触点材料	3.00 [0.118]	接触镀层厚度	100µin (2.54µm)

产品信息

产品特性	Board Lock	制造商全称	AMP
产品子类型	Header Assembly	加载位置数	All
