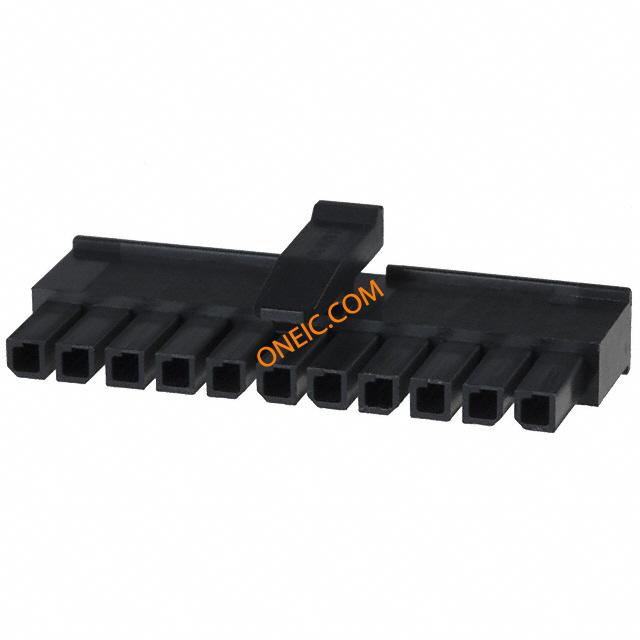

1-1445022-1

点击放大查看

1-1445022-1

制造商
TE Connectivity Ltd.
描述Conn Housing RCP 11 POS 3mm ST 3mm Centerline, 250V, 5 A max. CONN RECEPT 3MM 11POS MATE-N-LOK Pin & Socket Connectors RECPT SINGLE ROW 11P Conn Housing RCP 11 POS 3mm ST Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector MICRO MNL RFECEPT HSG SINGLE R
分类
连接器解决方案矩形连接器电源混合矩形连接器
对参数有疑问？问 AI 助手

商业参数

其他名称A30267产品类别Pin & Socket Connectors
标准包装数量Bulk工厂包装数量10

合规参数

RoHSLead free / RoHS CompliantUL等级获得认可
零件状态E28476无铅定义Not relevant for lead free process
CSA档案号LR7189标准编号CSA, UL
RoHS/ELV合规状态RoHS compliant, ELV compliantUL阻燃等级UL 94V-0
认证机构标志已认证材料阻燃等级UL 94V-0

电气参数

额定电压250 V供电电压250
最大额定电流5 A最小供电电压250VAC

机械参数

颜色Black深度14.04 mm
间距3 mm高度8.7 mm
包装方式Bulk壳体颜色黑色
导线线规(20-24)/(26-30) AWG触头类型Female Socket
外壳颜色Black安装类型Straight
连接器类型Receptacle接触镀层Without
紧固类型Latch Lock安装样式Wire
排数1封装形式Receptacle
外壳材料（壳体）母端, 母端触头材料Phosphor Bronze
壳体材料Nylon总长度34 mm
包装数量1000端接样式Crimp
第一触头极性Socket (Female)触点数11
接触件端接Crimp位数11
中心触点材料3.00 [0.118]典型触点布局直插式

产品信息

备注Contacts Not Provided类型Housing
连接器性别RCP系列Micro Mate-N-Lok
产品子类型Housing

环境参数

工作范围不密封测试温度标准件 - 非灼热丝
工作温度-40C to 105C

文档与媒体

在线文档
1-1445022-1?RQPN=1-1445022-1
