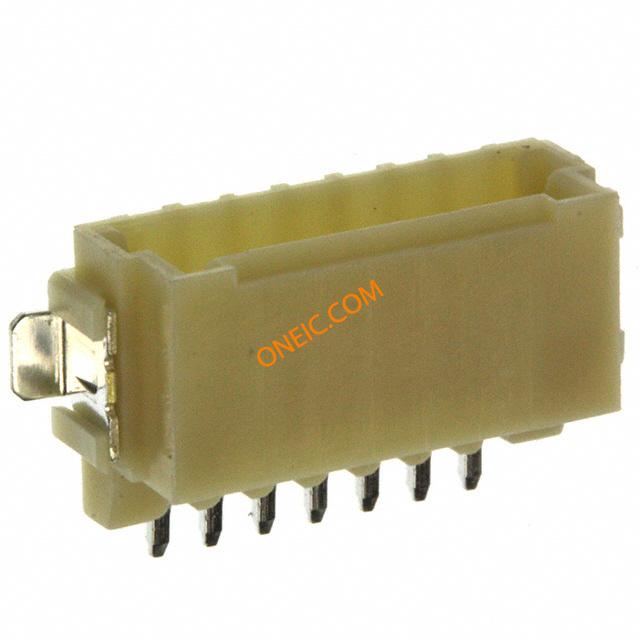

292227-7
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Shrouded Header HDR 7 POS 1.5mm Solder RA SMD Embossed Tape 1.5mm AMP Mini CT CONN HEADER 7POS R/A SMD TIN Headers & Wire Housings 7P SMT HDR R/A MINI Conn Shrouded Header HDR 7 POS 1.5mm Solder RA SMD Embossed Tape Product Highlights:Post HeaderConnector Type = DIP7 PositionWithout Panel AttachmentTerminate To Printed Circuit BoardSearch Keywords:Common Termination, wire-to-board, wire-to-wire, discrete wire, NIC, Network Interface Cards, PC Cards, power, signal, IDC, pcb connectors, CONNECTOR TYPE 1.5 MINI CT SGL H SMT W BOSS 7 |
| 分类 |
商业参数
| 商标名 | COMMON TERMINATION | 其他名称 | A98700CT |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Tape & Reel |
| 工厂包装数量 | 700 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366930 |
| 无铅定义 | Reflow solder capable to 245°C | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 量程（°/s） | :TE - AMP Mini-CT Series | 开关功能 | With |
机械参数
| 颜色 | Beige | 间距 | 1.5 mm |
| 重量 | 0.0001 | 包装方式 | Tape & Reel (TR) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 极化 | Mounting Boss | 触点形状 | Square |
| 安装类型 | Right Angle | 连接器类型 | DIP |
| 接触镀层 | Tin | 安装样式 | Surface Mount |
| 排数 | 1 | 触头材料 | Brass |
| 壳体材料 | Nylon | 总长度 | 1.50 [0.059] |
| 包装数量 | Tape | 面板安装类型 | Without |
| 尺寸/外形 | 0.50 [.020] | 端接样式 | SMD |
| 第一触头极性 | Pin (Male) | 触点数 | 7 |
| 接触件端接 | :Surface Mount Right Angle | 位数 | 7 |
| 接触长度 - 配合 | 0.094" (2.40mm) | ||
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 系列 | Mini CT | 产品特性 | Board Guide |
| 产品子类型 | Post Header | 连接类型 | Printed Circuit Board |
| 加载位置数 | All | ||
文档与媒体
相关型号

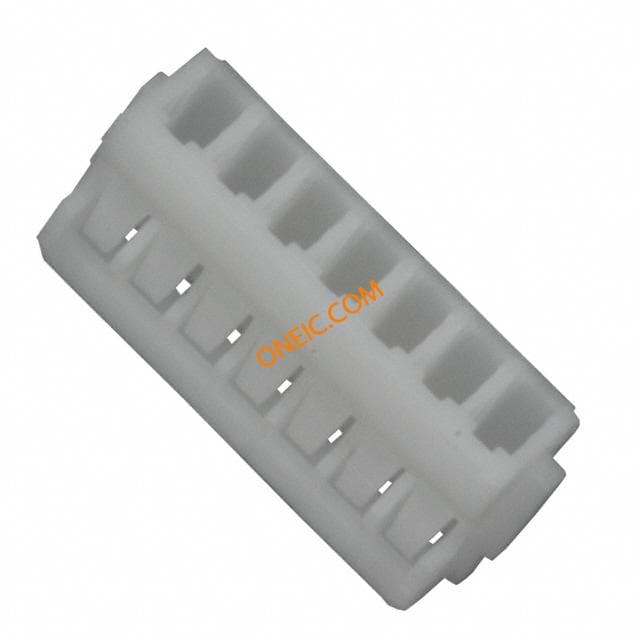

353908-7
te connectivity / amp
Conn Housing RCP 7 POS 1.5mm Crimp ST Box 1.5mm AMP Mini CT CONN RCPT HSNG 7POS 1.5MM CRIMP Headers & Wire Housings RCPT 7 POS WHT MINI CRIMP 1.5mm Conn Housing RCP 7 POS 1.5mm Crimp ST Box Product Highlights:Receptacle HousingConnector Type = CrimpNumber of Positions = 7Without Panel AttachmentNumber of Rows = 1Search Keywords:Common Termination, wire-to-board, wire-to-wire, discrete wire, NIC, Network Interface Cards, PC Cards, power, signal, IDC, pcb connectors, CT REC HSG 7P CRIMP TYPE WHITE

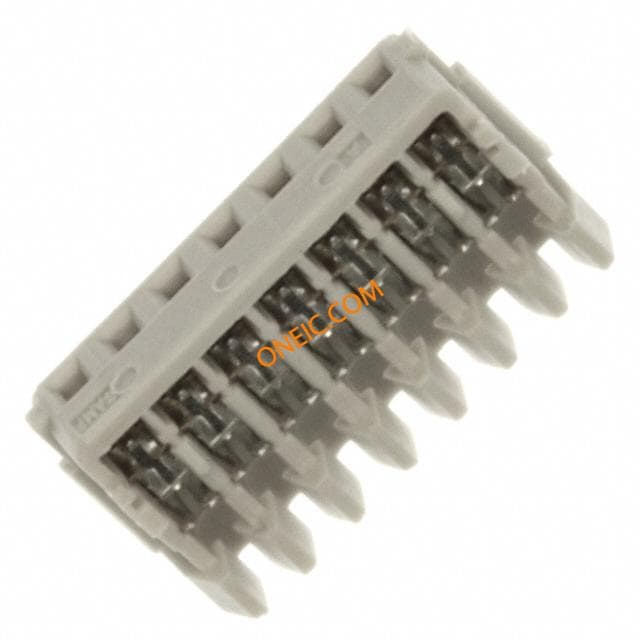

353293-7
