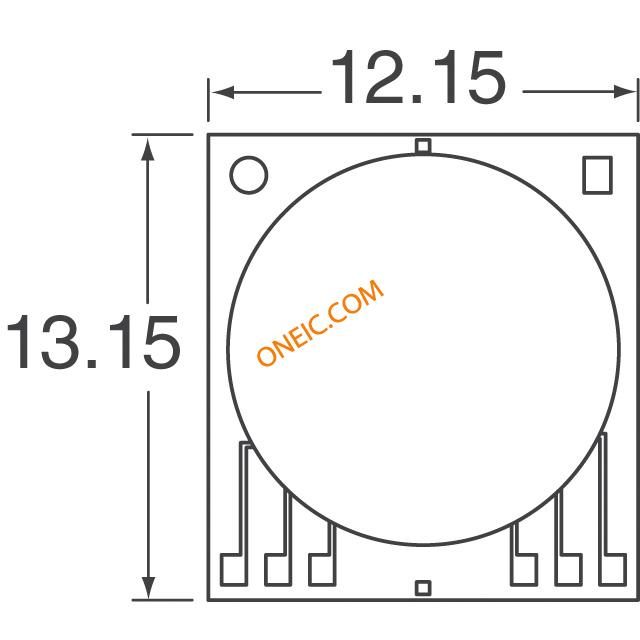

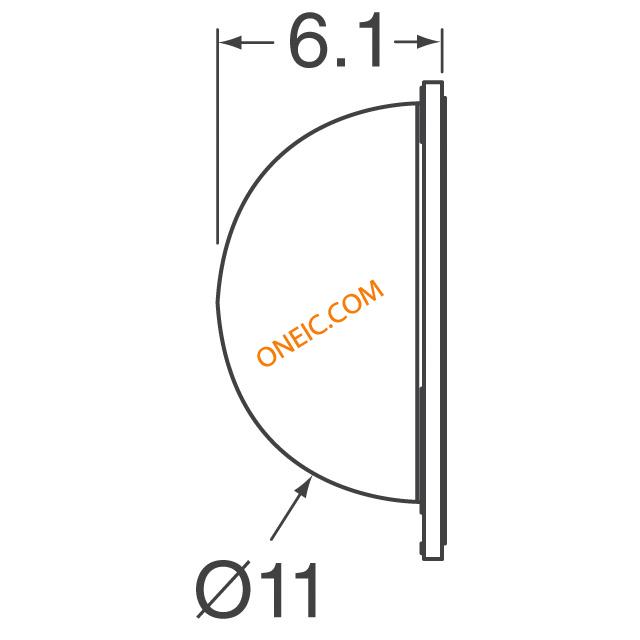

MPLEZW-A1-R100-0000D040H
| 制造商 | Wolfspeed, Inc. |
| 描述 | High Power LEDs - White White, 900Lf min LED NEUTRAL WHITE 4000K SMD |
| 分类 |
商业参数
| 其他名称 | MPLEZW-A1-R100-0000D040HTR | 标准包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 视角 | 125° | 输出电流 | 3 x 150mA |
| 供电电压 | 25V | 最大额定电流 | 3 x 250mA |
| 光效 @ 测试电流 | 84 lm/W | 25°C时测试电流下的光通量 | 950 lm (900 lm ~ 1000 lm) |
| 光通量 @ 85°C, 测试电流 | 713 lm | ||
机械参数
| 包装方式 | Tape & Reel (TR) | 灯颜色 | 4000 K |
| 安装类型 | Surface Mount | 封装形式 | 6-SMD, No Lead |
| 照明颜色 | Neutral White | 显色指数（CRI） | 80 |
产品信息
| 色温 (K) | 4000K (3938K ~ 4063K) 2-Step MacAdam Ellipse | ||
环境参数
| 光通量 @ 电流/温度 | 1235 lm | ||
文档与媒体
相关型号

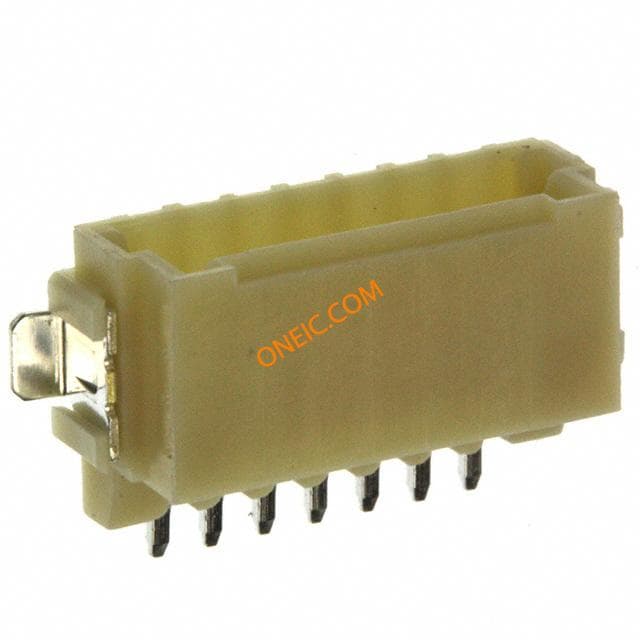

292227-7
