284046-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Terminal Block F 2 POS 5mm Screw ST Cable Mount 15A/Contact Pluggable Terminal Blocks TERMI-BLOK V PLUG STACK Terminal Block Connectors TERM BLOCK PLUG 2POS 90DEG 5MM TERMI-BLOK VERTICAL PLUG STACK TERMI-BLOK VERTICAL PLUG STACK Search Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end |
| 分类 |
商业参数
| 产品 | Pluggable Terminal Blocks | 标准包装规格 | 300 |
| 标准包装数量 | Bulk | 工厂包装数量 | 300 |
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 电流 | 15A | 电压 | 300V |
| 额定电压 | 300 VAC | 供电电压 | 300 |
| 额定交流电压 | 300 | 跳闸电流 | 15 |
| 最大额定电流 | 15 A | ||
机械参数
| 颜色 | Green | 间距 | 5 mm |
| 包装方式 | Bulk | 壳体颜色 | 绿色 |
| 出线方向 | 侧 | 引脚样式 | Side |
| 螺钉尺寸 | M3 | 导线线规 | 12-30 AWG |
| 端接方式 | Screw | 第二连接器 | 否 |
| 外壳颜色 | Green | 安装类型 | Cable Mount |
| 连接器类型 | Plug (right-hand) | 接触镀层 | Tin |
| 法兰特征 | Without | 排数 | 1 |
| 螺丝材料 | Brass | 插入件材料 | 磷青铜 |
| 插头进线方向 | 90° | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polyamide (PA) | 包装数量 | 300 |
| 连接器间距 | Side | 触点数 | 2 |
| 位数 | 2 | 接线端子类型 | Plug, Female Sockets |
| 端子螺钉表面处理 | 镍 | 螺纹/螺钉/孔尺寸 | 黄铜 |
| 中心触点材料 | 5.00 [0.197] | 螺钉材料 - 镀层 | Nickel |
| 线规或范围 - AWG | 30-12 | 线规或范围 - mm² | 12 |
产品信息
| 类型 | Terminal Block | 连接器性别 | F |
| 产品特性 | Retention Latches (Wire Side) | 制造商全称 | Buchanan |
| 产品子类型 | Connector | 侧面可堆叠 | Yes |
| 层数 | 1 | 级数 | 不带 |
| 互连系统 | Without | 每层位数 | 2 |
| 并排堆叠 | 是 | ||
文档与媒体
相关型号
284056-2
te connectivity / amp
Conn Shrouded Header HDR 2 POS 5mm Solder ST Thru-Hole Pluggable Terminal Blocks HDR 2P VERT 5mm Terminal Block Connectors TERM BLOCK HDR 4POS VERT 5MM Conn Shrouded Header HDR 2 POS 5mm Solder ST Thru-Hole Search Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end TERMI-BLOK HDR 180, 5MM P.MULT
282822-2
te connectivity / amp

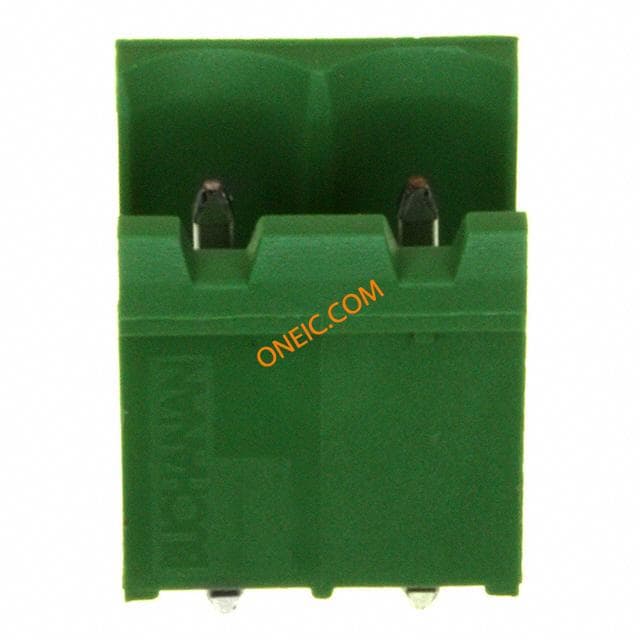

Conn Shrouded Header HDR 2 POS 5mm Solder ST Thru-Hole Terminal Block Connectors TERM BLOCK HDR 2POS VERT 5MM Pluggable Terminal Blocks HEADER ASSY 90 2P TERMI-BLOK HEADER,ASSY90 2P. TERMI-BLOK HEADER,ASSY90 2P. Search Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end TE Connectivity Buchanan 系列 5mm 节距 2 路 公 绿色 直 PCB 管座, 面板安装, 焊接端接
796864-2
te connectivity / amp

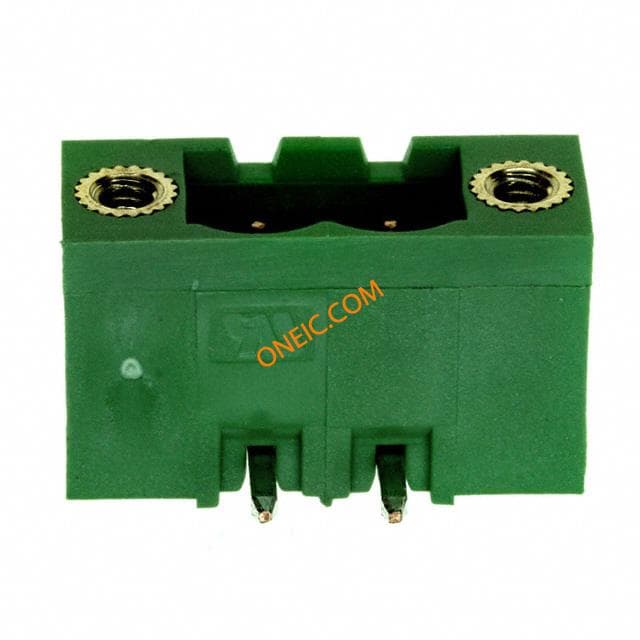

Conn Shrouded Header HDR 2 POS 5mm Solder RA Thru-Hole Terminal Block Connectors TERM BLOCK HDR 2POS R/A 5MM Pluggable Terminal Blocks HDR 2 POS R/A 5MM Terminal Block Connectors Product Highlights:ConnectorConnector Type = HeaderShroudedHousing Color = GreenNot Side StackableSearch Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end 2 POS TERMI-BLOK HDR RT ANGLE
796642-2
te connectivity / amp

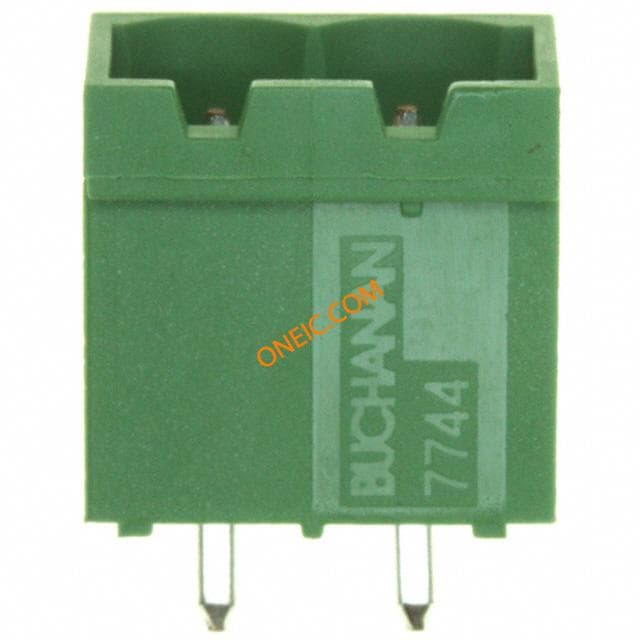

Conn Shrouded Header HDR 2 POS 5mm Solder ST Thru-Hole Terminal Block Connectors TERM BLOCK HDR 2POS VERT 5MM Pluggable Terminal Blocks 2POS 5.0MM CE VRT HD Conn Shrouded Header HDR 2 POS 5mm Solder ST Thru-Hole Search Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end TERMINAL BLOCK, HEADER, 5MM, 2WAY 2POS 5.0MM CE VRT HDR,TRM BLK
284052-2
te connectivity / amp
Conn Shrouded Header HDR 4 POS 5mm Solder RA Thru-Hole Pluggable Terminal Blocks TERMI-BLOK HEADER ASSY 11P 7 Terminal Block Connectors TERM BLOCK HDR 4POS R/A 5MM Conn Shrouded Header HDR 4 POS 5mm Solder RA Thru-Hole Search Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end TERMI-BLOK HDR 90 5MM P.MULT.M
282812-2
te connectivity / amp
Conn Shrouded Header HDR 2 POS 5mm Solder RA Thru-Hole Pluggable Terminal Blocks TERMI-BLOK HEADER AS Terminal Block Connectors TERM BLOCK HDR 2POS R/A 5MM Conn Shrouded Header HDR 2 POS 5mm Solder RA Thru-Hole Product Highlights:ConnectorConnector Type = HeaderShroudedHousing Color = GreenSide StackableSearch Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end TERMI-BLOK HEADER,ASSY 2P. 5
796644-2
te connectivity / amp
Conn Shrouded Header HDR 2 POS 5mm Solder RA Thru-Hole TERM BLOCK HDR 2POS R/A 5MM Pluggable Terminal Blocks 5.0MM RA HDR 2 PIN Conn Shrouded Header HDR 2 POS 5mm Solder RA Thru-Hole Product Highlights:ConnectorConnector Type = HeaderShroudedHousing Color = GreenNot Side StackableSearch Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end 2POS 5.0MM CE R/A HDR,TRM BLK
282821-2
te connectivity / amp
Conn Shrouded Header HDR 2 POS 5mm Solder ST Thru-Hole Pluggable Terminal Blocks TERMI-BLOK HEADER ASSY90 2P. Terminal Block Connectors TERM BLOCK HDR 2POS VERT 5MM Conn Shrouded Header HDR 2 POS 5mm Solder ST Thru-Hole Search Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end TERMI-BLOK HEADER,ASSY90 2P.
282811-2
te connectivity / amp

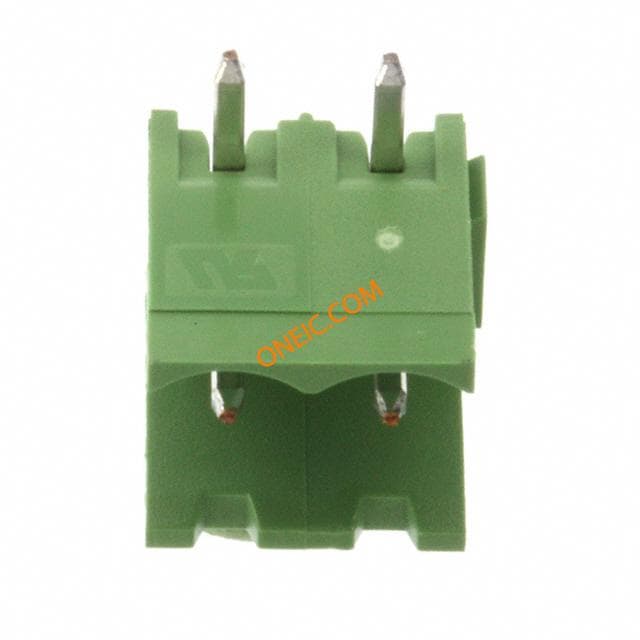

Conn Shrouded Header HDR 2 POS 5mm Solder RA Thru-Hole Terminal Block Connectors TERM BLOCK HDR 2POS R/A 5MM Termi-Block Header 2 way pcb r/a Pluggable Terminal Blocks HEADER ASSY 90 2P Conn Shrouded Header HDR 2 POS 5mm Solder RA Thru-Hole Product Highlights:ConnectorConnector Type = HeaderShroudedHousing Color = GreenNot Side StackableSearch Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end TERMI-BLOCKHEADER2WAY 2 Position Green Shrouded Right Angle Terminal Block Header TE Connectivity Buchanan 系列 5mm节距 2路 (1排) 直角 印刷电路板接线端子块, 焊接端接, 15A , 通孔 TERMI-BLOK HEADER ASSY90 2P.
