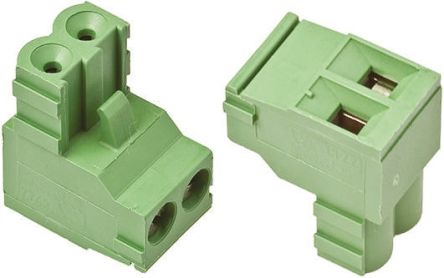

282805-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Terminal Block F 2 POS 5mm Screw RA Cable Mount 15A/Contact Pluggable Terminal Blocks TERMI-BLOK PLUG STACKING 8POS. Terminal Block Connectors TERM BLOCK PLUG 2POS STR 5MM Termi-Block Plug 2 way 30-12AWG Terminal Block Connectors Product Highlights:ConnectorConnector Type = PlugNot ShroudedHousing Color = GreenSide StackableSearch Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end Termi-BlockPlug2way30-12AWG TE Connectivity Buchanan 系列 5mm 节距 2 路 母 绿色 直角 插头, 电缆安装, 螺钉拧紧端接 TERMI-BLOK PLUG STACKING 2POS. |
| 分类 |
商业参数
| 产品 | Pluggable Terminal Blocks | 标准包装规格 | 300 |
| 标准包装数量 | Bulk | 工厂包装数量 | 300 |
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 电流 | 15A | 电压 | 300V |
| 额定电压 | 300 VAC | 极数 | 2Poles |
| 供电电压 | 300 | 额定交流电压 | 300 |
| 跳闸电流 | 15 | 最大额定电流 | 15 A |
机械参数
| 颜色 | Green | 深度 | 15.5mm |
| 间距 | 5 mm | 宽度 | 18.4mm |
| 长度 | 10mm | 材料（通用） | Nylon |
| 包装方式 | Bulk | 遮蔽类型 | No |
| 壳体颜色 | 绿色 | 出线方向 | 侧 |
| 引脚样式 | Side | 螺钉尺寸 | M3 |
| 导线线规 | 12-30 AWG | 方向 | 直角 |
| 端接方式 | Screw | 第二连接器 | 是 |
| 外壳颜色 | Green | 安装类型 | Cable Mount |
| 连接器类型 | Plug | 接触镀层 | Tin |
| 法兰特征 | Without | 排数 | 1 |
| 螺丝材料 | Brass | 插入件材料 | 磷青铜 |
| 插头进线方向 | 180° | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polyamide (PA) | 包装数量 | 300 |
| 主要材料 | PCB | 端接排数 | 螺钉拧紧 |
| 插针孔直径 | 5mm | 连接器间距 | Side |
| 连接器颜色 | Green | 触点数 | 2 |
| 位数 | 2 | 接线端子类型 | Plug, Female Sockets |
| 进线位置 | Side | 端子螺钉表面处理 | 镍 |
| 螺纹/螺钉/孔尺寸 | 黄铜 | 中心触点材料 | 5.00 [0.197] |
| 螺钉材料 - 镀层 | Nickel | 线规或范围 - AWG | 30-12 |
| 线规或范围 - mm² | 12 | ||
产品信息
| 类型 | Terminal Block | 级别 | SingleLevel |
| 连接器性别 | F | 系列 | Eurostyle |
| 产品特性 | Retention Latches (Non-Wire Side), Side Stacking (Interlocking) | 制造商全称 | Buchanan |
| 产品子类型 | Connector | 侧面可堆叠 | Yes |
| 层数 | 1 | 互连系统 | With |
| 每层位数 | 2 | 并排堆叠 | 是 |
