点击放大查看

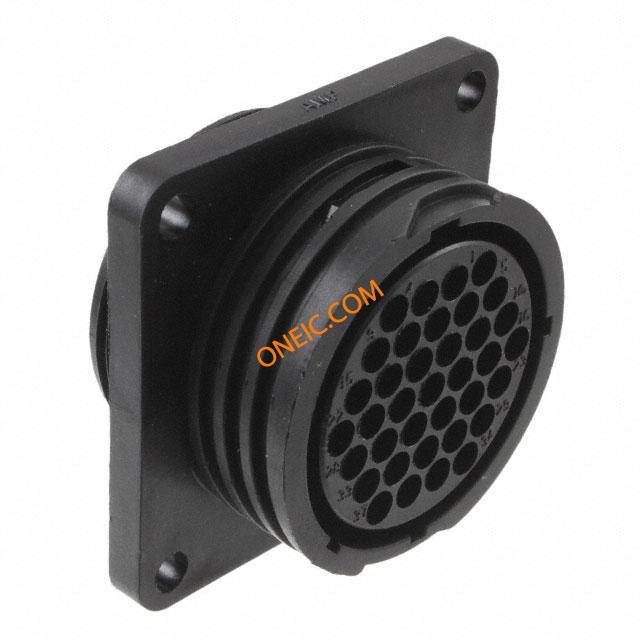

213864-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn CPC SKT 37 POS Crimp ST Panel Mount 37 Terminal 1 Port CPC Connectors CONN CPC RCPT HSNG 37POS REV Standard Circular Connector REC SKT 23-37 PNL Conn CPC SKT 37 POS Crimp ST Panel Mount 37 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 37ReceptacleFor Use With Socket ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC 23-37 RCPT HSG,REV SEX,CPC |
| 分类 |
商业参数
| 商标名 | CPC Series 1 | 产品类别 | Standard Circular Connector |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 合规性 | No |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| UL阻燃等级 | UL 94V-0 | 认证机构标志 | 否 |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 防溅等级 | 无 | 通道数量 | 37 |
| 连接器类型 - 电压输入 | 反向 | ||
机械参数
| 密封型 | No | 外形尺寸(长x宽) | 23 |
| 包装方式 | Bulk | 壳体颜色 | 黑色 |
| 外壳尺寸 | 23 | 方向 | B |
| 外壳样式 | Receptacle | 端接方式 | Crimp |
| 螺纹尺寸 | 1-3/8 - 18 UNEF-2A | 触点尺寸 | 16 |
| 触头类型 | Crimp | 外壳颜色 | Black |
| 安装类型 | Panel Mount | 连接器类型 | Receptacle for Female Contacts |
| 紧固类型 | Threaded | 安装样式 | Panel |
| 引脚数 | 0 | 外壳材料（壳体） | 母端, 母端 |
| 连接器样式 | Receptacle | 壳体材料 | Nylon |
| 包装数量 | 1 | 面板安装类型 | Square Flange |
| 端接样式 | Wire | 第一触头极性 | Socket |
| 配接方向 | Keyed | 触点数 | 37 |
| 端接表面处理 | 带有 | 绝缘直径 | 2.54 [0.100] |
| 位数 | 37 | 外壳尺寸-插件 | All Plastic |
| 螺纹/无螺纹 | Without | 安装孔直径 | 带有 |
| 外壳材料及表面处理 | Thermoplastic | 第一连接器安装类型 | Panel |
| 第二连接器安装特性 | Reverse | ||
产品信息
| 备注 | 4 Locating Key Arrangement. | 类型 | CPC |
| 连接器性别 | RCP | 系列 | Series 1 |
| 钥匙类型 | B | 预加载 | No |
| 产品子类型 | Connector | 其他规格 | Without |
| 适用产品/相关产品 | Socket Contacts | ||
环境参数
| 工作范围 | 不密封 | ||
