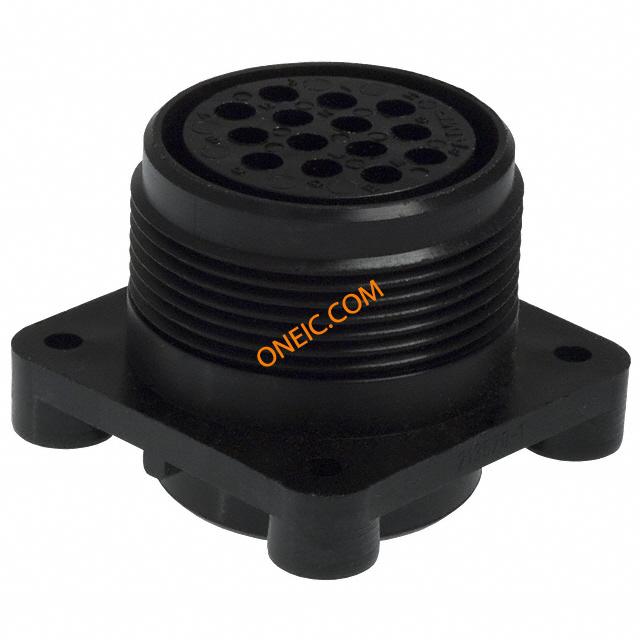

点击放大查看
213570-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn MIL-C-5015 Circular SKT 14 POS Crimp ST Panel Mount 14 Terminal 1 Port CPC Connectors CONN RECEPT CPC 14POS REVERSE Standard Circular Connector CPC RCPT 20-14 Conn MIL-C-5015 Circular SKT 14 POS Crimp ST Panel Mount 14 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 14ReceptacleFor Use With Socket ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CIRCULAR CONNECTOR RCPT SIZE 20, 14POS, PANEL ConnectorHousing;CPCReceptacle;14Pos;Sz20;MIL-C-5015;PanelMnt;RevSex CPC RECPT 20-14 SPECIAL |
| 分类 |
商业参数
| 交货时间 | 126 Days | 商标名 | CPC Series 1 |
| 子类别 | Connector Circular | 产品类别 | Standard Circular Connector |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
| 合规性 | No | 无铅定义 | Not relevant for lead free process |
| 认证机构 | ULRecognized/CSA | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
电气参数
| 通道数量 | 14 | ||
机械参数
| 颜色 | Black | 密封型 | No |
| 重量 | 0.018 | 包装方式 | Bulk |
| 外壳尺寸 | 20 | 方向 | Keyed |
| 外壳样式 | Plastic | 端接方式 | Crimp |
| 螺纹尺寸 | 1 1/4 - 18 UNEF-2A | 触点尺寸 | 16 |
| 触头类型 | Crimp | 外壳颜色 | Black |
| 安装类型 | Panel Mount | 行程角度 | Straight |
| 连接器类型 | Receptacle for Female Contacts | 紧固类型 | Threaded |
| 安装样式 | Panel | 连接器样式 | Receptacle |
| 本体材料 | :Nylon (Polyamide) | 壳体材料 | Polyamide |
| 面板安装类型 | Square Flange | 主要材料 | 5015Commercial |
| 端接样式 | Wire | 第一触头极性 | Socket |
| 配接方向 | Keyed | 触点数 | 14 |
| 位数 | 14 | 外壳尺寸-插件 | All Plastic |
| 安装孔直径 | 0.125" | 外壳材料及表面处理 | Polyamide |
| 第一连接器安装类型 | :Panel | 第二连接器安装特性 | Reverse |
产品信息
| 备注 | Contacts Not Provided | 类型 | MIL-C-5015 Circular |
| 连接器性别 | RCP | 系列 | MIL-C-5015 |
| 产品特性 | ReverseGender | 预加载 | No |
| 排列方式 | 20-14 | 制造商全称 | MIL-C-5015 |
| 产品子类型 | Connector | 应用细节 | Commercial |
| 适用产品/相关产品 | Socket Contacts | ||
