点击放大查看

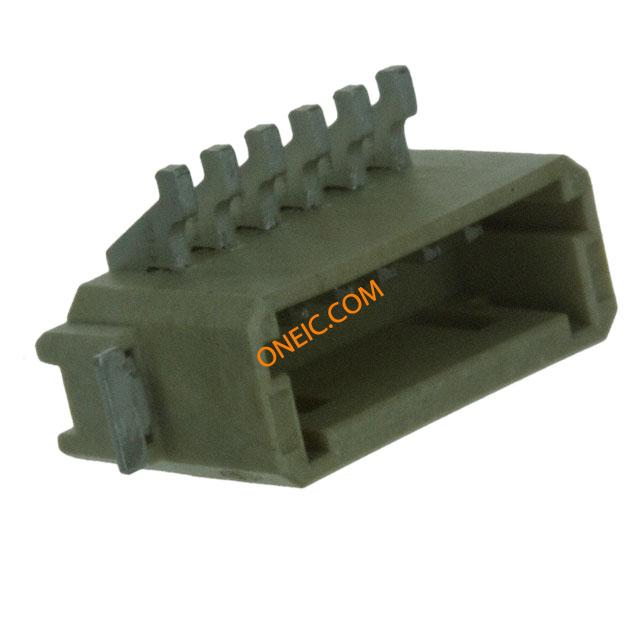

2106091-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Wire to Board RCP 6 POS 1.5mm Solder ST SMD LED Interconnects CONN HEADER 6POS T/H SMD 1.5MM Lighting Connectors 6P INVERTED SMT THRU BOARD 2106091-5 Conn Wire to Board RCP 6 POS 1.5mm Solder ST SMD Search Keywords:Thru-board connector, Through-board connector, SMT thru-board connector, SMT connector, Inverted SMT, Inverted connector, LED connector, lighting connector, light connector, LED, LED lights, Thruboard, Thru board, Through board, Through-board, Throughboard CONNECTOR, HERMAPHRODITIC, 6WAY Header, straight Pitch1.5 mm Poles 6 Mini-CT, 2106091-5, TE Connectivity 6 pos Inverted Thru Board SMT Header |
| 分类 |
商业参数
| 产品 | Connectors | 其他名称 | A99874CT |
| 产品类别 | Lighting Connectors | 标准包装数量 | Tape & Reel |
| 工厂包装数量 | 1350 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85412100 |
| UL档案号 | E28476 | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 量程（°/s） | :- | 额定电压 | 70 V |
| 最大额定电流 | 3.0 | 最小供电电压 | 50.0 |
机械参数
| 间距 | 1.5 mm | 宽度 | 7.25 |
| 长度 | 15.11 | 密封型 | No |
| 重量 | 0.01 | 材料（通用） | :High Temp. Thermoplastic |
| 包装方式 | Tape & Reel (TR) | 尾部类型 | In-line |
| 电缆类型 | Discrete Wire | 端接方式 | Solder |
| 触头类型 | Pin | 引脚间距 | :1.5mm |
| 安装类型 | Boardlock(s) | 连接器类型 | Header |
| 接触镀层 | Tin Over Nickel | 排数 | 1 |
| 壳体镀层 | Matte Tin-Lead over Nickel | 连接器样式 | Inverted |
| 高度（英寸） | 6.9 | 触头材料 | Copper Alloy |
| 壳体材料 | Thermoplastic | 先合后断 | No |
| 端接样式 | Surface Mount | 连接器颜色 | :Natural |
| 触点数 | 6 | 接触件端接 | :Surface Mount Right Angle |
| 位数 | 6 | 中心触点表面处理 | 1.5 |
| 柱体长度（配合） | 2.4 | 接触镀层厚度 | 4.0 |
产品信息
| 类型 | Wire to Board | 连接器性别 | RCP |
| 系列 | SlimSeal | 产品特性 | Board Lock |
| 方向 | Inverted | 编码、键控 | No |
| 测量制式 | 6.9 | 其他规格 | Yes |
| 应用细节 | Through Board | 加载位置数 | All |
环境参数
| 插拔次数 | Without | 工作温度 | :105°C |
相关型号
353908-6
te connectivity / amp
Conn Housing RCP 6 POS 1.5mm Crimp ST Box 1.5mm AMP Mini CT CONN RCPT HSNG 6POS 1.5MM CRIMP Receptacle housing, 1.5mm,6 way,Mini-CT Headers & Wire Housings RCPT 6 POS WHT MINI CRIMP 1.5mm Conn Housing RCP 6 POS 1.5mm Crimp ST Box Product Highlights:Receptacle HousingConnector Type = CrimpNumber of Positions = 6Without Panel AttachmentNumber of Rows = 1Search Keywords:Common Termination, wire-to-board, wire-to-wire, discrete wire, NIC, Network Interface Cards, PC Cards, power, signal, IDC, pcb connectors, Receptaclehousing,1.5mm,6way,Mini-CT TE Connectivity AMP Mini CT 系列 1 行 1.5mm 节距 6 路 直 母 PCB 壳体 CT REC HSG 6P CRIMP TYPE WHITE
2106091-1
te connectivity / amp
Conn Wire to Board RCP 2 POS 1.5mm Solder ST SMD Lighting Connectors 2P INVERTED SMT THRU BOARD LED Interconnects CONN HEADER 2POS T/H SMD 1.5MM TE Connectivity 1.5mm 2 Way 1 Row Straight Lighting Connectors Surface Mount Wire to Board Conn Wire to Board RCP 2 POS 1.5mm Solder ST SMD Product Highlights:Product Category = Connectors - Printed Circuit BoardProduct Classification = Connectors - SpecialtyConnectorConnector Type = InvertedHermaphroditicSearch Keywords:Thru-board connector, Through-board connector, SMT thru-board connector, SMT connector, Inverted SMT, Inverted connector, LED connector, lighting connector, light connector, LED, LED lights, Thruboard, Thru board, Through board, Through-board, Throughboard CONNECTOR, HERMAPHRODITIC, 2WAY Connector,inverted,SMT,MiniCT,2Way,Wht Header, straight Pitch1.5 mm Poles 2 Mini-CT, 2106091-1, TE Connectivity TE Connectivity 2路 直 1.5mm节距 表面贴装 印刷电路板插座, 线对板 2 pos Inverted Thru Board SMT Header
2058943-5
te connectivity / amp
Cable Assembly 0.159m 24AWG 6 POS Mini CT SKT Bag Lighting Connectors 6 POS MINI CT C/A CABLE ASSY MINI CT 6POS Receptacle cable assembly,6 way, Mini-CT Cable Assembly 0.159m 24AWG 6 POS Mini CT SKT Bag Search Keywords:Common Termination, wire-to-board, wire-to-wire, discrete wire, NIC, Network Interface Cards, PC Cards, power, signal, IDC, pcb connectors, CABLE ASSBLY, 6IN, 6WAY Receptaclecableassembly,6way,Mini-CT 2058943-5 Series 6 Position Single Row Inverted SMT Thru Board Connector Cable assembly Pitch1.5 mm Poles 6 Mini-CT, 2058943-5, TE Connectivity TE Connectivity 158.8mm长 连接器电缆组件 3 A Cable Assembly Mini CT 6 pos.

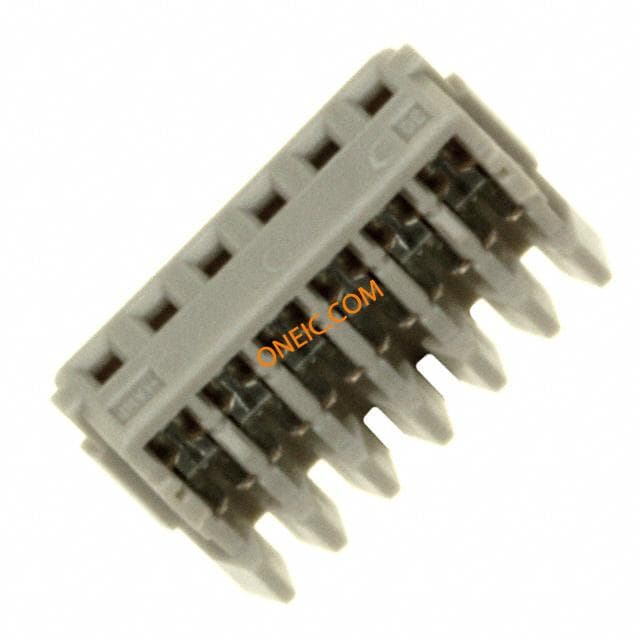

353293-6
te connectivity / amp
Conn IDC Connector RCP 6 POS 1.5mm IDT ST Cable Mount Bag/Box 1.5mm AMP Mini CT CONN RCPT 6POS 1.5MM 28-26AWG Receptacle assembly,MT,1.5mm,6W, Mini-CT Headers & Wire Housings RCPT 6 POS GRY MINI 1.5mm Conn IDC Connector RCP 6 POS 1.5mm IDT ST Cable Mount Bag/Box Product Highlights:Receptacle AssemblyConnector Type = MT (Mass Termination)Number of Positions = 6Without Panel AttachmentTerminate To WireSearch Keywords:Common Termination, wire-to-board, wire-to-wire, discrete wire, NIC, Network Interface Cards, PC Cards, power, signal, IDC, pcb connectors, Receptacleassembly,MT,1.5mm,6W,Mini-CT TE Connectivity AMP Mini CT 系列 6路 1.5mm节距 母 IDC 连接器 , 电缆安装 MINI CT MT REC ASSY 6P GRAY

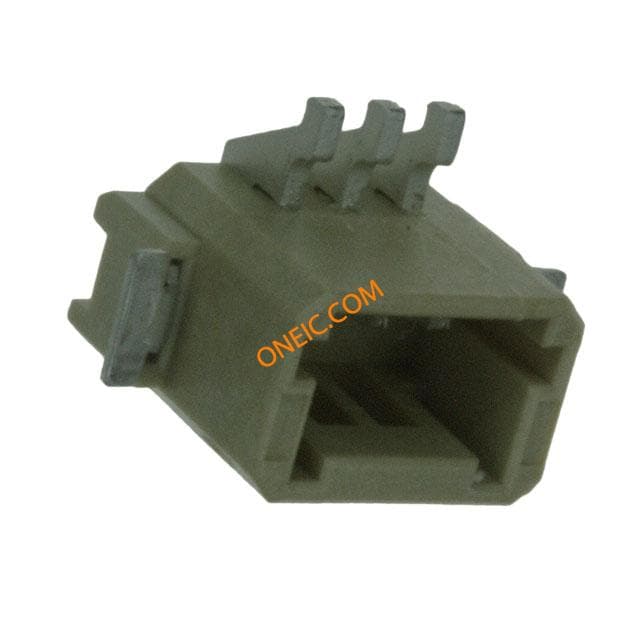

2106091-2
te connectivity / amp
Conn Wire to Board RCP 3 POS 1.5mm Solder ST SMD LED Interconnects CONN HEADER 3POS T/H SMD 1.5MM Lighting Connectors 3P INVERTED SMT THRU BOARD Conn Wire to Board RCP 3 POS 1.5mm Solder ST SMD Search Keywords:Thru-board connector, Through-board connector, SMT thru-board connector, SMT connector, Inverted SMT, Inverted connector, LED connector, lighting connector, light connector, LED, LED lights, Thruboard, Thru board, Through board, Through-board, Throughboard CONNECTOR, HERMAPHRODITIC, 3WAY 3 pos Inverted Thru Board SMT Header

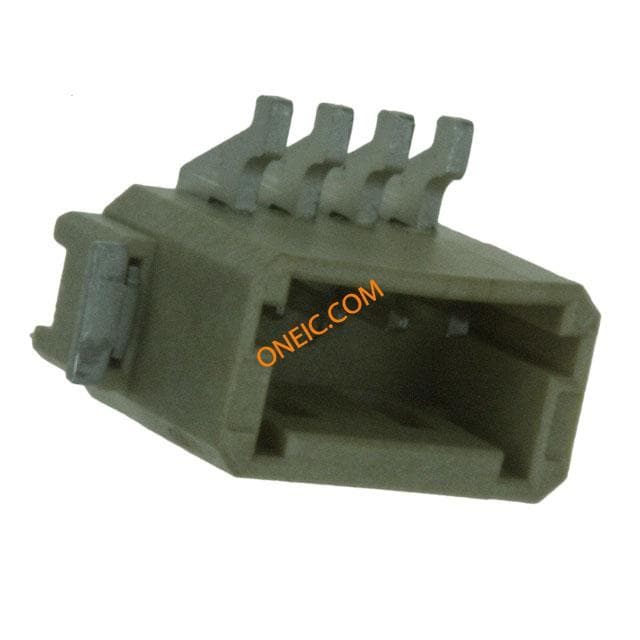

2106091-3
