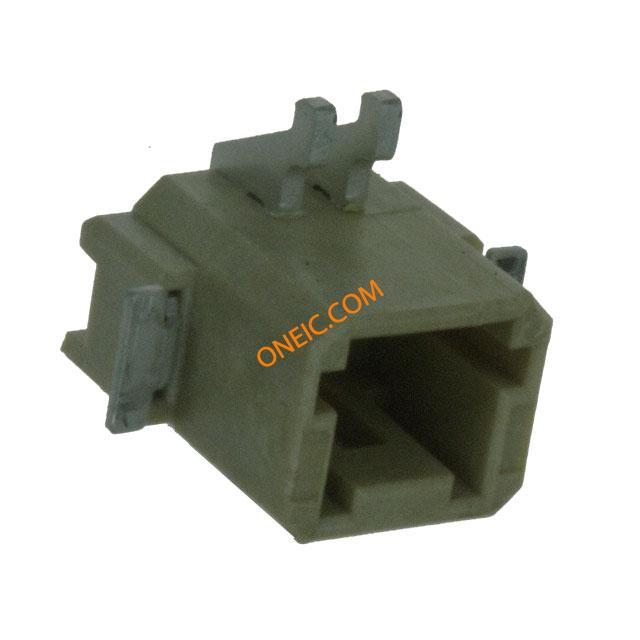

2106091-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Wire to Board RCP 2 POS 1.5mm Solder ST SMD Lighting Connectors 2P INVERTED SMT THRU BOARD LED Interconnects CONN HEADER 2POS T/H SMD 1.5MM TE Connectivity 1.5mm 2 Way 1 Row Straight Lighting Connectors Surface Mount Wire to Board Conn Wire to Board RCP 2 POS 1.5mm Solder ST SMD Product Highlights:Product Category = Connectors - Printed Circuit BoardProduct Classification = Connectors - SpecialtyConnectorConnector Type = InvertedHermaphroditicSearch Keywords:Thru-board connector, Through-board connector, SMT thru-board connector, SMT connector, Inverted SMT, Inverted connector, LED connector, lighting connector, light connector, LED, LED lights, Thruboard, Thru board, Through board, Through-board, Throughboard CONNECTOR, HERMAPHRODITIC, 2WAY Connector,inverted,SMT,MiniCT,2Way,Wht Header, straight Pitch1.5 mm Poles 2 Mini-CT, 2106091-1, TE Connectivity TE Connectivity 2路 直 1.5mm节距 表面贴装 印刷电路板插座, 线对板 2 pos Inverted Thru Board SMT Header |
| 分类 |
商业参数
| 产品 | Inverted Hermaphroditic Connectors | 其他名称 | A99870CT |
| 产品类别 | Lighting Connectors | 标准包装数量 | Tape & Reel |
| 工厂包装数量 | 2250 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| UL档案号 | E28476 | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 量程（°/s） | :- | 额定电压 | 50 V ac/dc |
| 最大额定电流 | 3 A | 最小供电电压 | 50.0 |
机械参数
| 深度 | 4.7 mm | 间距 | 1.5 mm |
| 宽度 | 7.25 | 高度 | 6.9 mm |
| 长度 | 9.11 | 密封型 | No |
| 重量 | 0.01 | 材料（通用） | :High Temp. Thermoplastic |
| 包装方式 | Reel | 尾部类型 | In-line |
| 电缆类型 | Discrete Wire | 端接方式 | Solder |
| 触头类型 | Pin | 引脚间距 | :1.5mm |
| 安装类型 | Boardlock(s) | 连接器类型 | Header |
| 接触镀层 | Tin Over Nickel | 安装样式 | SMD/SMT |
| 排数 | 1 | 壳体镀层 | Matte Tin-Lead over Nickel |
| 连接器样式 | Inverted | 高度（英寸） | 6.9 |
| 触头材料 | Copper Alloy | 壳体材料 | Thermoplastic |
| 先合后断 | No | 端接样式 | Solder |
| 连接器颜色 | :Natural | 触点数 | 2 |
| 接触件端接 | :Surface Mount Right Angle | 位数 | 2 |
| 中心触点表面处理 | 1.5 | 柱体长度（配合） | 2.4 |
| 接触镀层厚度 | 4.0 | ||
产品信息
| 类型 | Wire to Board | 连接器性别 | RCP |
| 系列 | SlimSeal | 产品特性 | Mates with 2058943-1 |
| 方向 | Inverted | CAD图纸 | 3D CAD Model |
| 编码、键控 | No | 测量制式 | 6.9 |
| 其他规格 | Yes | 应用细节 | Through Board |
| 加载位置数 | All | ||
环境参数
| 插拔次数 | Without | 机械寿命 | New Technology: Cutting edge technology for the newest designs. |
| 工作温度 | -40C to 105C | ||
文档与媒体
相关型号

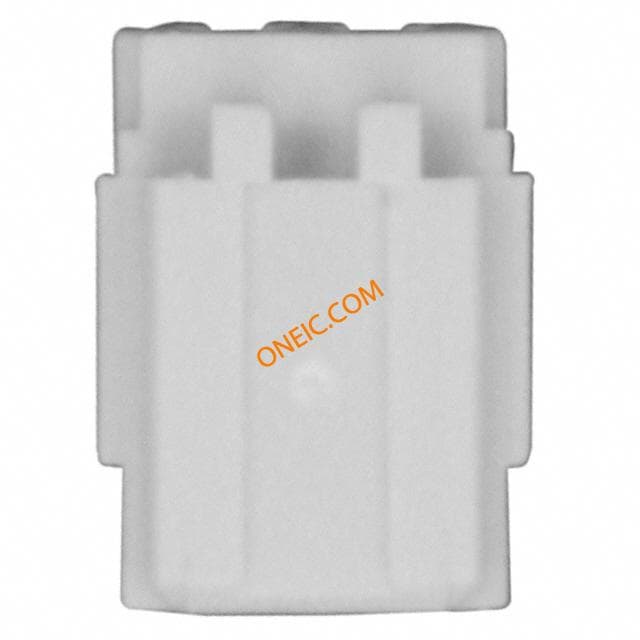

353293-2
te connectivity / amp
Conn IDC Connector RCP 2 POS 1.5mm IDT ST Cable Mount Bag/Box 1.5mm AMP Mini CT CONN RCPT 2POS 1.5MM 28-26AWG Receptacle assembly,MT,1.5mm,2W, Mini-CT Headers & Wire Housings RCPT 2 POS GRY MINI 1.5mm Conn IDC Connector RCP 2 POS 1.5mm IDT ST Cable Mount Bag/Box Product Highlights:Receptacle AssemblyConnector Type = MT (Mass Termination)Number of Positions = 2Without Panel AttachmentTerminate To WireSearch Keywords:Common Termination, wire-to-board, wire-to-wire, discrete wire, NIC, Network Interface Cards, PC Cards, power, signal, IDC, pcb connectors, Receptacleassembly,MT,1.5mm,gray,2way TE Connectivity AMP Mini CT 系列 2路 1.5mm节距 母 IDC 连接器 , 电缆安装 MINI CT MT REC ASSY 2P GRAY
353908-2
te connectivity / amp
Conn Housing RCP 2 POS 1.5mm Crimp ST Box 1.5mm AMP Mini CT CONN RCPT HSNG 2POS 1.5MM CRIMP Receptacle housing,1.5mm, 2 way,Mini-CT Headers & Wire Housings RCPT 2 POS WHT MINI CRIMP 1.5mm Conn Housing RCP 2 POS 1.5mm Crimp ST Box Product Highlights:Receptacle HousingConnector Type = CrimpNumber of Positions = 2Without Panel AttachmentNumber of Rows = 1Search Keywords:Common Termination, wire-to-board, wire-to-wire, discrete wire, NIC, Network Interface Cards, PC Cards, power, signal, IDC, pcb connectors, CTRECHSG2PCRIMPTYPEWHITE TE Connectivity AMP Mini CT 系列 1.5mm 节距 2 路 直 母 PCB 壳体 CT REC HSG 2P CRIMP TYPE WHITE
2106091-5
te connectivity / amp
Conn Wire to Board RCP 6 POS 1.5mm Solder ST SMD LED Interconnects CONN HEADER 6POS T/H SMD 1.5MM Lighting Connectors 6P INVERTED SMT THRU BOARD 2106091-5 Conn Wire to Board RCP 6 POS 1.5mm Solder ST SMD Search Keywords:Thru-board connector, Through-board connector, SMT thru-board connector, SMT connector, Inverted SMT, Inverted connector, LED connector, lighting connector, light connector, LED, LED lights, Thruboard, Thru board, Through board, Through-board, Throughboard CONNECTOR, HERMAPHRODITIC, 6WAY Header, straight Pitch1.5 mm Poles 6 Mini-CT, 2106091-5, TE Connectivity 6 pos Inverted Thru Board SMT Header

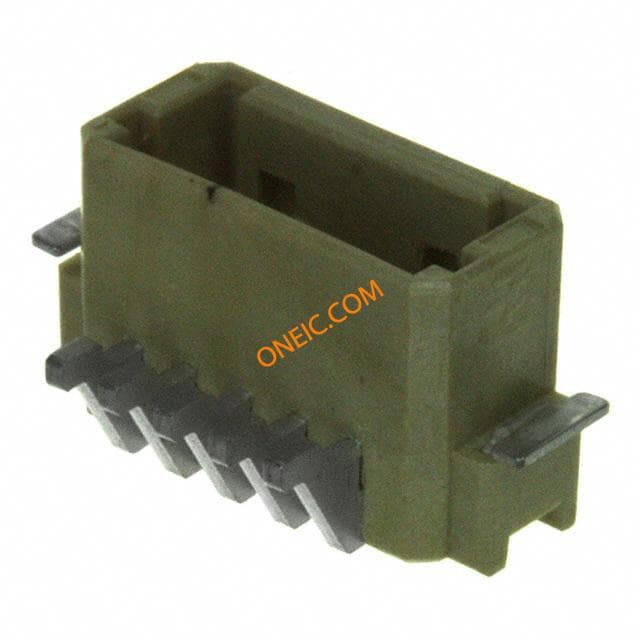

2106091-4
te connectivity / amp
Conn Wire to Board RCP 5 POS 1.5mm Solder ST SMD LED Interconnects CONN HEADER 5POS T/H SMD 1.5MM Lighting Connectors 5P INVERTED SMT THRU BOARD Conn Wire to Board RCP 5 POS 1.5mm Solder ST SMD Search Keywords:Thru-board connector, Through-board connector, SMT thru-board connector, SMT connector, Inverted SMT, Inverted connector, LED connector, lighting connector, light connector, LED, LED lights, Thruboard, Thru board, Through board, Through-board, Throughboard CONNECTOR, HERMAPHRODITIC, 5WAY INVERTED,SMT,MINICT,4W 5 pos Inverted Thru Board SMT Header
2106091-3
te connectivity / amp
Conn Wire to Board RCP 4 POS 1.5mm Solder ST SMD LED Interconnects CONN HEADER 4POS T/H SMD 1.5MM Lighting Connectors 4P INVERTED SMT THRU BOARD Conn Wire to Board RCP 4 POS 1.5mm Solder ST SMD Product Highlights:Wire-to-Board1.50 mm CenterlineApplies To Printed Circuit BoardContact Current Rating, Max = 3 AOperating Voltage = 50 VACSearch Keywords:Thru-board connector, Through-board connector, SMT thru-board connector, SMT connector, Inverted SMT, Inverted connector, LED connector, lighting connector, light connector, LED, LED lights, Thruboard, Thru board, Through board, Through-board, Throughboard CONNECTOR, HERMAPHRODITIC, 4WAY 4 pos Inverted Thru Board SMT Header

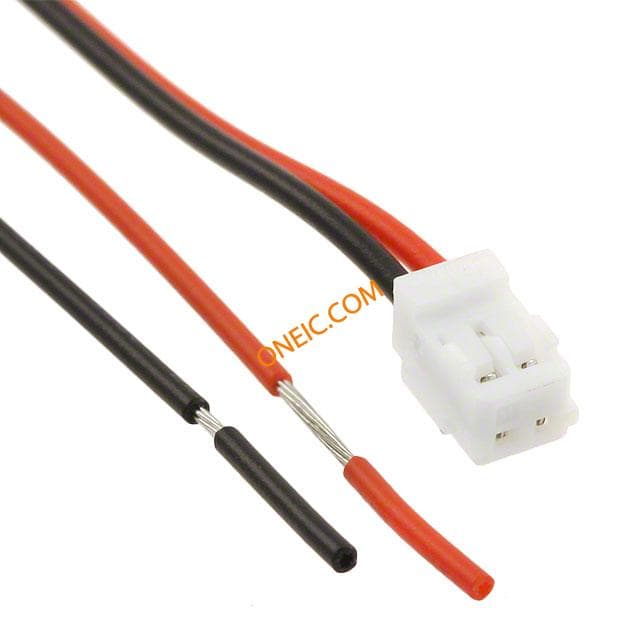

2058943-1
te connectivity / amp
Cable Assembly 0.159m 24AWG 2 POS Mini CT Lighting Connectors 2 POS MINI CT C/A CABLE ASSY MINI CT 2POS Receptacle cable assembly,2 way, Mini-CT Cable Assembly 0.159m 24AWG 2 POS Mini CT Search Keywords:Common Termination, wire-to-board, wire-to-wire, discrete wire, NIC, Network Interface Cards, PC Cards, power, signal, IDC, pcb connectors, CABLE ASSBLY, 6IN, 2WAY Receptaclecableassembly,2way,Mini-CT 2058943-1 Series 2 Position Single Row Inverted SMT Thru Board Connector Cable assembly Pitch1.5 mm Poles 2 Mini-CT, 2058943-1, TE Connectivity TE Connectivity 158.8mm长 黑色/红色 连接器电缆组件 3 A Cable Assembly Mini CT 2 pos.
