点击放大查看

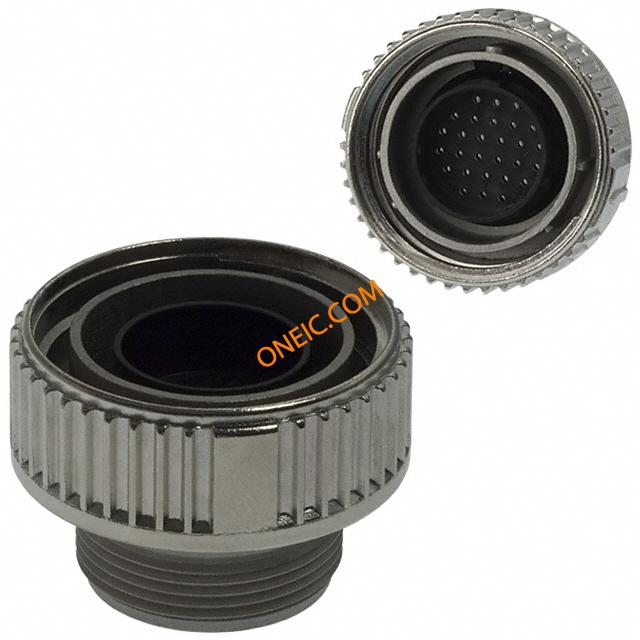

208492-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Metal Shell CPC PIN 28 POS Crimp ST Cable Mount 28 Terminal 1 Port CPC Connectors CONN PLUG CPC 28POS REV SER 2 28 Pole Male Straight Cable Mount Industrial & Automation Circular Connector, Shell Size 22 with Male Contacts Standard Circular Connector PLUG REVERSE 22-28 Conn Metal Shell CPC PIN 28 POS Crimp ST Cable Mount 28 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 28PlugFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC Connector;MetalShellCPC;PlugAssy;28Pos.;Sz.22;Series2;FreeHanging PLUG ASSY,SZ 22,CMC |
| 分类 |
商业参数
| 商标名 | CPC Series 2 | 产品类别 | Standard Circular Connector |
| 标准包装数量 | Bulk | 工厂包装数量 | 10 |
合规参数
| RoHS | Lead free / RoHS Compliant | 合规性 | No |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| UL阻燃等级 | UL 94V-0 | 认证机构标志 | 否 |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 防溅等级 | 无 | 通道数量 | 28 |
| 连接器类型 - 电压输入 | 反向 | ||
机械参数
| 颜色 | Black | 密封型 | No |
| 外形尺寸(长x宽) | 22 | 材料（通用） | Stainless Steel |
| 包装方式 | Bulk | 壳体颜色 | 黑色 |
| 外壳尺寸 | 22 | 方向 | Keyed |
| 外壳样式 | Plug | 端接方式 | Crimp |
| 螺纹尺寸 | 1-3/16 - 18 UNEF-2A | 触点尺寸 | 20 |
| 触头类型 | Crimp | 外壳颜色 | Black |
| 安装类型 | Cable Mount | 外壳镀层 | Nickel |
| 行程角度 | Straight | 连接器类型 | Plug for Male Contacts |
| 紧固类型 | Threaded | 外壳涂层 | Nickel |
| 安装样式 | Free Hanging | 引脚数 | 0 |
| 外壳材料（壳体） | Zinc alloy | 连接器样式 | Plug |
| 壳体材料 | Thermoplastic | 包装数量 | 10 |
| 主要材料 | CircularPlasticConnector | 端接样式 | Wire |
| 第一触头极性 | Male | 配接方向 | Keyed |
| 触点数 | 28 | 端接表面处理 | 带有 |
| 绝缘直径 | 2.54 [0.100] | 位数 | 28 |
| 外壳尺寸-插件 | Metal | 安装孔直径 | 带有 |
| 外壳材料及表面处理 | Thermoplastic | 第二连接器安装特性 | Reverse |
产品信息
| 备注 | Contacts Not Provided | 类型 | Metal Shell CPC |
| 连接器性别 | PL | 系列 | Series 2 |
| 产品特性 | ReverseGender | 预加载 | No |

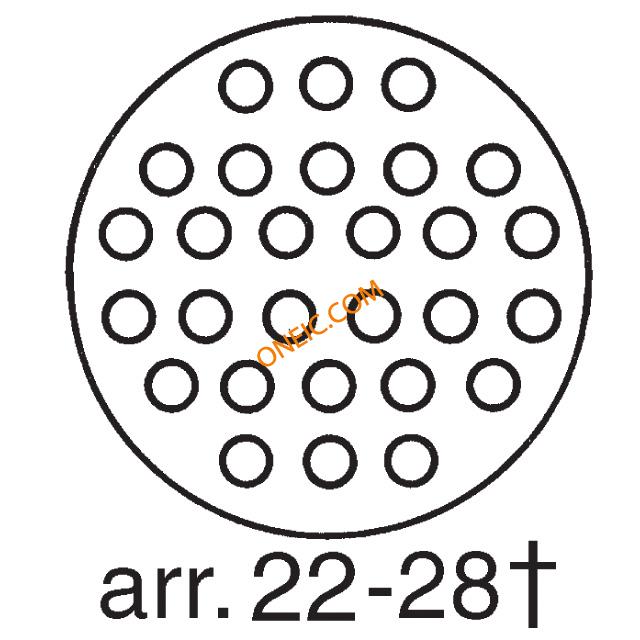

| 排列方式 | 22-28 | CAD图纸 | 3D CAD Model |
| 制造商全称 | Series2 | 产品子类型 | Connector |
| 其他规格 | Without | 应用细节 | Commercial |
| 适用产品/相关产品 | Pin Contacts | ||
环境参数
| 工作范围 | 不密封 | 工作温度 | +125°C |
文档与媒体
相关型号
66506-3
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Standard Cable Connectors CONN PIN 20-24AWG GOLD CRIMP AMPLIMITE HDP-20 pin crimp contact 20 DF Standard Circular Contacts CRIMP PIN 24-20 Reel of 10000 Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)PinWire Termination Type = CrimpWire Insulation Diameter = 1.52 mmSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub CONTACT, PIN, CRIMP CONTACT, CRIMP, PIN, 24-20AWG, REEL CONTACT,PIN,HDP-20,CRIMP,1.27-1.52MM TE Connectivity AMPLIMITE HDP-20系列 尺寸20触点 公 压接 信号 D-sub 连接器触点, 镀金镀镍 触点, 24 → 20 AWG 20 DF PIN
66506-2
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Standard Cable Connectors CONTACT PIN 20-24AWG CRIMP GOLD Standard Circular Connector PIN CONTACT 20 DF PIN 24-20 AWG 50 AU Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)PinWire Termination Type = CrimpWire Insulation Diameter = 1.27 - 1.52 mmSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub PIN CONTACT 20 DF
2-66507-8
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip D-Sub Contacts 20DF PIN 28-24 BR/AU Standard Cable Connectors CONN PIN 28-24AWG 50GOLD Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)PinWire Termination Type = CrimpWire Insulation Diameter = .76 - 1.02 mmSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub HD 20 CONT,AU PLTD
66507-3
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip D-Sub Contacts CRIMP PIN 28-24 Standard Cable Connectors CONN PIN 24-28AWG GOLD CRIMP AMPLIMITE HDP-20 pin crimp contact 20 DF Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)PinWire Termination Type = CrimpWire Insulation Diameter = 1.02 mmSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub CONTACT,PIN,HDP-20,CRIMP,.76-1.02MM HDP20 Series 24-28 AWG Insulation Support Crimp Snap Pin Contact TE Connectivity AMPLIMITE HDP-20系列 尺寸20触点 公 压接 针 D-sub 连接器触点, 镀金镀镍 触点, 28 → 24 AWG 20 DF PIN

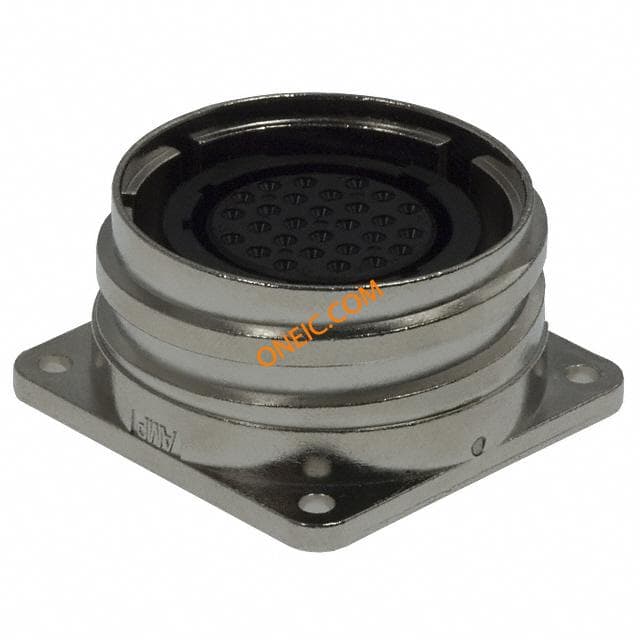

208493-1
te connectivity / amp
Conn Metal Shell CPC SKT 28 POS Crimp ST Panel Mount 28 Terminal 1 Port CPC Connectors CONN RECEPT CPC 28POS REV SER 2 Standard Circular Connector REC SQUARE REV 22-28 Conn Metal Shell CPC SKT 28 POS Crimp ST Panel Mount 28 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 28ReceptacleFor Use With Socket ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC Connector;MetalShellCPC;Recept.Assy;28Pos.;Sz.22;Series2;PanelMount CMC RECEPTACLE ASSY,SIZE 22
66507-4
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip D-Sub Contacts CRIMP PIN 28-24 Standard Cable Connectors CONN PIN 24-28AWG GOLD CRIMP Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)PinWire Termination Type = CrimpWire Insulation Diameter = .76 - 1.02 mmSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub CONTACT, PIN, 28-24AWG, CRIMP CONTACT,PIN,HDP-20,PLATED,CRIMP,.76-1.02MM HDP20 Series 24-28 AWG Insulation Support Crimp Snap Pin Contact TE Connectivity AMPLIMITE HDP-20系列 尺寸20触点 公 压接 针 D-sub 连接器触点, 镀金 触点, 28 → 24 AWG HD 20 DF PIN PLTD

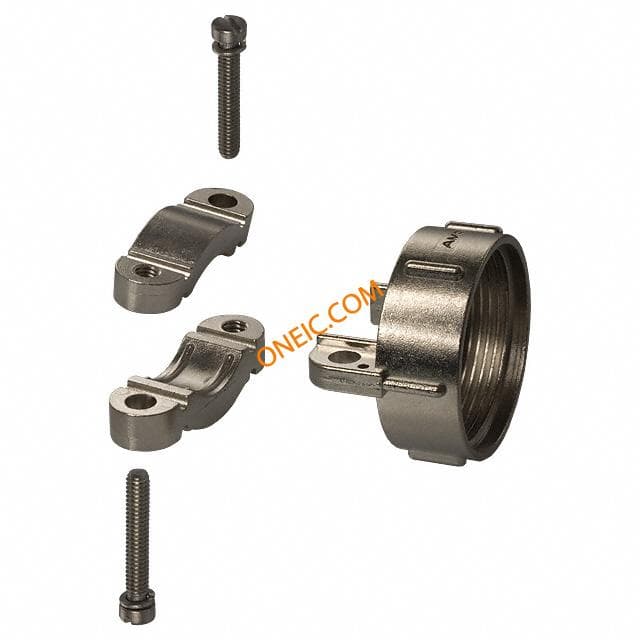

208945-7
