点击放大查看

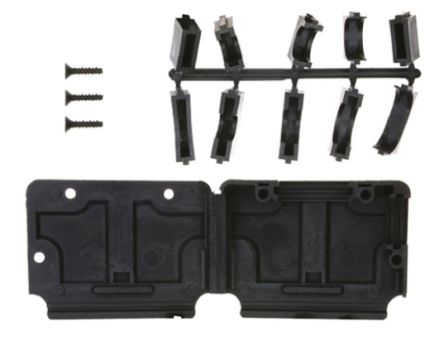

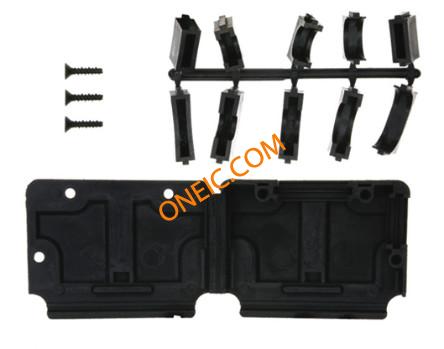

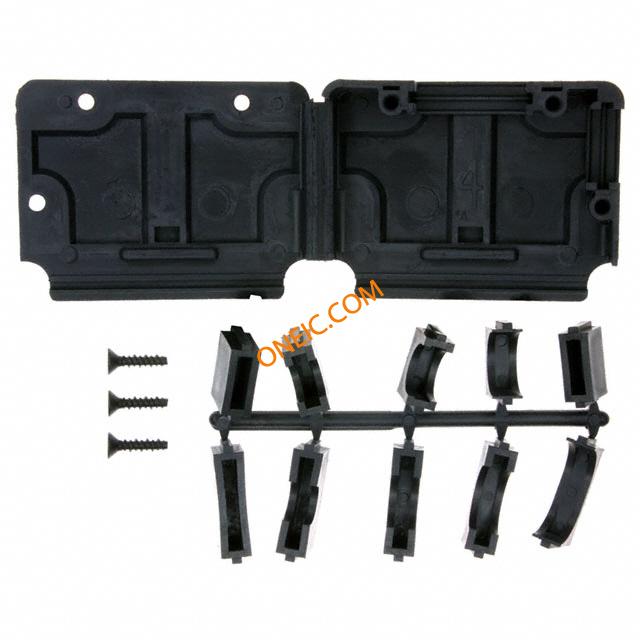

207473-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories Backshell/Cable Clamp Kit Individual D-Sub Backshells 37 PIN CABLE CLAMP Cable Clamps CONN BACKSHELL DB37 PLASTIC AMPLIMITE backshell kit, size 4 Connector Accessories Backshell/Cable Clamp Kit Individual Product Highlights:Backshell/Cable ClampCable Clamp Type = Box and LidStraight(180°)/90° Cable Exit AngleCable Insulation Diameter = 16.26 mmShell Size = 4Search Keywords:AMPLIMITE, Subminiature D, input/output, box to box, d-sub, d sub, dsub BACKSHELL, D, PLASTIC, 37WAY Hood;D-Sub;37Pos;Straight/90DegExit;AMP;Thermoplastic;0.640In.CblDia TE Connectivity 207473 系列 37 路 直 黑色 PP，热塑性 D-sub 连接器底壳 CABLE CLAMP KIT,SZ 4 |
| 分类 |
商业参数
| 产品类别 | D-Sub Backshells | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | 标准 | RoHSCompliant,ELVCompliant |
| 海关税号 | 85369010 | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL94V-0 |
机械参数
| 颜色 | Black | 深度 | 39.37 mm |
| 高度 | 19.56 mm | 重量 | 0.022 |
| 材料（通用） | Polypropylene | 包装方式 | Bulk |
| 屏蔽 | Unshielded | 出线方向 | Straight(180°)/90° |
| 电缆类型 | Round | 外壳尺寸 | 4 |
| 屏蔽类型 | No | 螺纹尺寸 | None |
| 外壳镀层 | Plastic | 电缆直径 | 16.26 mm |
| 电缆端类型 | Variable Entries | 电缆材料 | Thermoplastic |
| 螺丝材料 | :Steel | 外壳材料（壳体） | Thermoplastic |
| 本体材料 | :Thermoplastic | 总长度 | 57.61 mm |
| 包装数量 | Individual Kit | 电缆端接方式 | Box and Lid |
| 连接器颜色 | :Black | 绝缘直径 | 16.26 [0.640] |
| 位数 | 37 | 镀层厚度（通用） | Zinc |
| 外壳尺寸-插件 | :4 | 衬套/护套类型 | Without |
| 电缆对数 | 2 | 螺钉材料 - 镀层 | :Zinc |
| 后壳材料及镀层 | Thermoplastic | 控制侧电缆固定器 | Without |
产品信息
| 备注 | Cable diameter is adjustable by changing cable support gates. Use the flat side | 类型 | Kit |
| 系列 | :AMPLIMITE | 产品特性 | Assembly Kit |
| 硬件配件 | Assembly Hardware, Strain Relief | 制造商全称 | AMP |
| 产品子类型 | Backshell/Cable Clamp | 附件类型 | Hinged Backshell |
| 射频系列/标准 | 207473 | ||
