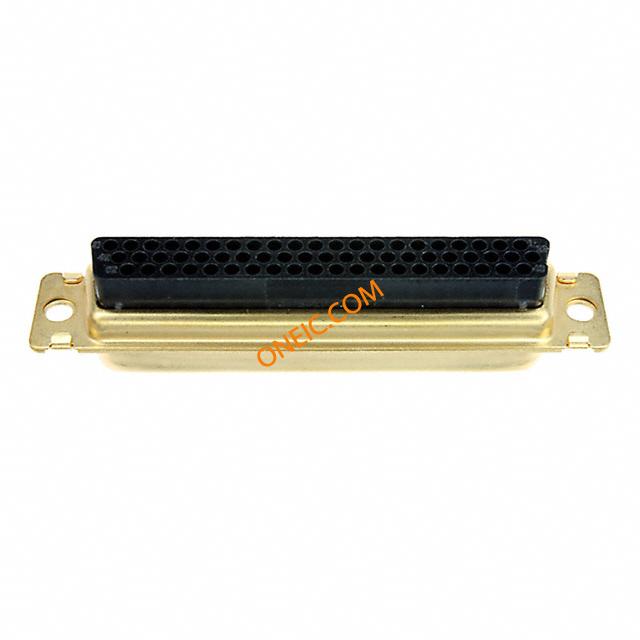

206502-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 62 POS 2.7mm Crimp ST D-Sub High Density Connectors PLUG ASSY,62 POSN,AM AMPLIMITE - Aerospace & Military CONN D-SUB PLUG HD 62POS Conn;D-Sub;Cable Plug;62Pos;STR Conn Housing PL 62 POS 2.7mm Crimp ST Product Highlights:ConnectorProduct Series = 90Density = HighTerminate To WireNumber of Positions = 62Search Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub CONNECTOR, PLUG, D-SUB, 62WAY Conn;D-Sub;CablePlug;62Pos;STR;90Series;Crimp;22AWG PLUG ASSY,62 POSN,AMPLIMITE |
| 分类 |
商业参数
| 零件号别名 | 311P407-4P-B-12 | 产品类别 | D-Sub High Density Connectors |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | RoHS Compliant | 标准 | MIL-C-24308 |
| 海关税号 | 85369010 | 无铅定义 | Wave solder capable to 260°C / Wave solder capable to 240°C / Wave solder capabl |
| RoHS/ELV合规状态 | RoHS compliant / ELV compliant | 认证机构标志 | Yes |
电气参数
| 量程（°/s） | :TE CONNECTIVITY - Amplimite 90 Series | 连接器阻抗 | No |
| 连接器类型 - 电压输入 | No | ||
机械参数
| 深度 | 16.36 mm | 间距 | 2.7 mm |
| 高度 | 12.54 mm | 重量 | 0.02 |
| 材料（通用） | Copper Alloy | 包装方式 | Bulk |
| 出线方向 | Straight | 外壳尺寸 | 4 |
| 导线线规 | 22 | 端接方式 | Crimp |
| 触点尺寸 | 22 | 触头类型 | Crimp Snap-in |
| 非磁性 | Yes | 安装类型 | Straight |
| 外壳镀层 | Gold | 行程角度 | Straight |
| 连接器类型 | Plug for Male Contacts | 接触镀层 | Gold over Nickel |
| 法兰特征 | Housing/Shell (Unthreaded) | 外壳涂层 | Zinc |
| 安装样式 | Wire | 排数 | 3 |
| 外壳材料（壳体） | Brass | 连接器样式 | Plug |
| 本体材料 | :Brass | 触头材料 | Brass |
| 壳体材料 | Steel | 总长度 | 69.32 mm |
| 主要材料 | D-Subminiature | 端接样式 | Crimp |
| 第一触头极性 | Pin | 触点数 | 62 |
| 接触件端接 | :Crimp | 位数 | 62 |
| 衬套/护套类型 | No | 安装孔直径 | 3.05 |
| 外壳材料及表面处理 | Brass, Gold Plated | 外壳尺寸，连接器布局 | 4 (DC, C) High Density |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 系列 | 90 |
| 密度 | High | 制造商全称 | AMP |
| 产品子类型 | Connector | 其他规格 | Wire/Cable |
| 应用细节 | TrueMil | 设备部件号 | 311P407-4P-B-12 |
环境参数
| 工作温度 | -55C to 125C | ||
文档与媒体
