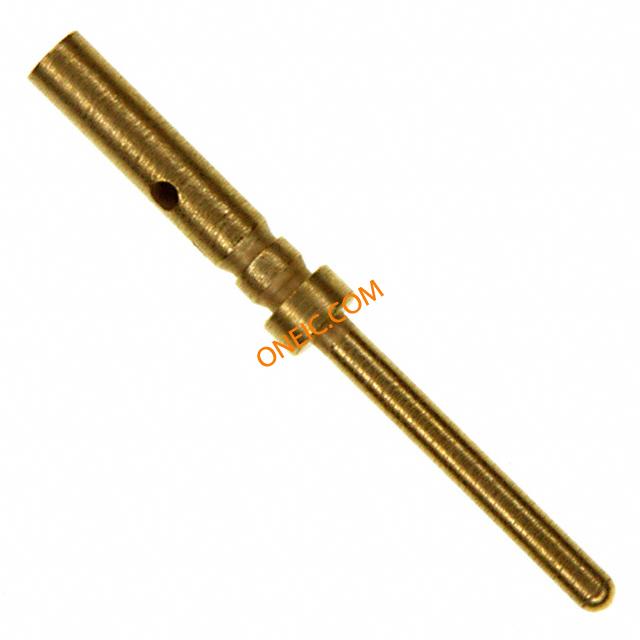

206495-3

点击放大查看

206495-3

制造商
TE Connectivity Ltd.
描述Contact PIN Crimp ST Cable Mount Loose Piece D-Sub Contacts PIN 28-26 AWG AU HIGH DENSITY NON-MAG AMPLIMITE - Aerospace & Military CONN PIN 26-28AWG 50GOLD Contact PIN Crimp ST Cable Mount Loose Piece Search Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub PIN CONT,SZ 22D
分类
连接器解决方案接触件接触件（通用）
对参数有疑问？问 AI 助手

商业参数

产品类别D-Sub Contacts标准包装数量Bulk

合规参数

RoHSRoHS Compliant资质认证No
无铅定义Not relevant for lead free processRoHS/ELV合规状态RoHS compliant / ELV compliant
认证机构标志No

电气参数

连接器阻抗压接最大额定电流否
输出高/低电流No

机械参数

直径0.76包装方式Bulk
导线线规28-26端接方式Crimp
触点形式Machined触点尺寸22
触头类型Crimp Snap-in非磁性Yes
端子尺寸22连接器类型Connector D-Subminiature
接触镀层Gold Over Copper插入件材料铜合金
触头材料Copper Alloy包装数量Loose Piece
主要材料Copper Alloy端接样式Crimp
第一触头极性Pin (Male)接触件端接Crimp
绝缘直径1.38 [.054] Max.引脚总长度.267
接触镀层厚度50µin (1.27µm)触点材料 - 配合Gold over Copper
线规或范围 - AWG0.08-0.15² [28-26]

产品信息

制造商.03类型Signal
连接器性别PIN系列90
密度High产品特性High Density (HD)
制造商全称AMP产品子类型Contact
其他规格Wire/Cable
