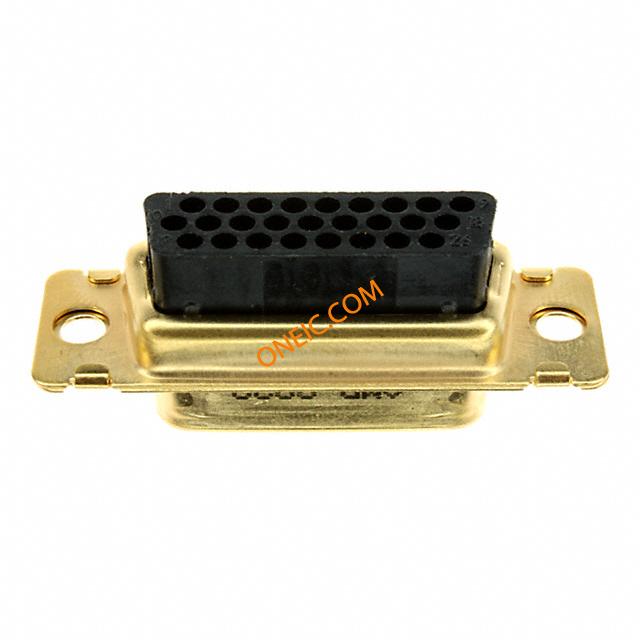

206501-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 26 POS Crimp ST D-Sub High Density Connectors RECEPT ASSY,26 POSN, AMPLIMITE - Aerospace & Military CONN D-SUB RECEPT HD 26POS Conn Housing RCP 26 POS Crimp ST Product Highlights:ConnectorProduct Series = 90Density = HighTerminate To WireNumber of Positions = 26Search Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub Conn;D-Sub;CableSocket;26Pos;STR;90Series;Crimp;22AWG RECEPT ASSY,26 POSN,AMPLIMITE |
| 分类 |
商业参数
| 零件号别名 | 311P407-2S-B-12 | 产品类别 | D-Sub High Density Connectors |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | RoHS Compliant | 标准 | MIL-C-24308 |
| 无铅定义 | Wave solder capable to 260°C / Wave solder capable to 240°C / Wave solder capabl | RoHS/ELV合规状态 | RoHS compliant / ELV compliant |
| 认证机构标志 | Yes | ||
电气参数
| 连接器阻抗 | No | 连接器类型 - 电压输入 | No |
机械参数
| 颜色 | Black | 外形尺寸(长x宽) | 2 |
| 材料（通用） | Copper Alloy | 包装方式 | Bulk |
| 外壳尺寸 | 2 | 导线线规 | 22 |
| 端接方式 | Crimp | 触点形式 | Signal |
| 触点尺寸 | 22 | 触头类型 | Crimp Snap-in |
| 非磁性 | Yes | 外壳表面处理 | 金 |
| 安装类型 | Straight | 外壳镀层 | Gold |
| 端子尺寸 | 22 | 行程角度 | Straight |
| 连接器类型 | Receptacle for Female Contacts | 法兰特征 | Housing/Shell (Unthreaded) |
| 安装样式 | Wire | 排数 | 3 |
| 外壳材料（壳体） | Brass | 连接器样式 | Receptacle |
| 触头材料 | Brass | 壳体材料 | 黄铜 |
| 主要材料 | D-Subminiature | 连接器 - 电缆 | 否 |
| 端接样式 | Crimp | 第一触头极性 | Socket |
| 触点数 | 26 | 位数 | 26 |
| 衬套/护套类型 | No | 安装孔直径 | 3.05 |
| 外壳材料及表面处理 | Brass, Gold Plated | 触点材料 - 柱 | 铜合金 |
| 外壳尺寸，连接器布局 | 2 (DA, A) High Density | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | 90 |
| 密度 | High | 排列方式 | MS18274-2 |
| 制造商全称 | AMP | 产品子类型 | Connector |
| 其他规格 | Wire/Cable | 输出配置 | Free Hanging (In-Line) |
| 设备部件号 | 311P407-2S-B-12 | ||
文档与媒体
相关型号
