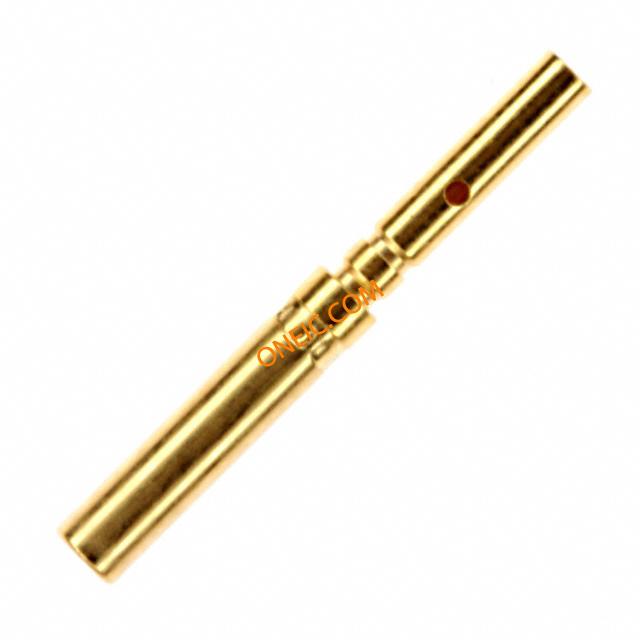

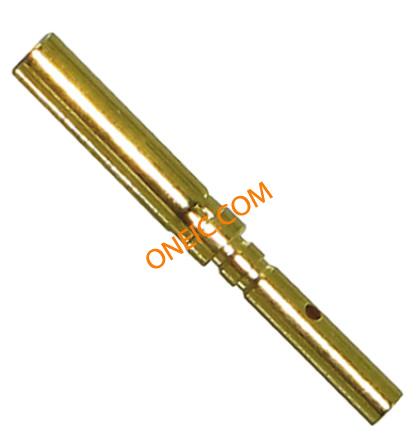

206071-1

点击放大查看

206071-1

制造商
TE Connectivity Ltd.
描述Contact SKT Crimp ST Cable Mount Loose Piece D-Sub Contacts SOCKET 28-22 AWG AMPLIMITE - Aerospace & Military CONN SOCKET 22-28AWG 50GOLD SZ22,SOCKET,NON-MAG Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactProduct Series = 90Density = HighTerminate To WireSocketSearch Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub D SUB CONTACT, SOCKET, 28-22AWG, CRIMP SZ 22, SOCKET, NON-MAG
分类
连接器解决方案接触件接触件（通用）
对参数有疑问？问 AI 助手

商业参数

零件号别名G-08-S1产品类别D-Sub Contacts
标准包装数量Bulk

合规参数

RoHSRoHS Compliant海关税号85366910
抗辐射加固No无铅定义Not relevant for lead free process
RoHS/ELV合规状态RoHS compliant / ELV compliant认证机构标志Yes

电气参数

输出高/低电流No

机械参数

深度1.52 mm间距Not Required mm
重量0.002直径1.57
包装方式Bulk导线线规28-22
端接方式Crimp触点形式Machined
触点尺寸22触头类型Signal
非磁性Yes安装类型Straight
连接器类型Connector D-Subminiature接触镀层Gold Over Copper
安装样式Cable触头材料Copper Alloy
壳体材料Not Required包装数量Loose Piece
主要材料Copper Alloy端接样式Crimp
第一触头极性Socket (Female)触点数Not Required
接触件尾部长度22接触件端接Crimp
绝缘直径1.38 [.054] Max.触点材料 - 配合Gold over Copper
线规或范围 - AWG0.08-0.40² [28-22]触点材料 - 镀层GoldoverCopper

产品信息

类型Signal连接器性别SKT
系列90密度High
产品特性High Density (HD)制造商全称AMP
产品子类型Contact端口数1 Port
其他规格Wire/Cable设备部件号G-08-S1
适用产品/相关产品:MIL-C-24308 and MIL-C-39029
