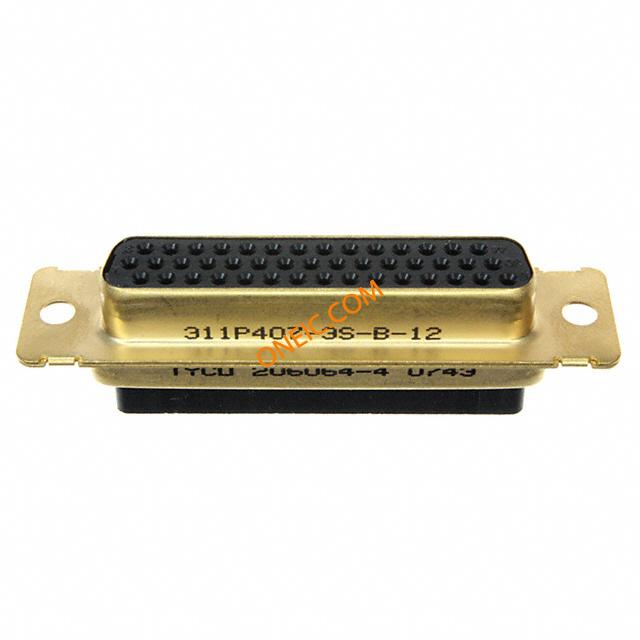

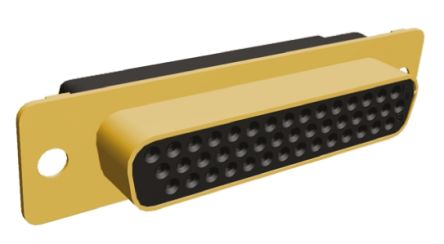

206064-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 44 POS Crimp ST D-Sub High Density Connectors RECEPT ASSY,44 POSN, AMPLIMITE - Aerospace & Military CONN D-SUB RECEPT HD 44POS AMPLIMITE 90 d-sub cable socket, 44 pin Conn Housing RCP 44 POS Crimp ST Product Highlights:ConnectorProduct Series = 90Density = HighTerminate To WireNumber of Positions = 44Search Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub Conn;D-Sub;CableSocket;44Pos;STR;90Series;Crimp;22AWG TE Connectivity AMPLIMITE 90系列 44路 直 军用压接 D-Sub 连接器, 插座 RECEPT ASSY,44 POSN,AMPLIMITE |
| 分类 |
商业参数
| 零件号别名 | 311P407-3S-B-12 | 产品类别 | D-Sub High Density Connectors |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | RoHS Compliant | 标准 | MIL-C-24308 |
| 无铅定义 | Wave solder capable to 260°C / Wave solder capable to 240°C / Wave solder capabl | RoHS/ELV合规状态 | RoHS compliant / ELV compliant |
| 认证机构标志 | Yes | ||
电气参数
| 连接器阻抗 | No | 连接器类型 - 电压输入 | No |
机械参数
| 深度 | 16.69mm | 间距 | 2.7 mm |
| 宽度 | 12.55mm | 高度 | 12.55 mm |
| 长度 | 53.04mm | 外形尺寸(长x宽) | 3 |
| 材料（通用） | Copper Alloy | 包装方式 | Bulk |
| 外壳尺寸 | 3 | 导线线规 | 22 |
| 方向 | 直 | 端接方式 | Crimp |
| 触点形式 | Signal | 触点尺寸 | 22 |
| 触头类型 | Crimp Snap-in | 非磁性 | Yes |
| 外壳表面处理 | 金 | 安装类型 | Straight |
| 外壳镀层 | Gold | 端子尺寸 | 22 |
| 行程角度 | Straight | 连接器类型 | Receptacle for Female Contacts |
| 法兰特征 | Housing/Shell (Unthreaded) | 安装样式 | Wire |
| 排数 | 3 | 外壳材料（壳体） | Brass |
| 连接器样式 | Receptacle | 触头材料 | Brass |
| 壳体材料 | Brass | 总长度 | 53.04 mm |
| 主要材料 | D-Subminiature | 连接器 - 电缆 | 否 |
| 端接样式 | Crimp | 第一触头极性 | Socket |
| 触点数 | 44 | 位数 | 44 |
| 衬套/护套类型 | No | 安装孔直径 | 3.05 |
| 外壳材料及表面处理 | Brass, Gold Plated | 触点材料 - 柱 | 铜合金 |
| 外壳尺寸，连接器布局 | 3 (DB, B) High Density | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | 90 |
| 密度 | High | 排列方式 | MS18275-2 |
| 制造商全称 | AMP | 产品子类型 | Connector |
| 其他规格 | Wire/Cable | 输出配置 | Free Hanging (In-Line) |
| 设备部件号 | 311P407-3S-B-12 | ||
