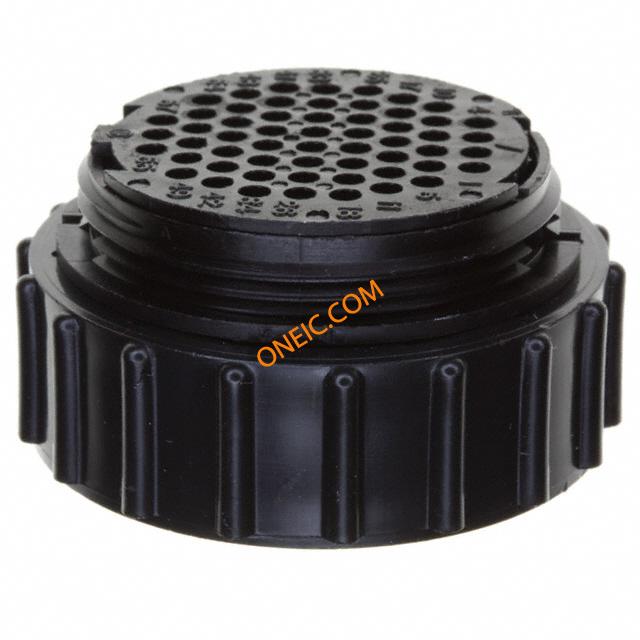

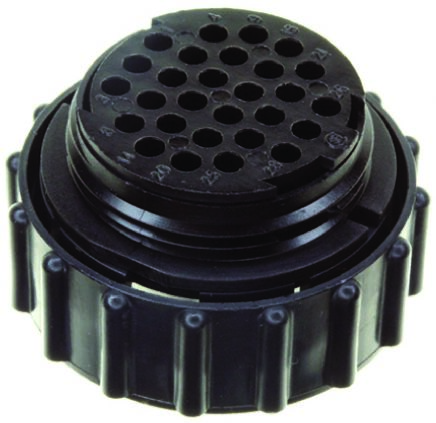

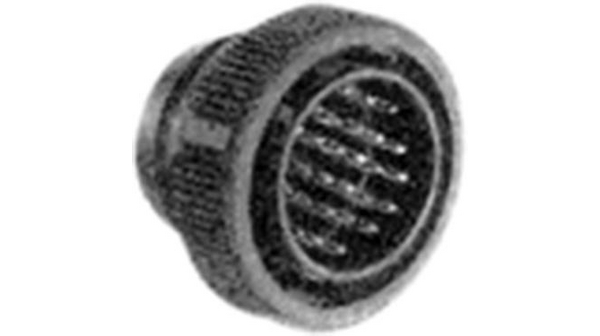

206437-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn CPC PIN 57 POS Crimp ST Cable Mount 57 Terminal 1 Port CPC Connectors CONN PLUG CPC 57POS REV SER 2 57 Pole Male Straight Cable Mount Industrial & Automation Circular Connector, Shell Size 23 with Male Contacts Standard Circular Connector PLUG REVERSE 23-57 Conn CPC PIN 57 POS Crimp ST Cable Mount 57 Terminal 1 Port Product Highlights:HousingHousing Type = PlugNumber of Positions = 5757 Signal Positions0 Power PositionsSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CIRCULAR CONNECTOR, PLUG, 57 WAY, CABLE ConnectorHousing;CPCPlugAssy;57Pos.;Sz.23;Series2;FreeHang;RevSex Plug CPC2 Poles=57, accepts male contacts / Free hanging/cable mount, 206437-1, TE Connectivity TE Connectivity 57路 电缆安装 直向 连接器 插头 , 公触点 CPC PLUG ASSEMBLY SIZE 23-57 |
| 分类 |
商业参数
| 交货时间 | 28 Days | 商标名 | CPC Series 2 |
| 子类别 | Connector Circular | 产品类别 | Standard Circular Connector |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 合规性 | No | 抗辐射加固 | No |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 通道数量 | 57 | 最大额定电流 | 7.5A |
机械参数
| 颜色 | Black | 密封型 | No |
| 重量 | 0.02 | 直径 | 45.29 mm |
| 包装方式 | Bulk | 出线方向 | No |
| 外壳尺寸 | 23 | 方向 | Keyed |
| 外壳样式 | Plug | 端接方式 | Crimp |
| 螺纹尺寸 | 1-3/8 - 18 UNEF-2A | 触点形式 | 57Signal |
| 触点尺寸 | 20 | 触头类型 | Crimp |
| 外壳颜色 | Black | 安装类型 | Cable Mount |
| 行程角度 | Straight | 连接器类型 | Plug for Male Contacts |
| 紧固类型 | Threaded | 安装样式 | Free Hanging |
| 连接器样式 | Plug | 插入角度 | :23-57 |
| 本体材料 | :Glass Filled Thermoplastic | 磁芯材质 | Polyester |
| 壳体材料 | Thermoplastic | 总长度 | 23.24 mm |
| 主要材料 | CircularPlasticConnector | 端接样式 | Wire |
| 第一触头极性 | Male | 连接器颜色 | :Black |
| 配接方向 | Keyed | 触点数 | 57 |
| 接触件尾部长度 | 20D | 绝缘直径 | 1.73 [0.068] |
| 位数 | 57 | 外壳尺寸-插件 | All Plastic |
| 外壳材料及表面处理 | Thermoplastic | 第一连接器安装类型 | :Cable |
| 第二连接器安装特性 | Reverse | 外壳尺寸-插入件（转换至） | 23-57 |
产品信息
| 备注 | Contacts Not Provided | 类型 | CPC |
| 连接器性别 | PL | 系列 | Series 2 |
| 产品特性 | ReverseGender | 预加载 | No |
| 排列方式 | 23-57 | 制造商全称 | Series2 |
| 产品子类型 | Connector | 射频系列/标准 | 206437 |
| 其他规格 | Without | 应用细节 | Commercial |
| 适用产品/相关产品 | Pin Contacts | ||
