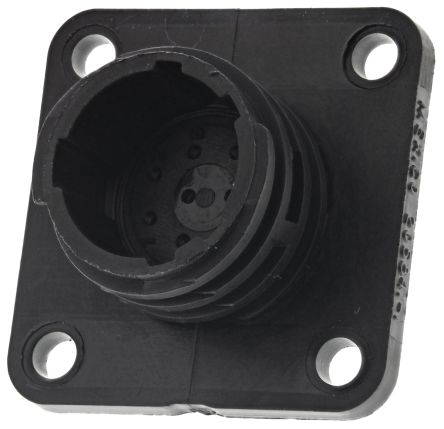

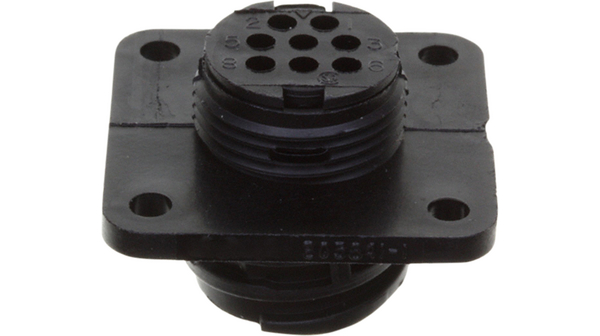

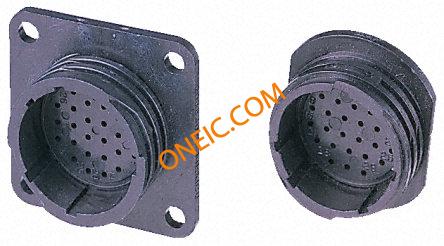

205841-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn CPC PIN 8 POS Crimp ST Panel Mount 8 Terminal 1 Port CPC Connectors CONN RECEPT CPC 8POS STD SER 2 8 Pole Female Straight Panel Mount Industrial & Automation Circular Connector, Shell Size 11 with Male Contacts Standard Circular Connector RECP SQUARE STD 11-8 Conn CPC PIN 8 POS Crimp ST Panel Mount 8 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 8ReceptacleFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC RECEPTACLE, PIN CONTACT, 8WAY ConnectorHousing;CPCRecept.Assy;8Pos.;Sz11;Series2;PanelMnt;StdSex Receptacle CPC2 Poles=8, accepts male contacts / with flange, 205841-1, TE Connectivity TE Connectivity 8路 面板安装 直向 连接器 插座 , 公触点 CPC RECPT ASSEMBLY SIZE 11-8 |
| 分类 |
商业参数
| 交货时间 | 49 Days | 商标名 | CPC Series 2 |
| 子类别 | Connector Circular | 产品类别 | Standard Circular Connector |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 合规性 | No | 抗辐射加固 | No |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | :250V | 工作电压 | :250V |
| 通道数量 | 8 | 最大额定电流 | :7.5A |
| 绝缘电阻 | :5000Mohm | ||
机械参数
| 颜色 | Black | 深度 | 28.58 mm |
| 高度 | 28.58 mm | 密封型 | No |
| 重量 | 0.004 | 包装方式 | Bulk |
| 出线方向 | No | 外壳尺寸 | 11 |
| 方向 | Keyed | 外壳样式 | Receptacle |
| 端接方式 | Crimp | 螺纹尺寸 | 5/8 - 24 UNEF-2A |
| 触点形式 | 8Signal | 触点尺寸 | 20 |
| 触头类型 | Crimp | 外壳颜色 | Black |
| 安装类型 | Panel Mount | 行程角度 | Straight |
| 连接器类型 | Receptacle for Male Contacts | 紧固类型 | Threaded |
| 安装样式 | Panel | 连接器样式 | Receptacle |
| 插入角度 | :11-8 | 本体材料 | :Thermoplastic |
| 面板厚度 | 0.125" | 壳体材料 | Thermoplastic |
| 总长度 | 20.55 mm | 面板安装类型 | Square Flange |
| 主要材料 | CircularPlasticConnector | 端接样式 | Wire |
| 第一触头极性 | Male | 连接器颜色 | :Black |
| 配接方向 | Keyed | 触点数 | 8 |
| 面板开孔形状 | :21.5mm | 接触件尾部长度 | 20D |
| 绝缘直径 | 1.73 [0.068] | 位数 | 8 |
| 外壳尺寸-插件 | All Plastic | 安装孔直径 | 3.18 [.125] |
| 外壳材料及表面处理 | Thermoplastic | 第一连接器安装类型 | :Panel |
| 第二连接器安装特性 | Standard | 外壳尺寸-插入件（转换至） | 11-8 |
产品信息
| 备注 | Contacts Not Provided | 类型 | CPC |
| 连接器性别 | RCP | 系列 | Series 2 |
| 预加载 | No | 排列方式 | 11-8 |
| 制造商全称 | Series2 | 产品子类型 | Connector |
| 射频系列/标准 | 205841 | 其他规格 | Without |
| 应用细节 | Commercial | 适用产品/相关产品 | Pin Contacts |
环境参数
| 工作温度 | :105°C | ||
文档与媒体
相关型号
66506-3
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Standard Cable Connectors CONN PIN 20-24AWG GOLD CRIMP AMPLIMITE HDP-20 pin crimp contact 20 DF Standard Circular Contacts CRIMP PIN 24-20 Reel of 10000 Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)PinWire Termination Type = CrimpWire Insulation Diameter = 1.52 mmSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub CONTACT, PIN, CRIMP CONTACT, CRIMP, PIN, 24-20AWG, REEL CONTACT,PIN,HDP-20,CRIMP,1.27-1.52MM TE Connectivity AMPLIMITE HDP-20系列 尺寸20触点 公 压接 信号 D-sub 连接器触点, 镀金镀镍 触点, 24 → 20 AWG 20 DF PIN
66506-2
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Standard Cable Connectors CONTACT PIN 20-24AWG CRIMP GOLD Standard Circular Connector PIN CONTACT 20 DF PIN 24-20 AWG 50 AU Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)PinWire Termination Type = CrimpWire Insulation Diameter = 1.27 - 1.52 mmSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub PIN CONTACT 20 DF
2-66507-8
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip D-Sub Contacts 20DF PIN 28-24 BR/AU Standard Cable Connectors CONN PIN 28-24AWG 50GOLD Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)PinWire Termination Type = CrimpWire Insulation Diameter = .76 - 1.02 mmSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub HD 20 CONT,AU PLTD
207489-1
te connectivity / amp

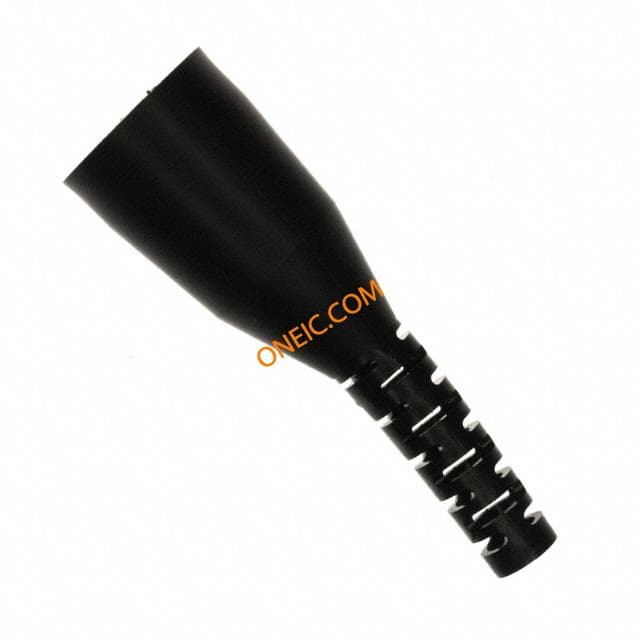

Connector Accessories CPC Connector Boot Thermoplastic Black CPC Accessories CONN BOOT SEAL SIZE 11 FLEXIBLE Cable Boots FLEXIBLE CBL BOOT 11 Connector Accessories CPC Connector Boot Thermoplastic Black Product Highlights:BootShell Size = 11Cable Grip Range = 3.81 - 6.35 mmSearch Keywords:Circular Plastic, Metal Shell CPC, cabled power, Lighting Interconnection, input/output, box to box, CABLE BOOT, FLEXIBLE, SIZE 11 CPCFLEXIBLECABLEBOOT,SZ.11 FLEXIBLE CABLE BOOT, SIZE 11
207490-1
te connectivity / amp

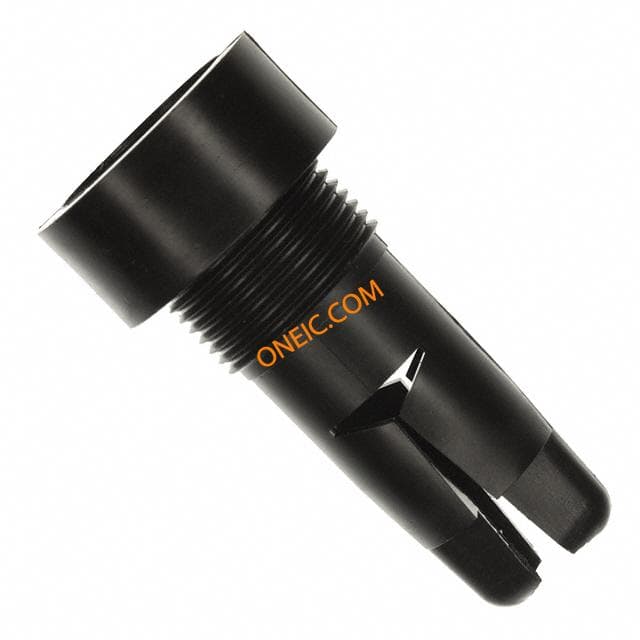

Cable Accessories Grip Thermoplastic Black CPC Accessories CONN CABLE GRIP CPC 3.81-6.35MM Cable grip size 11 CPC Standard Circular Connector INTERNAL CBL GRIP 11 Cable Accessories Grip Thermoplastic Black Product Highlights:Cable GripShell Size = 11Cable Grip Range = 3.81 - 6.35 mmSearch Keywords:Circular Plastic, Metal Shell CPC, cabled power, Lighting Interconnection, input/output, box to box, CONNECTOR CABLE GRIP, CIRCULAR CPCINTERNALCABLEGRIP,SZ.11 Cable Grip, size 11 3.81...6.35 mm, 207490-1, TE Connectivity TE Connectivity 电缆夹 CABLE GRIPPER, SIZE 11
208800-1
te connectivity / amp

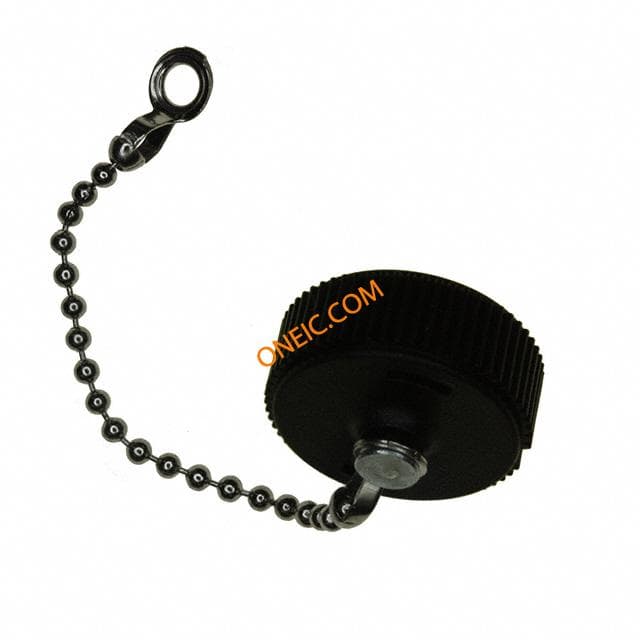

Connector Accessories Sealing Cap Thermoplastic Black CPC Accessories CONN CAP SEAL SIZE11 METAL CHAIN Dust cap with metal chain,Size 11 Standard Circular Connector SLG CAP METAL 11 Connector Accessories Sealing Cap Thermoplastic Black Product Highlights:Sealing CapShell Size = 11Metal Bead Chain Cap To Flange AttachmentSearch Keywords:Circular Plastic, Metal Shell CPC, cabled power, Lighting Interconnection, input/output, box to box, SEALING CAP, CHAIN CPCSEALINGCAP(FORRECEPT.ONLY);W/BEADEDCHAIN;SHELLSZ.11,FORSERIES1&2 Protective cap CPC, size 11, 208800-1, TE Connectivity TE Connectivity CPC 系列 防尘盖, 尺寸11 SEALING CAP ASSY,SZ 11,CPC
